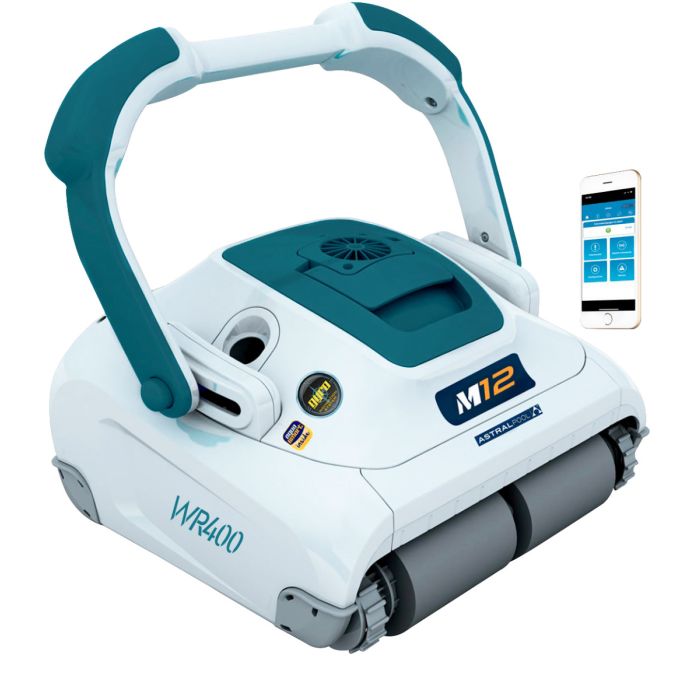

Astralpool M12 Cleaner Robot M12
We present the new Astralpool M12 electric robot, considered as the reference robot for pool cleaning and maintenance. Equipped with the latest generation technology. Cleaning of floor, walls and waterline, for pools up to 100 m². In addition, with the new Astralpool RC application, your cell phone will become a remote control that will allow you to: control and program the robot.
Manuals
Manual Astralpool M12
Catalog M Series Astralpool
Video
Astralpool M12 Pool Cleaner Robot
The new pool robot from Astralpool with mobile APP
New Exclusive 2019 Astralpool for floor and wall cleaning in pools up to 15 meters
Electric robot for optimal cleaning and maintenance of pools with 3 different cleaning cycles and equipped with all the latest technology.
It is supplied with a guided system AquaSmart which ensures that it travels over the majority of the pool surface both on the floor and walls maximizing cleaning efficiency with an extra oscillating brush.
Includes the electronic system Gyro electronic system to prevent the 18 meters of floating cable from deterioration due to possible knots that may occur during cleaning cycles and to further optimize the performance of this robot model.
Properly cleans floors, walls and waterline of pools up to 100 m² with high adherence PVA brushes.
It is powered by two traction motors and extra oscillating brush.
Electric pool cleaner with double cartridge filtration system removable from the top with 3D ultrafine filtration.
Main benefits:
- Efficiency in the surface to be cleaned.
- Programmed turning patterns to avoid cable entanglement.
- Created to improve robot navigation and maximize efficiency, Aquatron has launched the new GYRO System. intelligent algorithm.
- Located in the robot's management circuitry GYRO has the functions similar to an electric gyroscope like the latest mobile devices.
Electric Robot Equipped with DUAL PLATFORM + power + efficiency + reliability.
The Dual Platform is an innovative system that unifies in the same block a suction motor with two traction motors, to replace the classic traction system with belts, thus extending the life of the robot and facilitating the tasks of care and maintenance of the equipment.
What is the AquaSmart System
Traditional pool cleaners clean the pool by tracking the surface randomly and without any working pattern. With the introduction of the Aquasmart cleaning system, pool cleaners are able to parameterize and memorize the pool surface. by means of a mathematical algorithm, optimizing the operation and guaranteeing the brushing of the pool surface.
What is the Gyro System
Gyro is an intelligent algorithm created by Aquatron to improve robot navigation and maximize its efficiency. The GYRO technology determines if the robot is blocked on an obstacle, it can detect a steep slope and increase the suction speed and adjusts the speed of travel, it also allows the measurement of the deviation on flat or inclined bottom and recalculate it.
Advantages
- More efficient cleaning
- Improved power transmission.
- More efficient oscillating brush.
- More durability: no drive belts and improved motor seals.
- Improved capabilities: double traction motor + Gyro system.
- Easier maintenance tasks.
- Extends the life of your robot.
- Can work with external programmer not included.
Efficiency and performance, high-tech design to provide high reliability and durability.
Advantages of the Top Access Cleaning System
- The new Astralpool M12 filter cleaner has the TOP ACCES - Easy Open system, a large basket with two handles for easy and convenient cleaning.
- Top Access cleaning system: Easy cleaning thanks to its manipulation through the top of the robot, cartridge filter that will be able to clean it in a much easier way without coming into contact with dirt.
- It incorporates a 3D ultrafine double cartridge filter with three-dimensional fabric. that traps the smallest particles, with a retention level up to 4 times higher.
Application APP Astralpool RC
How does the Astralpool M12 pool cleaner mobile app work?
In addition, with the new Astralpool RC app and through the connection Bluetoothconnection, available on the App Store and Google Play, your cell phone will become a remote control that will allow you to: control the robot, set the start time, program different cleaning cycles, define the shape of the pool, receive alarms such as if the robot's filter is full, or consult relevant information about the cleaner's status, such as operating hours, voltage, current, etc.
*It is not possible to guarantee the correct operation of the equipment both on the bottom and on the walls if the pH level is not correct, if there is slime or algae, or if the filters are clogged by excessive dust, and if the pool has not been thoroughly cleaned beforehand, or if there are irregular surfaces on the walls such as steps or ribs*.
Warranty information
2-year warranty for motors, transformer and cable according to your conditions + 1 additional year from Piscinas Ferromar.
Comparison of Astralpool Pool Cleaner Range
*Scroll horizontally to view the complete table.
 |
 |
 |
 |
|
 |
 |
 |
 |
|
| Code | 70652 | 70650 | 70584 | 70586 |
| Background/Half-round | Yes | Yes | Yes | Yes |
| Walls | No | Yes | Yes | Yes |
| Waterline | No | Yes | Yes | Yes |
| Cleaning cycle (h) | 1,5/h | 2/h | 2,5/h | 1,5/2/2,5/h |
| Aquasmart | Yes | Yes | Yes | Yes |
| Gyro navigation system | Yes | Yes | Yes | Yes |
| Possibility of external programmer | Yes | Yes | Yes | Yes |
| Pool length (m) | 8 | 10 | 12 | 15 |
| Obstacle detection | Yes | Yes | Yes | Yes |
| Floating cable length | 16m | 16m | 18m | 18m |
| Swivel | Yes (electronic) | Yes (electronic) | Yes (electronic) | Yes (electronic) |
| Transport Trolley | No | No | YES | Yes |
| Suction flow rate | 22 m3/h | 22 m3/h | 22 m3/h | 22 m3/h |
| Filter Type | Top access - Ultrafine 3D | Top access - Ultrafine 3D | Top access - Ultrafine 3D | Top access - Ultrafine 3D |
| Lower brushes | Central rotating bottom | Lower central rotating | Tilting central lower | Tilting central lower |
| Adjustable suction nozzle | Yes | Yes | Yes | Yes |
| Robot weight without filters (kg) | 6.4 kg | 6.4 kg | 8 kg | 8 kg |
| Engine block | Dual Platform 1+1 | Dual Platform 1+1 | Dual Platform 2+1 | Dual Platform 2+1 |
| Traction motor | 24V DC | 24V DC | 24V DC | 24V DC |
| Suction motor | 24V DC | 24V DC | 24V DC | 24V DC |
| Brushes | Wheels (PVA) | Wheels (PVA) | Yes (PVA) | Yes (PVA) |
| Power supply | Basic SPS | Basic SPS | Basic SPS | SPS APP |
| Electrical specifications | 100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
| Warranty | 2 years | 3 years | 3 years | 3 years |
| Price | 599 € | 749 € | 999 € | 1390 € |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
-
