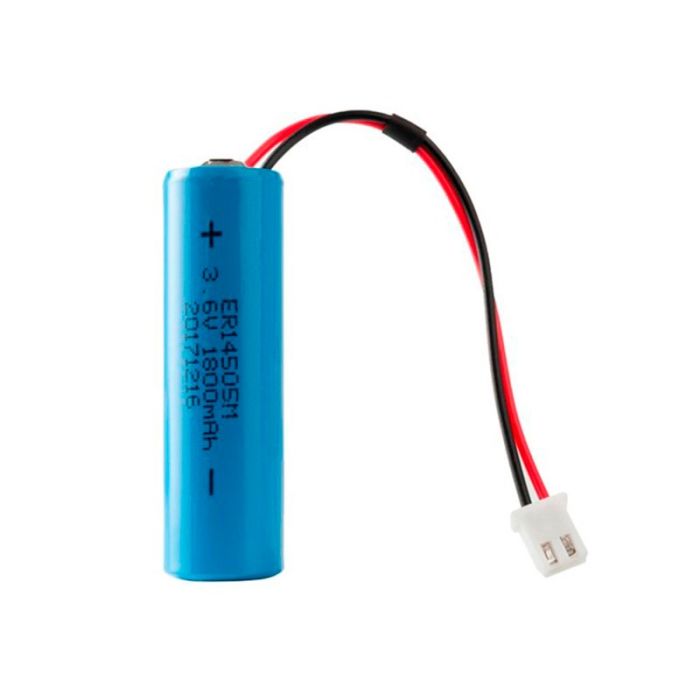

Blue Connect lithium battery refill

Manuals

BlueFit50 Manual

How to replace the Blue Connect battery?

• In "Parameters" > "Blue Connect", click on "Battery replacement".
• Remove the device from the water, remove the rubber ring and the rubber cap and place Blue Connect in the storage plug.

• Dry it and start the procedure in a dry and clean place.
• Remove the adhesive tape and unscrew the top of the device. This is a left-hand thread. Unscrew clockwise. Remove the gasket and discard it.

• Disconnect the white connector by pulling the red and black wire. The battery is at the other end of the cable. Press the plastic rod to release the battery and remove it by pulling on the cable.

• Take the new battery and place it in the bottom of the cavity until it is locked. Then connect the connector.

• Place the new gasket supplied with the battery into the thread on the top of the unit. Close the top. This is a left-hand thread. Screw it counterclockwise.

• Replace the ring. Then put the rubber cap back on and put Blue Connect back in the water.


Warranty information

1 year warranty according to manufacturer's conditions.
