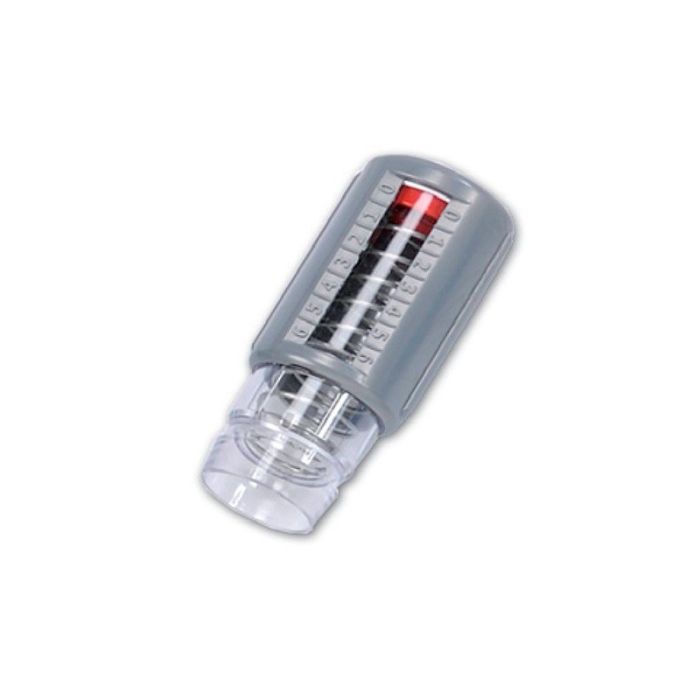

Flow meter Zodiac W70335P

Flow meter Zodiac W70335P

Perform a flow test to adjust the suction needed to operate the cleaner with the help of this flow meter.

Optimize the suction capacity and performance of your Zodiac cleaner.

Compatible with all Zodiac suction cleaners: T3, T5 Duo, Manta II, MX8, Super G, X7 Quattro, Zoom, etc.

Observe the scale of values on the meter and the area where the red indicator is located to determine the actions to be taken. Listed below are some common recommendations for each case (refer to your cleaner's instruction manual for more information):

• Ideal Zone (3): The red indicator is at level 3, indicating that the flow rate is perfect for the automatic pool cleaner to operate properly.
• Lower range (0-2): The red indicator is below level 3.
  • • Check and clean the filters and skimmer baskets, filtration pump, etc.
    • If you have a flow control valve, increase the flow rate.
    • Increase the flow rate by closing the skimmer valve if the cleaner is connected to the cleaner intake or by closing the cleaner intake valve if the cleaner is connected to a skimmer, until the indicator on the testing device is in the ideal zone.
• Upper range (4-6): The red indicator is above level 3.
• • • If you have a flow control valve, lower the flow rate.
    • Reduce the flow rate by opening the skimmer valve if the cleaner is connected to the cleaner intake or by opening the cleaner intake valve if the cleaner is connected to the skimmer, until the gauge indicator is in the ideal zone.
    • Open the sump slightly to reduce the flow a little more.

Compatible with the following robots Zodiac cleaners:
