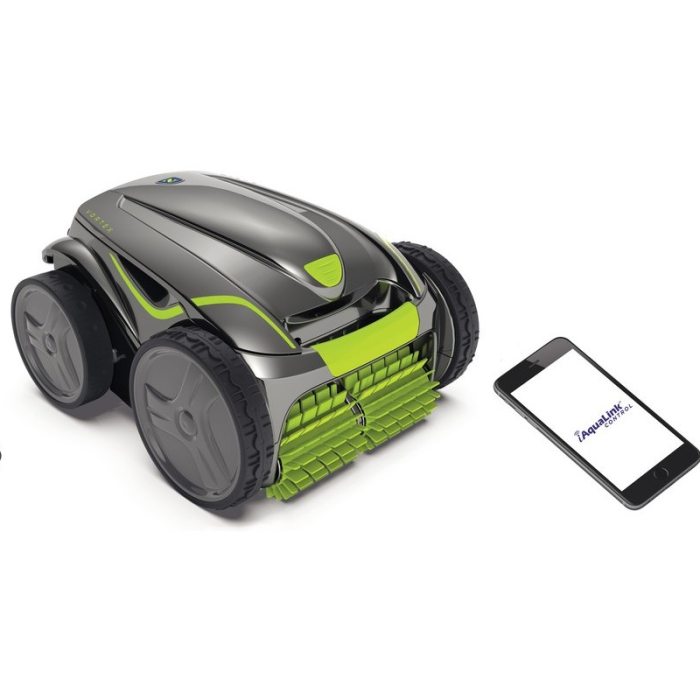

Cleaner Zodiac GV 5480 IQ

Cleaner Zodiac GV 5480 IQ

Patented cyclonic suction system to clean all areas of the pool much more efficiently.

Control the pool cleaner from your smartphone or tablet using the iAquaLink Control app.
Ideal for cleaning private inground pools and above ground pools with rigid walls up to 12 x 6 m.

Pool Types:
Shapes: Rectangular, oval and free-form.
Backgrounds: Flat, gentle slope, compound slope, diamond point.
Liners: Gresite, liner, polyester hull, reinforced PVC, painted concrete.
Pool size: up to 12 x 6 m.

Accessories included:

Transport trolley.
Fine waste filter.
Control box.
Swivel.
Free iAquaLink Control application.

Optional accessories, not included:

Very fine debris filter 60 μ.
Additional 100 μ fine debris filter.
Coarse residue filter 200 μ.
Protective cover.

General features Zodiac GV 5480 IQ cleaner

Cleaning zone: Bottom / walls / water line.
Number / Duration of cleaning cycles: Multiple from 0h30 to 3h30: Bottom only - Bottom / walls / water line - Water line only.
Timer: Yes, 7 days.
Power source: Autonomous, connected to 230 V before transformer.
Displacement: Preprogrammed.
Traction system: 4 wheel drive, 2 motors.
Transmission: Gears.
Brushes: Yes.
Lift System: Yes.
Filter full indicator: Yes.
Remote control: Yes, Remote control mode (with app).
Security: Beach system, automatic stop out of water, electronic motor protection.
Type of filter / access: Rigid filter with access from the top of the cleaner.

Technical Characteristics Zodiac GV 5480 IQ Cleaners

Number of motors: 3.
Control system supply voltage: 200-240 VAC ; 50 / 60 Hz.
Power supply voltage of the cleaner: 30 VDC.
Absorbed power: 150 W.
Cable length: 18 m with Swivel.
Dimensions of the cleaner (L x W x H): 43 x 48 x 27 cm.
Packaging dimensions (L x W x H): 56 x 56 x 56 x 46 cm.
Weight of the cleaner: 9.5 kg.
Weight with packaging: 21.1 kg.
Filtering surface / Filtration level: 1180 cm² / 100 μ.
Filter capacity: 5 L.
Cleaning cover: 24,5 cm.
Warranty: 2 years.

Warranty information

3 years manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.

*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
