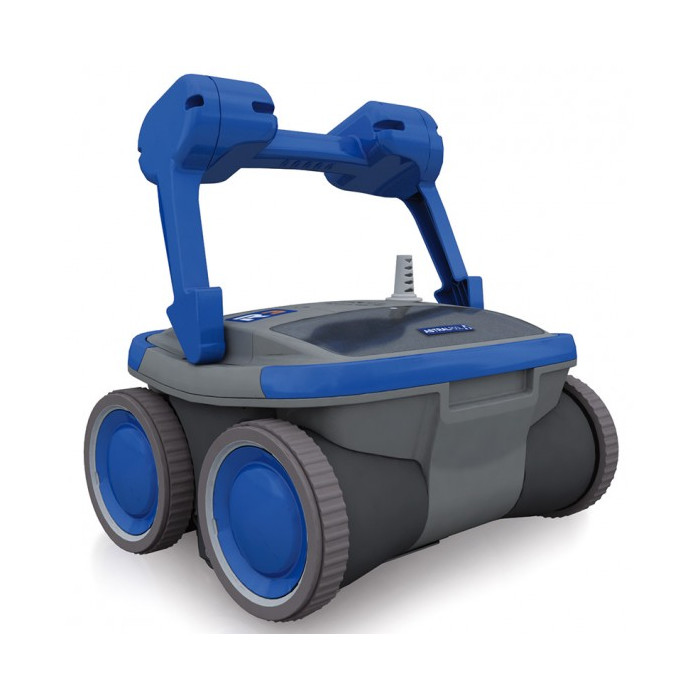

AstralPool R3 pool cleaner
4x4 robotic pool cleaner for cleaning the bottom of residential pools up to 10 x 5 meters.elegant and ergonomic design, light weight and top access filters with transparent covers that allow you to easily see when it is necessary to clean them. Cleaning cycle of 1.5 hours.
Incorporates 16 meters of cable with mechanical anti-tangle system.
Manuals
AstralPool R3 pool cleaner technical sheet
Video
Comparison of AstralPool Pool Cleaner Range
*Scroll horizontally to view the full table
 |
 |
 |
 |
|
 |
R3 |  |
R5 | |
| Code | 70652 | 66666 | 70650 | 67981 |
| Depth/Half-round | Yes | Yes | Yes | Yes |
| Walls | No | No | Yes | Yes |
| Waterline | No | No | Yes | Yes |
| Cleaning cycle (h) | 1,5/h | 1,5/h | 2/h | 2/h |
| Aquasmart | Yes | Yes | Yes | Yes |
| Gyro navigation system | Yes | Yes | Yes | Yes |
| Possibility of external programmer | Yes | Yes | Yes | Yes |
| Pool length (m) | 8 | 8 | 10 | 10 |
| Obstacle detection | Yes | Yes | Yes | Yes |
| Floating cable length | 16m | 16m | 16m | 16m |
| Swivel | Yes (electronic) | Yes (mechanical) | Yes (electronic) | Yes (mechanical) |
| Transport Trolley | No | No | No | No |
| Suction flow rate | 22 m3/h | 22 m3/h | 22 m3/h | 22 m3/h |
| Filter Type | Top access - easy view 3D | Top access - easy view 3D | Top access - easy view 3D | Top access - easy view 3D |
| Rotary brushes | Lower central | Lower central | Lower central | Lower central |
| Adjustable suction nozzle | Yes | Yes | Yes | Yes |
| Robot weight without filters (kg) | 6.3 kg | 6.3 kg | 6.3 kg | 6.3 kg |
| Motor block | Dual Platform 1+1 | Dual Platform 1+1 | Dual Platform 1+1 | Dual Platform 1+1 |
| Traction motor | 24V DC | 24V DC | 24V DC | 24V DC |
| Suction motor | 24V DC | 24V DC | 24V DC | 24V DC |
| Four-wheel drive 4WD | Yes | Yes | Yes | Yes |
| Wheels | Yes (PVA) | Yes (PVA) | Yes (PVA) | Yes (PVA) |
| Power supply | Basic SPS | Basic SPS | Basic SPS | Basic SPS |
| Electrical specifications | 100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
| Warranty | 2 years | 2 years | 3 years | 2 years |
| Price | 599 € | 699 € | 749 € | 799 € |
Features
- Standard filter. Includes fine filters as standard for greater particle retention.
- Easy view. With transparent windows that allow easy viewing of the accumulated dirt.
- Bottom rotating brush. Extra brushing for more active cleaning of the pool surface.
- Easy open. Easy access to the filters from the top of the robot.
- Clean hands. No need to come into contact with dirt to clean the filter.
- PVA wheels. Maximum quality and optimum adherence for your 4WD traction.
- Height adjustable suction nozzles. Maximum suction in all types of coatings.
- Mechanical swivel. System that avoids twisting and tangling of the cable.
- Gyro technology. New intelligent navigation system that guarantees the total cleaning of the pool.
Warranty information
2-year manufacturer's warranty on motors, transformer and cable according to your conditions.
*The correct operation of the equipment cannot be guaranteed both on the bottom and on the walls if the pH level is not correct, if there is slime or algae or if the filters are clogged by excessive dust, and if the tank has not been previously completely cleaned, or if there are irregular surfaces on the walls such as steps or ribs*.
-
