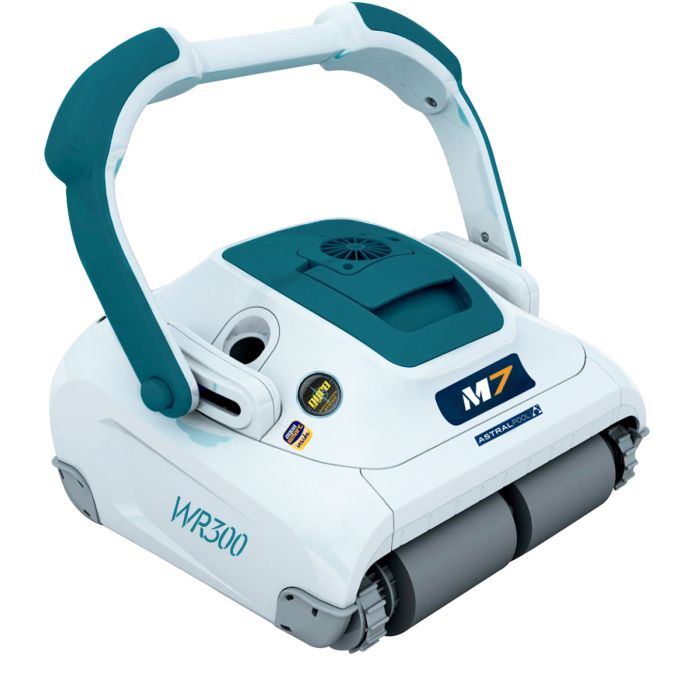

Astralpool M7 Robot Cleaner
New Astralpool M7 electric robot for optimal cleaning and maintenance of pools in 2-hour cleaning cycles and equipped with all the latest technology. Floor and wall cleaning, for pools up to 80 m².
Manuals
Manual Astralpool M7
Catalog M Series Astralpool
Video
Astralpool M7 pool cleaner
New Exclusive Astralpool
For cleaning the floor, walls and waterline in swimming pools of up to 12 meters
Electric robot for optimal cleaning and maintenance of pools in a cleaning cycle of 2.5 hours and equipped with all the latest technology.
Supplied with guided system AquaSmart which ensures that it travels over the majority of the pool surface both on the floor and walls maximizing cleaning efficiency with an extra oscillating brush.
Includes the electronic system Gyro electronic system to prevent the 18 meters of floating cable from deterioration due to possible knots that may occur during cleaning cycles and to further optimize the performance of this robot model.
Properly cleans floors, walls and waterline of pools up to 80 m² with high adherence PVA brushes.
It is powered by two powerful traction motors and an extra oscillating brush.
Electric pool cleaner with filtration system by means of double removable cartridge with 3D ultrafine filtration.
Main benefits:
- Efficiency on the surface to be cleaned.
- Programmed turning patterns to avoid cable entanglement.
- Created to improve the robot's navigation and maximize its efficiency, Aquatron has launched GYRO System the new intelligent algorithm.
- Located in the robot's management circuitry GYRO has the functions similar to an electrical gyroscope like the latest mobile devices.
Electric Robot Equipped with DUAL PLATFORM + power + efficiency + reliability
The Dual Platform is an innovative system that unifies in the same block a suction motor with two traction motors, to replace the classic traction system with belts, thus extending the life of the robot and facilitating the tasks of care and maintenance of the equipment.
What is the AquaSmart System
Traditional pool cleaners clean the pool by tracking the surface randomly and without any working pattern. With the introduction of the Aquasmart cleaning system, the cleaners are capable of parameterize and memorize the pool surface. by means of a mathematical algorithm, optimizing the operation and guaranteeing the brushing of the pool surface.
What is the Gyro System
Gyro is an intelligent algorithm created by Aquatron for improve robot navigation and maximize its efficiency. The GYRO technology determines if the robot is blocked on an obstacle, it can detect a steep slope and increase the suction speed and adjusts the speed of travel, it also allows the measurement of the deviation on flat or inclined bottom and recalculate it.
Advantages
- More efficient cleaning
- Improved power transmission.
- More efficient oscillating brush.
- More durability: no drive belts and improved motor seals.
- Improved capabilities: double traction motor + Gyro system.
- Easier maintenance tasks.
- Extends the life of your robot.
- Can work with external programmer not included.
Efficiency and performance, high-tech design to provide high reliability and durability.
Advantages of the Top Access Cleaning System
- The new Astralpool M7 filter cleaner has the TOP ACCES - Easy Open system, a large basket with two handles for easy and convenient cleaning.
- Top Access cleaning system: Easy cleaning thanks to its manipulation through the top of the robot, cartridge filter that will be able to clean it in a much easier way without coming into contact with dirt.
- It incorporates a 3D ultrafine double cartridge filter with three-dimensional fabric. that traps the smallest particles, with a retention level up to 4 times higher.
*The correct operation of the equipment cannot be guaranteed both at the bottom and on the walls if the pH level is not correct, if there is slime or algae or if the filters are clogged by excess dust, and if the tank has not been thoroughly cleaned beforehand, or if there are irregular surfaces on the walls such as steps or ribs*.
Warranty information
2 years warranty for motors, transformer and cable according to your conditions + 1 additional year from Piscinas Ferromar.
Comparison of Astralpool Pool Cleaner Range
*Scroll horizontally to view the complete table.
 |
 |
 |
 |
|
 |
 |
 |
 |
|
| Code | 70652 | 70650 | 70584 | 70586 |
| Background/Half-round | Yes | Yes | Yes | Yes |
| Walls | No | Yes | Yes | Yes |
| Waterline | No | Yes | Yes | Yes |
| Cleaning cycle (h) | 1,5/h | 2/h | 2,5/h | 1,5/2/2,5/h |
| Aquasmart | Yes | Yes | Yes | Yes |
| Gyro navigation system | Yes | Yes | Yes | Yes |
| Possibility of external programmer | Yes | Yes | Yes | Yes |
| Pool length (m) | 8 | 10 | 12 | 15 |
| Obstacle detection | Yes | Yes | Yes | Yes |
| Floating cable length | 16m | 16m | 18m | 18m |
| Swivel | Yes (electronic) | Yes (electronic) | Yes (electronic) | Yes (electronic) |
| Transport Trolley | No | No | YES | Yes |
| Suction flow rate | 22 m3/h | 22 m3/h | 22 m3/h | 22 m3/h |
| Filter Type | Top access - Ultrafine 3D | Top access - Ultrafine 3D | Top access - Ultrafine 3D | Top access - Ultrafine 3D |
| Lower brush | Bottom central rotating | Lower central rotating | Tilting central lower | Tilting central lower |
| Adjustable suction nozzle | Yes | Yes | Yes | Yes |
| Robot weight without filters (kg) | 6.4 kg | 6.4 kg | 8 kg | 8 kg |
| Engine block | Dual Platform 1+1 | Dual Platform 1+1 | Dual Platform 2+1 | Dual Platform 2+1 |
| Traction motor | 24V DC | 24V DC | 24V DC | 24V DC |
| Suction motor | 24V DC | 24V DC | 24V DC | 24V DC |
| Brushes | Wheels (PVA) | Wheels (PVA) | Yes (PVA) | Yes (PVA) |
| Power supply | Basic SPS | Basic SPS | Basic SPS | SPS APP |
| Electrical specifications | 100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
| Warranty | 2 years | 3 years | 3 years | 3 years |
| Price | 599 € | 749 € | 999 € | 1190 € |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
-
