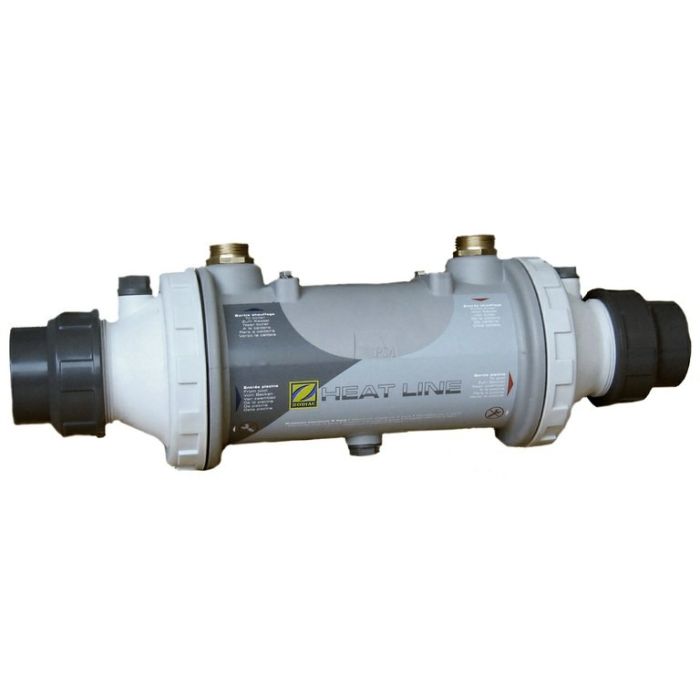

Heat Line Zodiac Heat Exchanger
€679.00
In stock
SKU
Intercambiador de calor Heat Line Zodiac
Free Shipping
Best Price Online
The Heat Line pool heat exchanger is easy to install and has several configurations to adapt to all types of installations. It is available in a basic model, without recirculation pump, and equipped for further customization of your pool and to fully adapt to your installation.
Manuals
Heat Line Zodiac Heat Exchanger Technical Data Sheet
Heat Line Zodiac Heat Exchanger
Each Heat Line model is compatible with all types of domestic heating systems (heat pump, boiler, geothermal, solar). Thus, you can use the existing heating in your home that is little used in summer, as well as renewable energies.
Heat Line features
- Compatible with all types of domestic heating systems (heat pump, boiler, geothermal and solar).
- Easy installation.
- Highly resistant.
- Available in other configurations to adapt to all types of installations (Heat Line without recirculation pump, Heat Line Basic, Heat Line Plus).
- Temperature regulation: precision thermostat with digital display.
- European manufacture.
- Outdoor, indoor or covered pools.
- In-ground, semi in-ground, above-ground, private or public pools.
- Air volume from 50 to 200 m3 (private outdoor pool, soft zone, with thermal blanket, from April 15 to October 15).
- Warranty 2 years.
| Technical characteristics | Heat Line 20 | Heat Line 40 | Heat Line 70 |
|---|---|---|---|
| Basic model | W49NT20 | W49NT40 | W49NT70 |
| Max. volume m3* | 50 | 120 | 200 |
| Power with primary at 90°C (kW) | 20 | 40 | 70 |
| Power with primary at 60°C (kW) | 8,5 | 17 | 30 |
| Power with primary at 45°C (kW) | 4 | 8 | 14 |
| Maximum operating pressure | 2b | 2b | 2b |
| Max. permissible temperature | 90°C | 90°C | 90°C |
| Weight (kg) (Model without equipment) | 3 | 3 | 4 |
| Weight (kg) (Model without recirculation pump) | 4 | 4 | 5 |
| Connections | |||
| Climate system primary (boiler, solar) | Ø 26/34 M | Ø 26/34 M | Ø 26/34 M |
| Secondary pool | PVC Ø 63 or 50 | PVC Ø 63 or 50 | PVC Ø 63 or 50 |
| Flow rate (m3/h) | |||
| Primary climate system (boiler, solar) | 0,9 | 1,7 | 3 |
| Secondary pool | 10 | 15 | 20 |
| Head losses (mca) | |||
| Primary climate system (boiler, solar) | 0,15 | 0,2 | 0,3 |
| Secondary pool | 0,5 | 0,8 | 1 |
* Private outdoor swimming pool, soft zone, from April 15 to October 15, with thermal blanket.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
