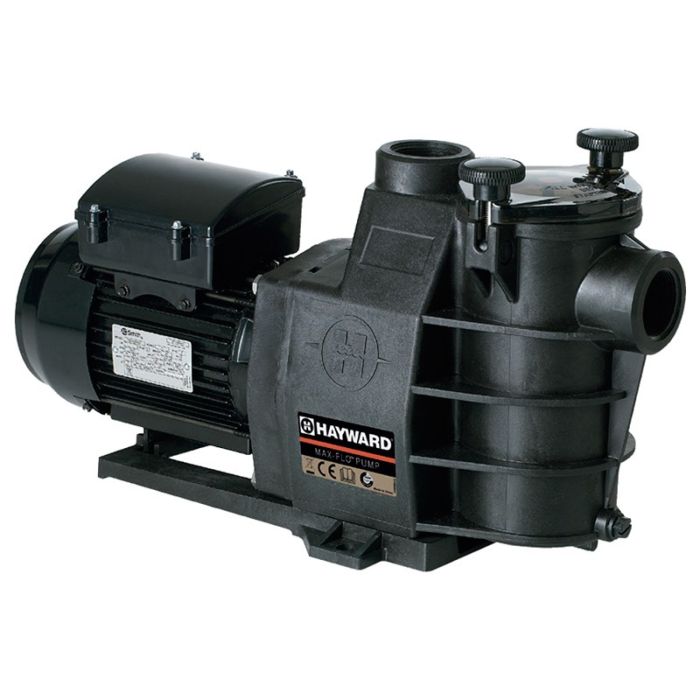

Hayward Max-Flo Pump
For the most demanding requirements, the Hayward Max Flo pump range, thanks to its technical performance and its low noise level. It combines a maximum technological performance combined with unalterable materials due to their resistance to corrosion.
This current model retains the same dimensions of intakes as the old model but has a total length greater than the old one, consult measurements if it is for replacement of a pump prior to 2018.
Manuals
User manual Hayward Max-Flo Pump
Hayward Max-Flo Pump Parts Sheet
Technical characteristics Hayward Max-Flo Pump
Hayward Max-Flo Pump
Designed for all types and sizes of pools, the Max-Flo pump is very easy to install and use.
Thanks to its technical performance and its low noise level, the Hayward Max Flo pump meets the most demanding requirements.
Technical features
- Compact design suitable for technical rooms with limited space.
- Excellent price-performance ratio.
- High resistance to chemical and salt corrosion.
- Silent: low noise level.
- Economical: low power consumption.
- Resistant and high performance motor.
- Manufactured in thermoplastic material of high resistance and durability.
- Available in single-phase or three-phase versions (IE3 efficiency level).
- Large pre-filter basket with transparent cover.
- Drain plug for easy winterizing.
- 1½" female thread connection.
Range comparison
| Code | Flow rate | Weight | |
| Max-Flo ½ hp - 230V - single phase | SP1806HW81 | 8 m3/h | 14Kg |
| Max-Flo ¾ HP - 230V - single-phase | SP1808HW111 | 11 m3/h | 14Kg |
| Max-Flo 1 HP - 230V - single phase | SP1811HW161 | 13 m3/h | 15Kg |
| Max-Flo 1,5 HP - 230V - single-phase | SP1811HW161 | 15 m3/h | 15Kg |
| Max-Flo ¾ hp - 230V - three-phase | HAY-100-1502 | 12.8 m3/h | 13Kg |
| Max-Flo 1 hp - 230V - three-phase | SP1811XW163 | 14.5 m3/h | 14Kg |
| Max-Flo 1,5 HP - 230V - three-phase | SP1816XW223 | 16.2 m3/h | 15Kg |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
-
