Innowater High Capacity Industrial Salt Chlorinator
Innowater high capacity industrial salt water chlorinators are the best option for cleaning and disinfection of public swimming pools. These pools stand out for their large volume and the large number of users they receive throughout the day, so they need the most powerful systems for the treatment of swimming pool water. Innowater has different models of high capacity industrial salt chlorinator.
Manuals
Innowater High Capacity Salt Chlorinator Industrial Data Sheet Manual High Capacity Innowater Salt Chlorinator Model SMC250/SMC300Manual High Capacity Salt Chlorinator Innowater Model SMC500
High Capacity Innowater Industrial Salt Chlorinator
Features
- High performance electrochlorinators for intensive commercial operations and high capacity (public facilities).
- High performance watertight power sources without the need for forced ventilation.
- Electronic configuration in a cabinet isolated from outside air.
- IP-65, in 316 stainless steel, highly resistant to corrosive atmospheres.
- Electronic control and configuration of the current.
- Temperature and flow control.
- Prepared for industrial control through CAN or Profibus buses.
- Extended salinity range: 500 - 35,000 ppm.
- Compact system with frame and integrated cell for easy installation.
- Methacrylate electrode cassette for easy inspection.
- Easily accessible and low maintenance cell.
- Low current density electrodes and long life: 20,000 hours.
- Includes software and electronics for optional pH control.
- Includes external control with 4-20 mA signal.
- Includes a flow switch.
Specifications
*Scroll horizontally to view the complete table.
| Model | Chlorine production g/h | Input (VAC) | Output Voltage (VDC) | Output Current (ADC) | Power Consumption (W) | PVC Pipe (mm) | Weight (Kg) | Compact System Dimension (mm) |
|---|---|---|---|---|---|---|---|---|
| SMC250 | 250 | 220 | 24 max | 50 | 1.350 | 63 | 75 | 750 x 450 x 900 |
| SMC300 | 300 | 220 | 24 max | 50 | 1.625 | 63 | 80 | 750 x 450 x 900 |
| SMC500 | 500 | 220 | 24 max | 100 | 2.540 | 75 | 100 | 1000 x 450 x 900 |
SMC250
It has a weight of 75 kilograms, 63mm PVC pipes, consumes 1,350 watts of electricity and produces 250 grams of chlorine every hour. Doesn't it sound like a great option for the disinfection of public swimming pools?
SMC300
Another high-capacity industrial salt chlorinator is the SMC300 model, which has some differences from the previous version. It has a heavier weight, 80 kg; it requires a higher power consumption, 1,350 watts, and produces more chlorine, 300 g/h.

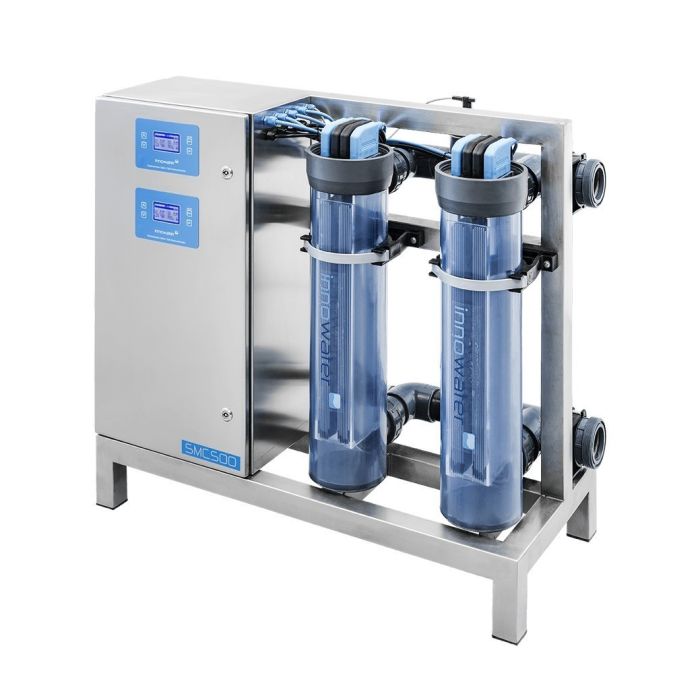

SMC500
The SMC500 salt chlorinator is perfect for disinfecting large pools, as it is equipped with the latest technology to ensure total cleanliness. This system guarantees a chlorine production of 500 g/h and has a low maintenance cell.
Dimensions
Installation diagram
Warranty Information
Warranty 2 years according to manufacturer's conditions.
-
