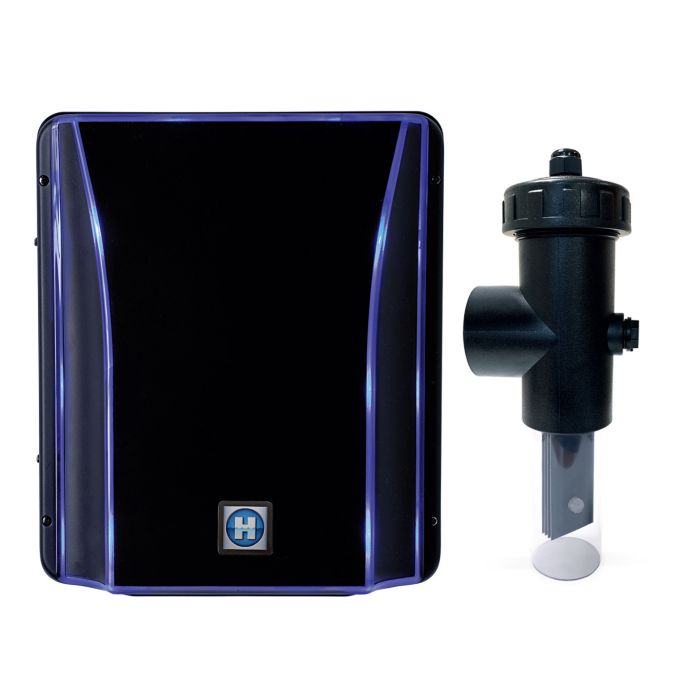

Hayward Salt & Swim Salt Chlorinator 2.0

Manuals

Catalog Hayward Salt & Swim 2.0

Manual Hayward Salt & Swim 2.0

Features of the Hayward Salt & Swim

The settings of the Salt & Swim 2.0 are intuitive and precise thanks to its LED display, the salt chlorinator changes color depending on the selected setting, even during chlorine production with or without the cover activated:

• Blue: Chlorine Production
• Green: Super chlorination activated
• Purple: Closed cover and programmable chlorine production

The cell is mounted vertically in the hydraulic circuit, at the highest point of the installation. Always in by-pass

• Wide production range: 16, 22 and 33 gr. Cl2/h
• LED panels for easy and optimal product configuration.
• Thanks to its electrolysis cell, it has a visual control of the production (with gas detector included as standard).
• Cover control to reduce chlorine production.
• Optional mechanical flow detector kit 8000 H
• Can adjust chlorine production in 5 settings: 20, 40, 60, 60, 80 and 100 %.

Comparison of Hayward Salt & Swim 2.0 Chlorinator Range

*Scroll horizontally to view the complete table.

	SASV16CEU	SASV22CEU	SASV33CEU
Production	16 g/h/cl	22 g/h/cl	33 g/h/cl
Chlorine production	5 adjustment possibilities: 20, 40, 60, 60, 80, 100 %.
Pool volume	75 m3	100 m3	150 m3
Salinity	From 3 to 100 g/L
Display	LED
Protection	IP 65
Hyperchlorination Mode	Yes	Yes	Yes
Manual Cl % regulation	Yes	Yes	Yes
Gas Detector	Yes	Yes	Yes
Reduction per deck	Yes	Yes	Yes
Alarm	Salt level / flow rate
Closed pool cover detection	Yes
Dimensions	400 x 400 x 210 mm
Weight	9 Kg	10 Kg	10 Kg
Flow detector (optional)	J-OPTION_FLOW ( optional )

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
