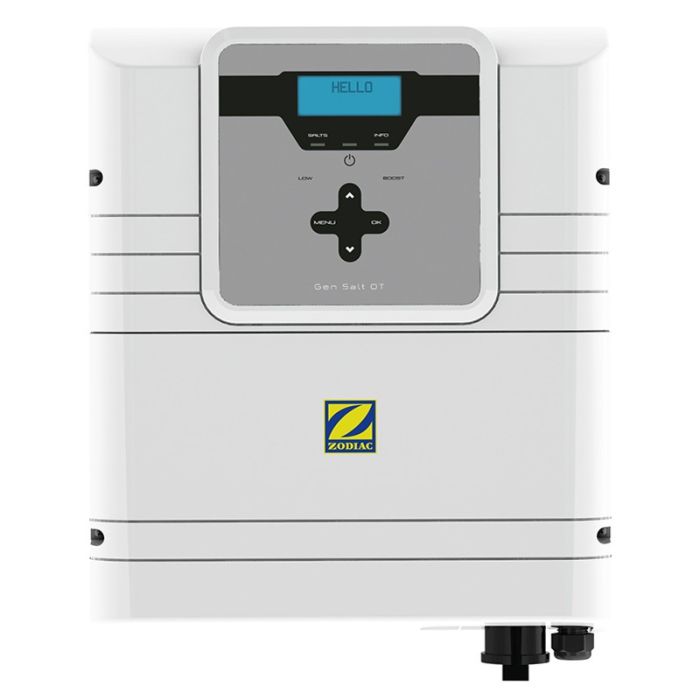

GenSalt OT Zodiac salt water chlorinator
Salt chlorinators are an automatic and efficient disinfection solution. They are easy to use and provide complete water treatment and reduced maintenance.
Cell with titanium electrodes of the latest generation that guarantee an exceptional duration of up to 7,500 hours (in good conditions of use).
Easy installation
- The GenSalt OT incorporates the patented Quick Fix system (installation kit included) that provides simple and fast installation.
- It adapts to all installations thanks to its modern and compact design. Wall mounting kit for the control unit is included.
Maintenance-free and completely safe
- Self-cleaning electrodes by polarity inversionfor a long cell life without the need for user intervention.
- Flow detector. Safety system with automatic shutdown in case of insufficient water flow in the cell.
- Lack of salt" indicator which reduces chlorine production to protect the electrode.
- Integrated programmer. Allows to define the operating time during which the chlorinator will produce chlorine.
- Additional operating modes:
- Boost mode. Allows to quickly increase the chlorine level, e.g. in case of intensive use of the pool, bad weather or at the beginning of the swimming season.
- Low Mode. Designed to reduce chlorine production when the pool is covered or when its use is limited.
- Cover Mode. Allows an automatic cover to be connected to the chlorinator to automatically reduce chlorination when the cover is closed.
For optimal bathing comfort
- To maintain good water quality, it is essential to have balanced basic parameters (pH, hardness, ...) and effective filtering adapted to the pool and its conditions of use.
- This is why we recommend combining the Zodiac GenSalt OT salt water chlorinator with the pH Link or Dual Link module for exceptional swimming comfort.
Installation service for your salt water chlorinator
Piscinas Ferromar as Zodiac ePartner offers you the possibility to contract the installation service for your salt chlorinator at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
- The production cell of the equipment must be installed on rigid pipe in its two standardized measures of 50mm and 63mm. It cannot be installed on flexible pipes. Minimum distance of 25 cm free pipe for cell installation.
- The electronic control box must be installed on the inside the technical room of the treatment plant, preserving it from possible humidity and corrosive emanations due to the storage of chemical products inside the plant.
- The client must have pool salt to dissolve in the pool in proportion to 5 Kg per m3
- Filtration pump with a minimum power of 1⁄2 HP or with the minimum required water flow rate (consult manual according to model).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user contracting the installation service read the service contracting conditions and download and complete the attached document from Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
Table of technical characteristics GenSalt OT salt chlorinator
| OT 10 | OT 18 | OT 25 | |
| Chlorine production | 10 g/h | 18 g/h | 25 g/h |
| Water volume | 40 m³ | 70 m³ | 110 m³ |
| (volume calculated for 8 h of daily filtration in a warm climate) | |||
| Technical characteristics | |||
| Maximum production | 10 g/h | 18 g/h | 25 g/h |
| Power | Max. 200 W | ||
| Rated output amperage | 2,0 A | 3,6 A | 5,0 A |
| User interface | 4-line backlit LCD display (11 languages available) | ||
| Operating mode(s) | Normal, Boost (100%) and Low (cover mode adjustable from 0 to 30%) | ||
| Clock / timer | 24 h clock / 2 chlorination bands 2 programmers for single speed filtration pumps |
||
| Polarity inversion | Yes, from 2 to 8 h (factory setting 5 h) | ||
| Recommended salt rate | 4 g/l - 3 g/l minimum | ||
| Safety | Lack of salt" indicator: reduction of production to protect the electrode. Lack of flow" indicator: automatic interruption of production when conditions are not optimal. Mechanical flow detector. |
||
| Quick Fix" cell connection diameter. | Diameter 50 or 63 mm | ||
| Minimum flow rate (necessary to purge air from the cell) |
5 m³/h | ||
| Maximum flow rate (limited by installation losses) |
18 m³/h (bypass mandatory for higher flow rates) | ||
| Maximum authorized cell pressure | 2,75 bar (KPa) | ||
| Maximum water temperature | 40ºC (104ºF) | ||
| Minimum water temperature | 5ºC | ||
| Box-cell cable length | 1,8 m | ||
| Protection rating | IP43 | ||
| Cell dimensions (L x W x H) |
16.5 x 22.5 x 12.5 cm (6.5 x 8.5 x 8.5 in.) | ||
| Control unit dimensions (L x W x H) |
32.0 x 37.0 x 12.0 cm (12.0 x 12.0 x 12.0 cm) | ||
| Power supply 50 Hz | 220-240 VAC (power cord with overmolded plug) | ||
| Cell lifetime (under good conditions of use) |
7,500 h (titanium plates, ruthenium SC6 treatment) | ||
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
