Electric pool heater Optima Elecro Technical Sheet

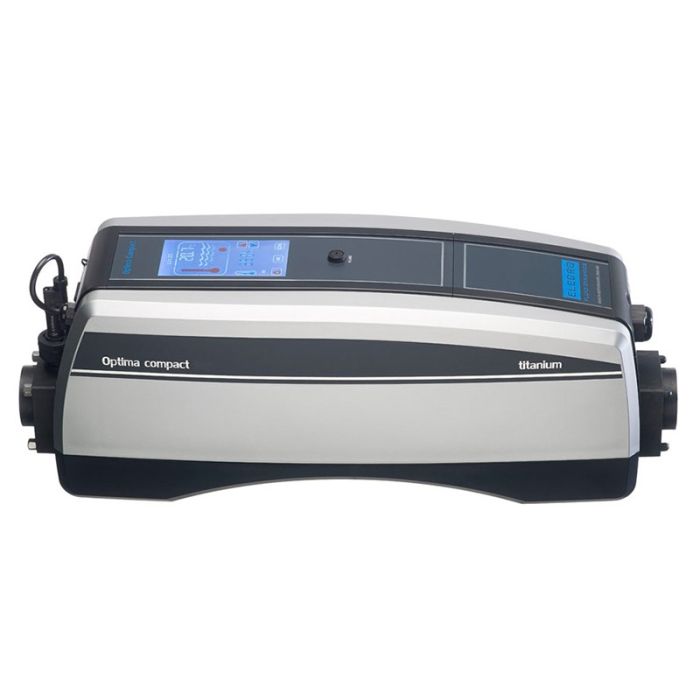

Electric pool heater Optima Elecro

Electric pool heater of the latest generation with the most advanced features, silent and efficient.

Features Optima electric pool heater

• Compact and robust design.
• Performance and reliability.
• Intelligent control panel with backlit touch screen.
• Heating priority function included.
• Operating flow rates:
  • Minimum flow rate:
    • Models from 3 to 6 kW: 1 m³/h
    • 9 to 24 kW models: 4 m³/h
  • Maximum flow rate: 17 m³/h
  • Recommended flow rate: 10 m³/h
• Titanium heating elements with cleaning and anticorrosive vortex effect (maintenance free).
• Stainless steel tubes BS 316L (EN-14432).
• Schneider Electric contactors mounted in cascade.
• Thermostat 55ºC (manual reset).
• Flow detector. Contact wire covered with a thin layer of gold and titanium shaft.
• Wiring. With high temperature, silicon sheath and stranded copper conductors.
• Gaskets. Special high temperature polymer formulation.
• Water connections. Female 1.5" BSP, with ABS adapter for 1½" pipes up to 50 mm.
• Pressure: 4 bar maximum
• Installation. Floor or wall mounting.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
