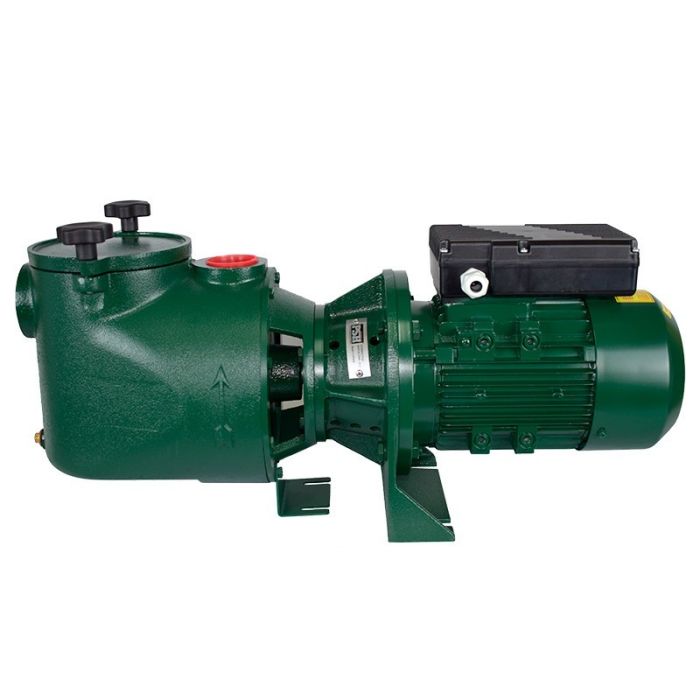

AFN PSH pump
€1,099.00
In stock
SKU
bomba-psh-afn
Free Shipping
Best Price Online
The PSH AFN pump is a pool pump with excellent resistance, thanks to the hardness and quality of the materials it is made of. Self-priming in cast iron, it is ideal for medium and large swimming pool filtration systems.
Manuals
The PSH AFN pump is a pump with high self-suction power (up to 6 mca) and is manufactured with high resistance materials with cast iron body and diffuser and AISI 316 stainless steel shaft.
Features of the PSH AFN Self-priming pump PSH AFN
- Available in power ratings from 1 HP to 3 HP, with single-phase or three-phase motors.
- High resistance to corrosion: all parts in contact with water are specially treated by long-lasting cataphoresis.
- Thermal protection included in the single-phase versions.
- Protection: IP55.
- High quality mechanical seal and bearings.
- Large volume pre-filter basket that provides better filtration quality, incorporated in the pump body.
- Single-phase: 230 V II (usual in domestic electrical installation) / Three-phase: 230/400 V III.
- Motor: 50 Hz / 2900 rpm.
- Standardized motor shaft for easy compatibility with motors from other manufacturers.
- Open turbine that provides a greater guarantee against possible obstructions.
- Cast iron body and diffuser. On request also available in bronze for pools treated with salt chlorinator or seawater.
Materials AFN Pump
- Pump body and diffuser: cast iron.
- Turbine: brass.
- Shaft: AISI 316 stainless steel.
- Mechanical seal: carbon+resin-ceramic.
- Pre-filter basket: polypropylene.
Part numbers: 1AFN3010M2V, 1AFN3010E4V, 1AFN3015M2V, 1AFN3015E4V, 1AFN3020M2V, 1AFN3020E4V, 1AFN303030E4V
*Scroll horizontally to view the complete table.
| Model | Power | Capacitor | II | III | III | Flow rate (m³/h) according to manometric height (m) | Nozzles | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CV | kW | μF | 230V A | 230V A | 400V A | 2 | 4 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | Input | Output | kg | |
| AFN-3 | 1 | 0,75 | 100/25 | 4,9 | 2,9 | 1,6 | 19,0 | 17,5 | 15,5 | 13,1 | 10,7 | 8,0 | 5,0 | 1,8 | - | 1½" | 1½" | 26,5 |
| AFN-4 | 1,5 | 1,1 | 100/30 | 7,0 | 4,0 | 2,3 | 25,0 | 23,0 | 20,7 | 18,0 | 14,8 | 11,6 | 8,0 | 4,0 | - | 1½" | 1½" | 30,5 |
| AFN-5 | 2 | 1,5 | 200/40 | 9,4 | 5,3 | 3,1 | - | 30,5 | 26,5 | 24,0 | 20,5 | 16,5 | 12,0 | 7,0 | 1,5 | 2" | 2" | 35,8 |
| AFN-7 | 3 | 2,2 | - | - | 7,6 | 4,3 | - | - | 36,0 | 35,0 | 33,0 | 30,0 | 25,0 | 19,0 | 13,0 | 2½" | 2" | 40,5 |
Warranty Information
Warranty 2 years according to manufacturer's conditions.
