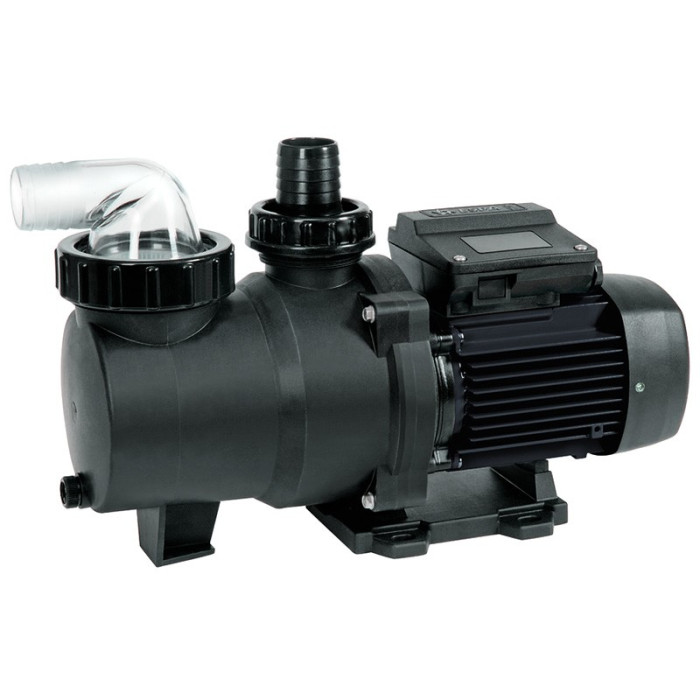

NOX 25 6M ESPA pump
€154.00
In stock
SKU
203180
Best Price Online
Single-cell centrifugal pump designed for the recirculation and filtration of water in aboveground pools. Power: 0,18 kW - 0,25 CV
Compatible with chlorinated water and salt water (up to 7 g/liter).
Manuals
Instruction Manual NOX ESPA Pump
NOX 25 6M ESPA Pump
ESPA self-priming pump designed for the recirculation and filtration of water in above ground pools, compact and robust design.
Features NOX 25 6M ESPA pump
- Compatible with chlorinated water and salt water (up to 7 g/liter).
- Supplied with suction and delivery fittings for 38 mm diameter pipe, with flexible hose connection.
- Pump body, seal support, impeller and pump foot in technopolymer.
- Power: 0,18 kW - 0,25 HP.
This model replaces the ESPA Niper 2 400 pump, with which it shares the same dimensions and performance.
Dimensions
| Model | A | B | C | D | E | F | G | H | kg |
|---|---|---|---|---|---|---|---|---|---|
| NOX 25 6M | 405 | 262 | 204 | 250 | 231 | 158 | 40 | 40/50 | 5,1 |
Hydraulic performance table
| Code | Model | I [A] |
P1 [kW] |
P2 |
c [μF] |
* Vol. pool [m3] |
l/min | 25 | 50 | 75 | 100 | 125 | 150 | |
| 1~ 230 V |
1~ 230 V |
[kW] | [HP] | m3/h | 1,5 | 3,0 | 4,5 | 6,0 | 7,5 | 9,0 | ||||
| 203180 | NOX 25 6M | 1,53 | 0,32 | 0,18 | 0,25 | 6 | 55 | mca | 9,6 | 9,1 | 8 | 6,1 | 3,8 | 0,6 |
(*) Pool volume (m3): calculated from the ideal flow rate for 8 hours of recirculation.
Operating curves at 2900 rpm
Warranty information
Warranty 2 years according to manufacturer's conditions.
