IRIS Space Pump - NOX
€217.00
In stock
Only %1 left
SKU
C-203181
Best Price Online

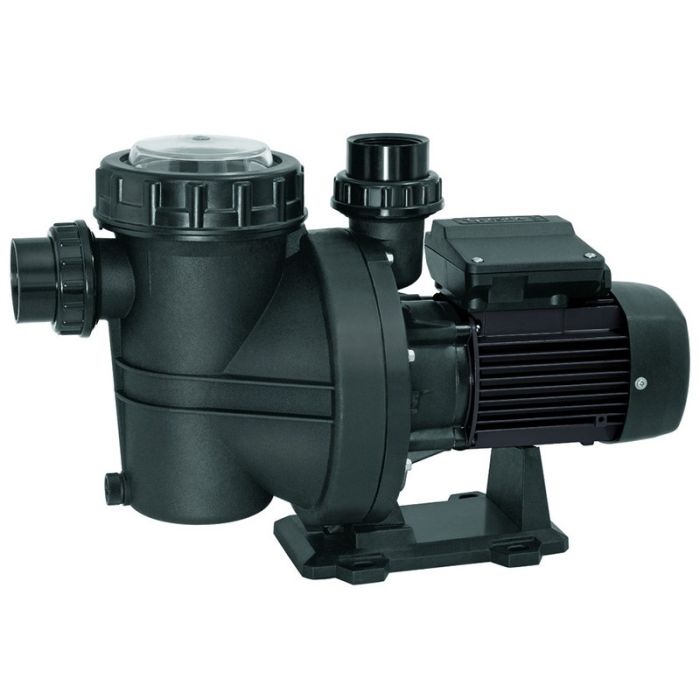

Single-cell self-priming centrifugal Espa pump (4 meters) with built-in pre-filter, silent operation.
Available in 3 models with different powers.
This model replaces the ESPA Iris pump, with which it shares the same dimensions and features.
Manuals
NOX 33 8M - NOX 50 12M - NOX 100 15M ESPA Pump Instruction Manuals
NOX 33 8M - NOX 50 12M - NOX 100 15M ESPA pump
Characteristics
- Its application is the recirculation and filtration of water in small and medium size pools.
- Compatible with chlorinated water and salt water (up to 7 g/liter).
- Connections Ø suction and discharge: fittings for gluing Ø 50 mm.
- Pump body, pump foot, impeller, seal support and diffuser in technopolymer.
- Available in 3 models with different power ratings.
- This model replaces the ESPA Iris pump, with which it shares the same dimensions and performance.
Dimensions
*Scroll horizontally to view the complete table.
| Model | A | B | C | D | E | F | G | H | I | J | K | L | kg |
| NOX 33 8M | 438,5 | 191,5 | 115 | 304 | 210 | 2¼” | 221 | 2¼” | 264 | Ø9 | 108 | Ø212 | 8,9 |
| NOX 50 12M | 438,5 | 191,5 | 115 | 304 | 210 | 2¼” | 221 | 2¼” | 264 | Ø9 | 108 | Ø212 | 10,2 |
| NOX 100 15M | 438,5 | 191,5 | 115 | 304 | 210 | 2¼” | 221 | 2¼” | 264 | Ø9 | 108 | Ø212 | 10,9 |
Hydraulic operating table
| Code | Model | I [A] |
P1 [kW] |
P2 |
c [μF] |
* Vol. pool [m3] |
l/min | 25 | 50 | 75 | 100 | 150 | 200 | 250 | 290 | |
| 1~ 230 V |
1~ 230 V |
[kW] | [HP] | m3/h | 1,5 | 3,0 | 4,5 | 6,0 | 9,0 | 12 | 15 | 17,4 | ||||
| 203181 | NOX 33 8M | 2 | 0.45 | 0,25 | 0,33 | 12 | 65 | mca | 10,2 | 9,7 | 8,6 | 7,2 | 3,2 | |||
| 203182 | NOX 50 12M | 2,8 | 0,65 | 0,37 | 0,50 | 12 | 75 | 12,3 | 11,9 | 11,3 | 10,5 | 8,1 | 4,6 | |||
| 203183 | NOX 100 15M | 3,8 | 0,85 | 0,75 | 1,00 | 12 | 85 | 13,8 | 13,3 | 13 | 12,5 | 10,8 | 8,1 | 4,8 | 1,8 | |
(*) Pool volume (m3): calculated from the ideal flow rate for 8 hours of recirculation.
Operating curves at 2900 rpm
Warranty information
Warranty 2 years according to manufacturer's conditions.
