Espa SILEN - NOX pump
€228.00
In stock
Only %1 left
SKU
C-203184
Best Price Online

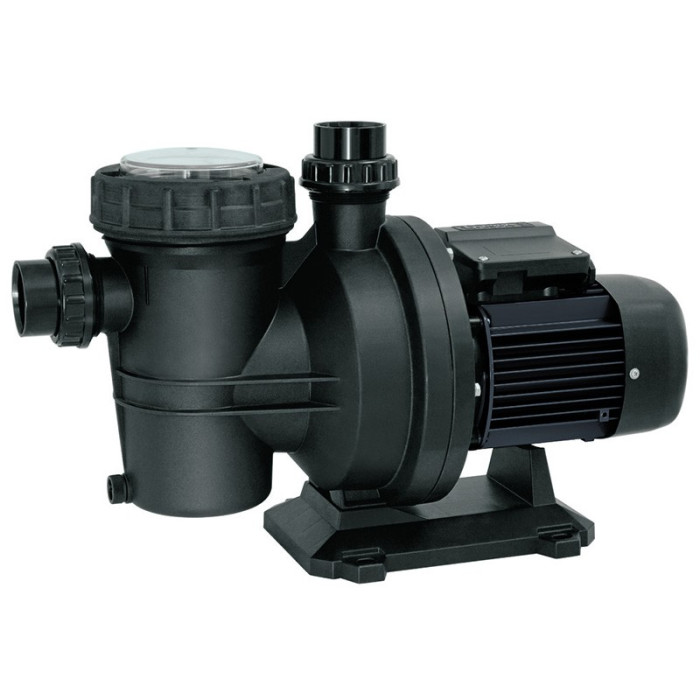

Single-cell self-priming centrifugal Espa pump (4 meters) with built-in pre-filter, silent operation.
Available in 3 models with different powers.
This model replaces the ESPA Silen pump, with which it shares the same dimensions and features.
Manuals
NOX 33 8M - NOX 50 12M - NOX 100 15M ESPA Pump Instruction Manuals
NOX 75 15M - NOX 100 18M - NOX 150 22M ESPA pump
Features
- Its application is the recirculation and filtration of water in medium and large pools.
- Compatible with chlorinated water and salt water (up to 7 g/liter).
- Inlet and outlet Ø connections: Ø 50 mm glue fittings.
- Pump body, pump foot, impeller, seal support and diffuser in technopolymer.
- Available in 3 models with different power ratings.
- This model replaces the ESPA Silen pump (old model), with which it shares the same dimensions and features.
Dimensions
*Scroll horizontally to view the complete table.
| Model | A | B | C | D | E | F | G | H | I | J | K | L | kg |
| NOX 75 15M | 495 | 211 | 170 | 225 | 2¼” | 225 | 2¼” | 308 | 159 | Ø9 | 319 | 238 | 10,2 |
| NOX 100 18M | 495 | 211 | 170 | 225 | 2¼” | 225 | 2¼” | 308 | 159 | Ø9 | 319 | 238 | 10,9 |
| NOX 150 22M | 495 | 211 | 170 | 225 | 2¼” | 225 | 2¼” | 308 | 159 | Ø9 | 319 | 238 | 13,5 |
Hydraulic operating table
| Model | I [A] |
P1 [kW] |
P2 |
c [μF] |
* Vol. pool [m3] |
l/min | 40 | 80 | 120 | 160 | 215 | 265 | 325 | 400 | Code | |
| 1~ 230 V |
1~ 230 V |
[kW] | [CV] | m3/h | 2,4 | 4,8 | 7,2 | 9,6 | 12,9 | 15,9 | 19,5 | 24 | ||||
| NOX 75 15M | 5,5 | 1,2 | 0,55 | 0,75 | 16 | 110 | mca | 15,2 | 15 | 14,3 | 13,1 | 9,9 | 6 | 203184 | ||
| NOX 100 18M | 6,0 | 1,4 | 0,75 | 1,0 | 16 | 125 | 16,9 | 16,5 | 16 | 15 | 12,9 | 10 | 5,9 | 203185 | ||
| NOX 150 22M | 7,1 | 1,6 | 1,1 | 1,5 | 25 | 150 | 18,6 | 18,2 | 17,7 | 16,9 | 15,1 | 13 | 10 | 5,1 | 203186 | |
(*) Pool volume (m3): calculated from the ideal flow rate for 8 hours of recirculation.
Operating curves at 2900 rpm
Warranty information
Warranty 2 years according to manufacturer's conditions.
