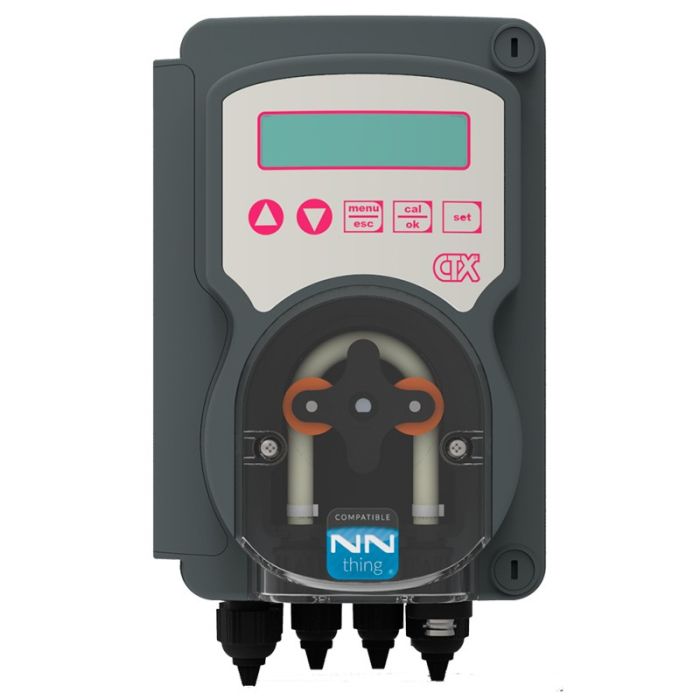

MyPool DOS pH Rx CTX peristaltic dosing pump

Manuals

MyPool DOS pH Rx CTX peristaltic dosing pump instruction manual

MyPool DOS pH Rx CTX peristaltic dosing pump

Peristaltic dosing pump proportional dosing mode to achieve the setpoint value.

Supplied with electrode (pH or ORP), electrode holder, two Ø50 x ½" collars, ½" to ⅜" threaded reduction and buffer solutions for electrode calibration.

Features Peristaltic dosing pump

• Application: injection of chemicals into the pool for water treatment.
• Simplicity and advanced technology with low acquisition and maintenance costs.
• Backlit display with 2 lines and 16 multi-language characters.
• Electrode quality test.
• Can be used as pH or ORP only by changing the programming and using the appropriate electrode.
• In pH mode, it can be used to change the pH corrector from a pH reducer to a pH increaser by simply changing a jumper on the electronics board.
• Polypropylene housing for maximum resistance to corrosive environments.
• IP65 protection.
• Also available in versions compatible with Fluidra Connect.
• Flow rate (max): 1,6 l/h
• Pressure (max): 1,5 bar
• Weight: 1,5 kg
• Power consumption: 15W
• Rotation speed: 30 RPM

Available models

• MyPool DOS pH Rx Peristaltic Dosing Pump pH Sensor - Reference 72698
• MyPool DOS pH Rx peristaltic dosing pump pH sensor compatible with Fluidra Connect - Ref. No. 72712
• Peristaltic dosing pump MyPool DOS pH Rx Sensor Redox - Ref. No. 72699
• Peristaltic dosing pump MyPool DOS pH Rx Sensor Redox compatible Fluidra Connect - Ref. No. 72711

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of 27 April.
