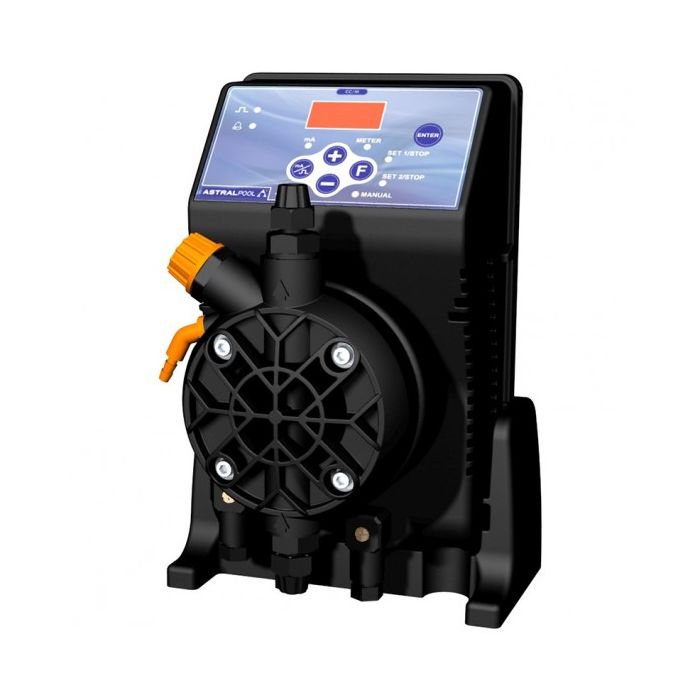

AstralPool Exactus proportional dosing pump

The impulse of the frequency index pump will be proportional to the mA signal received: "the higher the signal the greater the flow rate of the pump".
The pump can be adapted for the inverse function, the higher the signal the lower the flow rate.
The same model can be adapted for other mA (0-20mA, 4-20mA, 20-4mA).

Features

• Equipment complies with CE standards.
• IP-65 protection.
• Electrical connection 220/240 V 50/60 Hz.
• Materials in contact with liquid: polypropylene, viton and Teflon.
• Anti-acid plastic box included.
• Anti-humidity touch display.
• Built-in drain valve.
• No lubrication required, minimum maintenance.
• Installation kit included in all pumps: complete suction filter (PP-FPM viton), injection valve (PP-FPM viton), suction/impulsion pipe 2m + 2m PVC; 2m PE distribution hose.

Available in several models:

• 57164 - Exactus proportional dosing pump 5 l/h - 7 bar.
• 57165 - Exactus proportional dosing pump 5 l/h - 10 bar
• 57166 - Proportional dosing pump Exactus 10 l/h - 5 bar
• 57167 - Proportional dosing pump Exactus 20 l/h - 5 bar

Warranty information

Warranty 2 years according to manufacturer's conditions.
