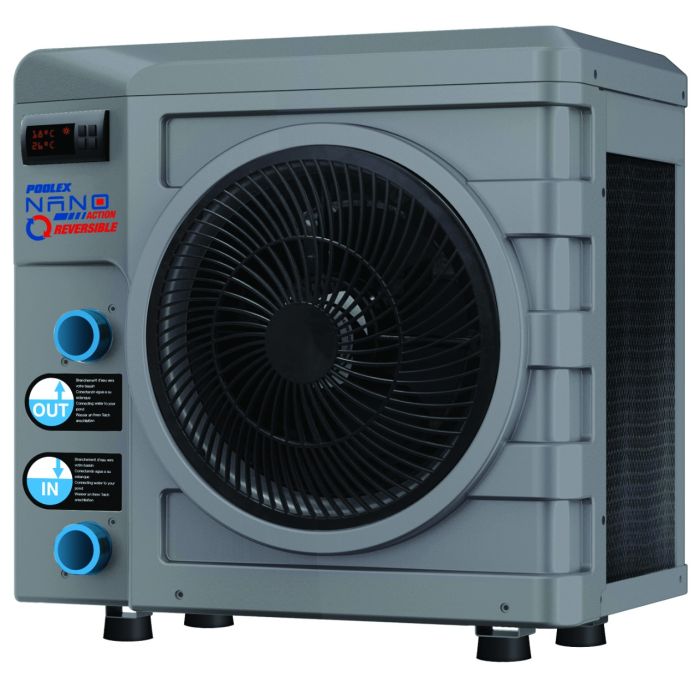

Poolex Nano Action Reversible Heat Pump
Heat pump reversible mode heat / cold for operation down to -5°C, it is a compact high performance heat pump designed for above ground pools up to 35 m³. Available in 3 versions
Manuals
Poolex Nano Action Reversible Heat Pump Installation Manual
Poolex Nano Action Reversible Heat Pump Technical Data Sheet
Poolex Nano Action Reversible Heat Pump
- Reversible mode for operation from -5°C.
- Economical, efficient (COP > 5) and quiet (< 33 dB).
- Toshiba rotary compressor and titanium heating element.
- Ø 32 - 38 mm connections for easy installation.
- 5 meter connection to standard electrical outlet with 10 mA differential protection.
- Quick installation in less than 5 minutes.
The Poolex Nano Action Reversible heat pump can be installed quickly with a simple connection to an electrical outlet.
The Poolex Nano Action Reversible cools your pool water as well as heats it, especially for above ground or above ground pools and even works for a spa.
Anti-UV ABS housing
Environmentally friendly R32 refrigerant
Toshiba compressor
Quiet operation
Accessories Heat Pump Poolex Nano Action Reversible Heat Pump for Cooling and Heating
Reinforced cardboard embassy
Manual and Instructions in Several Languages
PVC connectors 32-38 mm
Ultra Compact Reversible Poolex Nano Action Reversible design that integrates perfectly
Poolex Nano Action Reversible for Heat and Cool can be connected to all above ground pools and heat your pool.
*Scroll horizontally to view the complete table
| Model | Nano Action Reversible 3 |
Nano Action Reversible 4 |
Nano Action Reversible 5 |
|
|---|---|---|---|---|
| Pool volume (m3) | From 10 to 21 | From 15 to 28 | From 20 to 35 | |
| Condition: Air 26°C Water 26°C Humidity 80%. |
Capacity (W) | 3 000 | 4 200 | 5 010 |
| Power consumption (W) | 600 | 810 | 990 | |
| COR | 5 | 5,19 | 5,03 | |
| Condition: Air 15°C Water 26°C Humidity 70%. |
Capacity (W) | 2 200 | 3 100 | 4 030 |
| Power consumption (W) | 560 | 760 | 1000 | |
| COR | 3,93 | 4,08 | 4,03 | |
| Power supply | Mono 220-240V/50Hz | |||
| Heating temperature range | 15°C / 40°C | |||
| Cooling range | 8°C / 28°C | |||
| Operating range | -5°C / 43°C | |||
| Maximum power (W) | 900 | 1 200 | 1 500 | |
| Flow rate (m3/h) | 2 | 2 | 2,5 | |
| Refrigerant | R32 | |||
| Packaging dimensions (mm) | 460 x 370 x 415 | |||
| Dimensions (mm) | 400 x 280 x 385 | |||
| Net/gross weight (kg) | 18 / 20 kg | 25 / 29 kg | 26 / 30 kg | |
| Noise at 1 m (dB(A)) | <53 | <55 | <56 | |
| Noise at 10 m (dB(A)) | <33 | <35 | <36 | |
| Compressor type | Rotary | |||
| Compressor brand | Toshiba | |||
| Heat exchanger | Twisted Tech©titanium heat exchanger | |||
| Function | Heating / Cooling | |||
| Losses on load (mCE) | 0,8 | |||
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
