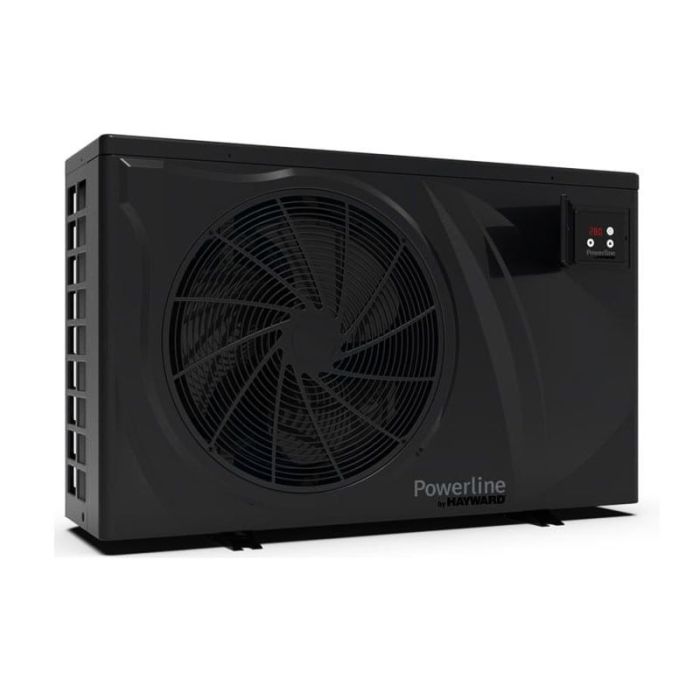

Hayward Inverter Powerline heat pump
Powerline heat pump to heat your pool water with Inverter technology to reduce energy consumption.
5 models available to adapt the power to the size of your pool up to 70 m³.
Hayward Inverter Powerline heat pump
The Hayward Inverter heat pump is the perfect accessory to raise the water temperature of your pool and enjoy a warm bath during the summer months and the months before and after it.
Being a 3-season product, the pump works effectively in colder conditions, raising the water temperature several degrees.
Thanks to its Inverter technology, the energy consumption will be significantly reduced, thus making it a very attractive economic saving for your pocket. The PWL pump is designed to use aerothermal energy as an energy fuel to produce heat, so that the electrical energy used is drastically reduced. By using air as the main natural resource, the pump is an environmentally friendly air conditioning equipment.
Hayward Inverter Powerline heat pump features
- For pools up to 70 m³.
- Power supply 220V-240V / 1 ph / 50 Hz.
- Built-in Axial DC Inverter fan.
- Uses R32 refrigerant gas, no impact on the ozone layer.
- Designed to operate at low temperatures.
- Low noise level.
- Includes winter cover.
- With anti-vibration pads included.
- 3-year warranty.
- The desired temperature is reached quickly and maintained efficiently, without unnecessary energy consumption.
The Hayward Inverter heat pump is available for pool sizes from 23 m³ to 70 m³.
| Model | 6 kW | 8 kW | 15 kW | 18 kW | |
|---|---|---|---|---|---|
| Reference | 81504 | 81514 | 81524 | 81534 | 81544 |
| Recommended pool surface (m³) | 23 | 30 | 45 | 55 | 70 |
| Nominal flow rate (m³/h) | 2,80 | 3,50 | 5 | 6,50 | 7,40 |
| Hydraulic pressure drop (kPa)2,32,946,79 | |||||
| Hydraulic connection (mm)5050505050 | |||||
| Noise level (1m) dB(A)49,850,253,950,854 | |||||
| Noise level (10m) dB(A) | 32,4 | 32,8 | 34,2 | 33,8 | 37,25 |
| Weight (Kg) | 43 | 47 | 51 | 66 | 74 |
| Refrigerant mass (Kg) | 0,35 | 0,43 | 0,45 | 0,65 | 0,67 |
Efficiency 78%, Air 27 ºC, Water 26 ºC
| Model | 6 kW | 8 kW | 11 kW | 15 kW | 18 kW |
|---|---|---|---|---|---|
| Thermal power (kW) | 1,62-6,72 | 2,70-8,15 | 2,36-11,45 | 3,70-15,64 | 2,73-17,87 |
| Energy consumption(kW) | 0,15-1,05 | 0,21-1,11 | 0,17-1,80 | 0,30-2,82 | 0,22-3,33 |
| Input current(A) | 1,02-4,88 | 1,54-5 | 1,19-7,85 | 1,49-12,28 | 1,44-14,62 |
| COP | 6,41-11,03 | 7,33-12,78 | 6,35-13,88 | 5,55-12,77 | 5,33-12,50 |
Efficiency 71%, Air 15 ºC, Water 26 ºC
| Model | 6 kW | 8 kW | 11 kW | 15 kW | 18 kW |
|---|---|---|---|---|---|
| Thermal power (kW) | 1,53-5,38 | 1,75-5,83 | 1,56-8 | 2,96-12,48 | 2,60-13,77 |
| Input current(A) | 0,27-1,09 | 0,28-1,33 | 0,28-1,74 | 0,44-2,65 | 0,41-3,16 |
| COP | 4,96-5,67 | 4,38-6,29 | 4,80-5,60 | 4,60-6,78 | 4,36-6,28 |
Warranty Information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
