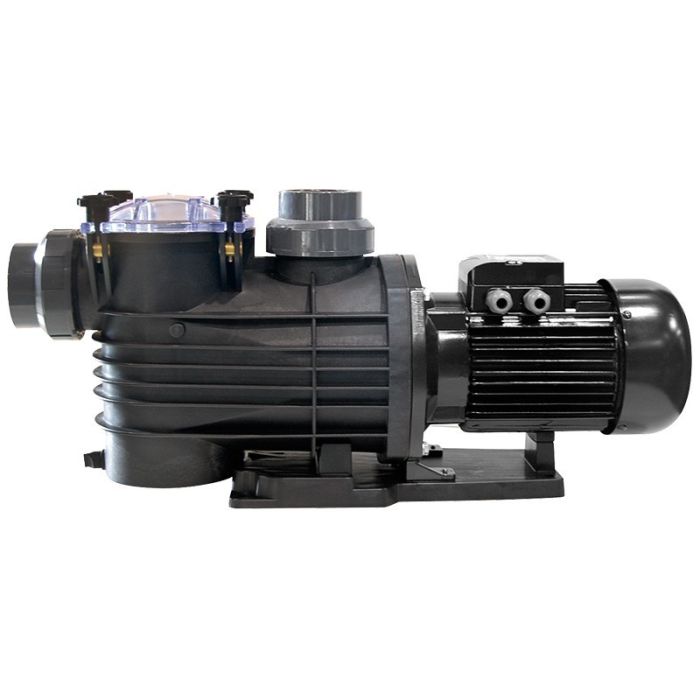

PSH Maxi Self-priming Pump
€429.00
In stock
SKU
Bomba Autoaspirante PSH Maxi
Free Shipping
Best Price Online
The PSH Maxi self-priming pump is the ideal pump to meet the pumping requirements in high performance thermoplastic material in medium and large size pools.
Available in various models according to power.
Manuals
PSH Maxi Self-Priming Pump Technical Data Sheet
PSH Maxi self-priming pump
Self-priming centrifugal pump up to 2 mca of the manufacturer PSH for filtration equipment of psychines.
Features PSH Maxi self-priming pump
- The PSH Maxi self-priming pump is available in power ratings from 1.5 hp to 4 hp, with single-phase or three-phase motors. Suitable to work with salt chlorinators or sea water.
- Manufactured with high resistance materials.
- With polypropylene body and pre-filter with transparent cover for easy handling, which makes it ideal for pump maintenance tasks.
- Large volume pre-filter basket that provides better filtration quality, incorporated in the pump body.
- Its mechanical seal and high quality bearings provide greater durability and resistance.
- Thermal protection included in single-phase versions.
- Insulation class: F
- Protection: IP55
- Motor: 50 Hz / 2900 rpm
Materials PSH Maxi Pump
- Pump body: 30% fiberglass reinforced polypropylene
- Impeller and diffuser: noryl reinforced with 30% glass fiber
- Pre-filter basket: polypropylene
- Shaft: stainless steel AISI 316
- Mechanical seal: carbon+resin-ceramic
Part numbers: 1MAX0150M2V, 1MAX0150T4V, 1MAX0200M2V, 1MAX0200T4V, 1MAX0300T4V, 1MAX0400T4V
*Scroll horizontally to view the complete table.
| Model | Power | Capacitor | II | III | III | Flow rate (m³/h) according to manometric height (m) | Nozzles | Weight | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CV | kW | μF | 230V A | 230V A | 400V A | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | Input | Output | kg | |
| MAXI-15 | 1,5 | 1,1 | 31,5 | 7,1 | 4,4 | 2,6 | 34,6 | 29,4 | 23,3 | 16,8 | 11,1 | 3,3 | - | - | 2½" / Ø75 | 2½" / Ø75 | 17,0 |
| MAXI-20 | 2 | 1,5 | 35,0 | 8,5 | 5,4 | 3,1 | 44,7 | 39,8 | 33,7 | 27,6 | 21,0 | 9,7 | 4,9 | - | 2½" / Ø75 | 2½" / Ø75 | 19,0 |
| MAXI-30 | 3 | 2,2 | - | - | 7,4 | 4,3 | - | 53,7 | 47,2 | 38,8 | 28,2 | 16,0 | - | - | 2½" / Ø75 | 2½" / Ø75 | 20,0 |
| MAXI-40 | 4 | 3 | - | - | 9,0 | 5,2 | - | 62,3 | 58,1 | 52,2 | 45,2 | 37,1 | 26,5 | 7,4 | 2½" / Ø75 | 2½" / Ø75 | 24,0 |
Warranty information
Warranty 2 years according to manufacturer's conditions.
