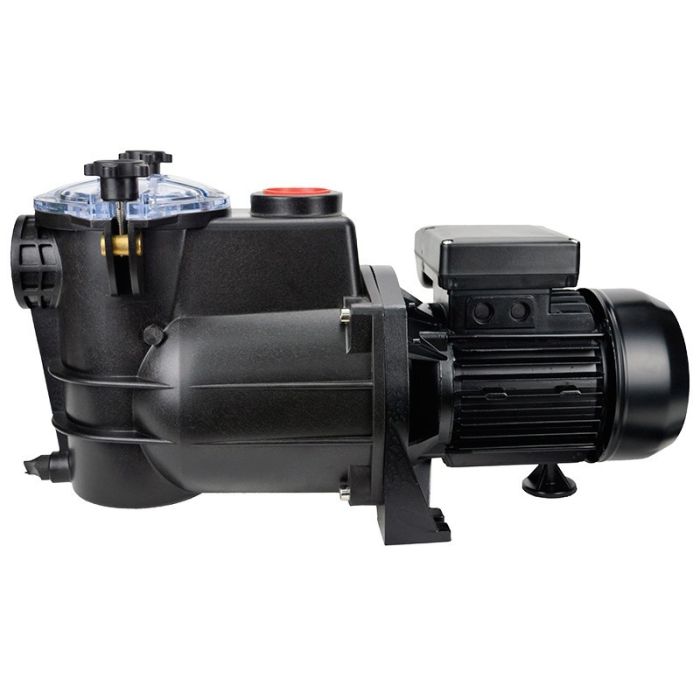

Mini PSH self-priming pump
€199.00
In stock
SKU
Bomba autoaspirante Mini PSH
Best Price Online
The MINI self-priming pump is the best option for filtration equipment and pool cleaners due to its great suction power, designed for water recirculation in small and medium sized pools filtration equipment.
Available in several models according to power.
Manuals
Mini PSH Self-Priming Pump Technical Data Sheet
Mini PSH self-priming pump
Self-priming centrifugal pump of the manufacturer PSH for filtration equipment of psychines.
Features Mini PSH self-priming pump
- The PSH Mini is a self-priming centrifugal pump up to 4 mca.
- Great power of self-priming that makes it the most suitable option for filtration equipment and pools with suction cleaners.
- Its dimensions are equivalent to Saci's Optima model, so they are interchangeable.
- Thermal protection included in the single-phase versions.
- Includes 1.5 meter long cable in the single-phase versions.
- High quality mechanical seal and bearings.
- Transparent cover of simple handling that facilitates the maintenance of the pump.
- Pre-filter basket incorporated in the pump body.
- Insulation class: F
- Protection: IP55
- Motor: 50 Hz / 2900 rpm
- Single-phase: 230 V II (usual in domestic electrical installation) / Three-phase: 230/400 V III.
Materials Mini Pump
- Pump body: 30% fiberglass reinforced polypropylene
- Impeller and diffuser: noryl reinforced with 30% glass fiber
- Pre-filter basket: polypropylene
- Shaft: stainless steel AISI 420
- Mechanical seal: carbon+resin-ceramic
Reference codes: 1MIN0030M2V, 1MIN0050M2V, 1MIN0080M2V, 1MIN0080T4V, 1MIN0100M2V, 1MIN0100T4V
*Scroll horizontally to view the complete table.
| Model | Power | Capacitor | II | III | III | Flow rate (m³/h) according to manometric height (m) | Nozzles | Weight | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CV | kW | μF | 230V A | 230V A |
400V A |
4 | 6 | 8 | 10 | 12 | 14 | 16 | Input | Output | kg | |
| MINI-33 | 1/3 | 0,25 | 16 | 2,6 | - | - | 12,5 | 10,8 | 9,0 | 6,5 | 3,3 | - | - | 1½" | 1½" | 9,6 |
| MINI-50 | 1/2 | 0,37 | 16 | 3,1 | - | - | 13,3 | 11,7 | 10,0 | 7,9 | 5,6 | 2,3 | - | 1½" | 1½" | 9,8 |
| MINI-80 | 3/4 | 0,60 | 20 | 4,6 | 3,1 | 1,8 | 16,5 | 13,7 | 11,6 | 10,5 | 8,8 | 6,4 | 3,2 | 1½" | 1½" | 10,3 |
| MINI-100 | 1 | 0,75 | 25 | 5,9 | 3,3 | 1,8 | 18,4 | 16,4 | 14,4 | 12,5 | 10,4 | 7,8 | 4,0 | 1½" | 1½" | 12,2 |
Warranty Information
Warranty 2 years according to manufacturer's conditions.
