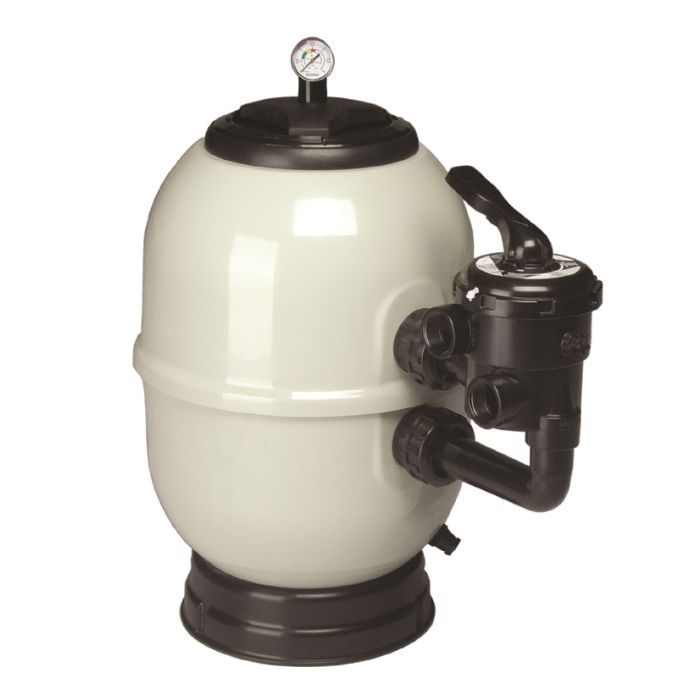

AstralPool Aster Filter
AstralPool Aster Filter is a filter laminated in polyester and fiberglass. It is supported by a polypropylene foot and has a top cover without screws.
Available in gray color, it comes equipped with a pressure gauge, water drain plug and side selector valve. The maximum working pressure of the filter is 2.5 kg/cm2 with a maximum filtration velocity of 50 m3/h/m2.
Available without selector valve, with bayonet valve or with screw valve.
AstralPool Aster Filter
The advantages of AstralPool Aster filters are the easy handling thanks to the patented system of opening and closing of the cover thanks to which the traditional screws are eliminated and it is possible to exert a uniform pressure on the whole section of the sealing gasket in addition to facilitating the operation of opening the cover.
With regard to its capacityThe incorporation of 1" diameter collectors increases the filtration surface and improves its efficiency.
For its functionality, they are equipped with the selector valve of 6+1 selector valve that allows filter, wash, rinse, recirculate, empty and close the filter.. A valve so reliable that it is used with most AstralPool filters.
MONOBLOC Technology: The Aster filters filters with diameters 350, 450 and 600 mm are available in monobloc assemblies consisting of a polypropylene base, a filter with side selector valve, a self-priming Sprint pump and all the necessary accessories.
The monoblocs incorporate a baseplate made of plastic material resistant to atmospheric agents and its components are designed to facilitate its assembly and precise fitting.
See delivered pre-assembled.
Manuals
Catalog
Dimension sheet
Technical data sheet
Dimensions
*Scroll horizontally to view the complete table.
| Ø 350mm | Ø 450mm | Ø 500mm | Ø 600mm | Ø 650mm | Ø 750mm | Ø 900mm | |
|---|---|---|---|---|---|---|---|
| Code | 00497AN | 00498AN | 19781AN | 00499AN | 21071AN | 00500 | 00501 |
| H (mm) | 780 | 795 | 770 | 850 | 880 | 945 | 1050 |
| M (mm) | 420 | 430 | 415 | 455 | 480 | 555 | 660 |
| N (mm) | 295 | 305 | 290 | 330 | 355 | 325 | 390 |
| Connections | 1½” | 1½” | 1½” | 1½” | 1½” | 2” | 2½” |
| Flow rate m3/h (at 50m3/h/m2) | 5 | 8 | 9 | 14 | 15 | 21 | 30 |
| Pool (volume) m3 (8 h)* | 40 | 64 | 72 | 112 | 120 | 168 | 240 |
| Sand load (kg) | 50 | 70 | 90 | 125 | 200 | 290 | 500 |
| Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 12,5 | 15,5 | 18 | 21 | 24 | 30 | 51 |
| Packing volume (m3) | 0,13 | 0,18 | 0,26 | 0,36 | 0,44 | 0,6 | 1,03 |
AstralPool Aster Filter
AstralPool Aster filter sand filter manufactured with side outlet.
Laminated filter in polyester and fiberglass.
Polypropylene foot and screwless lid.
Gray color.
Equipped with pressure gauge, water drain plug and side selector valve.
Maximum working pressure: 2.5 kg/cm.2.
Maximum filtration speed: 50 m3/h/m2.
The diversity of sizes of Aster laminated sand filters stands out for being one of the most sold filter models, in addition, its collector arms with a larger diameter (1") provide a larger filtration surface.
Its laminated finish in ivory color, gives it a discreet appearance and a security that makes it adaptable to any type of installation.
Features AstralPool Aster Filter
- Laminated sand filters, in polyester resin and fiberglass, ivory color.
- Assembled with 1" diameter collectors and diffuser in unalterable plastic material PVC and PP.
- Equipped with pressure gauge, manual air purge and manual water purge.
- Six-way side selector valve for filtration, washing, rinsing, recirculation, emptying and closing operations.
- Polypropylene foot (except for the 900 mm diameter model, which is made of polyester resin and fiberglass).
- Lid without screws for quick opening and closing.
- Maximum filtration speed: 50 m3/h/m2.
- Maximum working pressure: 2,5 kg/cm2.
- Available without selector valve, with bayonet valve or with screw valve.
Benefits
- Functionality. Equipped with AstralPool's 6+1 position selector valve that allows filtering, washing, rinsing, recirculating, emptying and closing the filter.
- A valve so reliable that it is used with most AstralPool filters.
- Easy handling. The patented lid opening and closing system eliminates the need for traditional screws. As a result, uniform pressure is exerted on the entire section of the sealing gasket and the lid opening operation is facilitated.
- Capacity. The incorporation of 1" diameter collectors increases the filtration surface and improves its efficiency.
- Wide range. The Aster filter family provides the ideal solution for a wide range of pools according to their filtration capacity. You can have an Aster filter with a diameter ranging from 350 mm to 900 mm, suitable for swimming pools from 40 m to 900 mm.3 to 240 m3 in volume.
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.
