Control cabinet with 2 pumps and lighting control transformer 300W AstralPool
€529.00
In stock
SKU
70422-70429
Free Shipping
Best Price Online

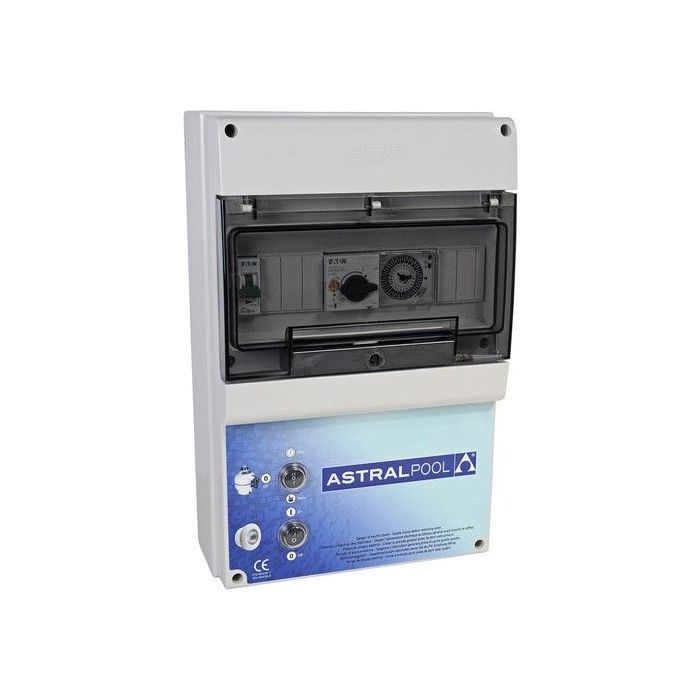

AstralPool control cabinet for the protection of two pumps and control of 1 underwater light, with 300W transformer included.
Manuals
Spare parts manual Control cabinet for pump protectionControl cabinet for 1 pump and lighting control transformer 300W AstralPool
Protection by circuit breaker, contactor, 24h timer, 3-position switch (auto/0/manual).
Switch on pool lights.
Features
- IP-65 protection.
- Transparent glass with lock and key.
- All products are compatible with:
- 220/240V 1-phase (P+N+T) 50Hz/60Hz.
- 380/415V 3-phase (3P+N+T) 50Hz/60Hz
- 220/230V 3-phase (3P+T) 50Hz/60Hz
- 24H control clock with programming steps every ¼h.
- Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...).
- All products are delivered with:
- Wiring diagram
- Connection diagram
- Installation instructions
- CE Certificate of Conformity
- Cable gland for each cable inlet and outlet.
- Screws and plugs (4) for wall mounting.
Depending on the nominal current of the filtration pump, the type of cabinet must be selected:
| Type | Code | Current Range | Power 1-phase 230V | 3-phase power 400V | 3-phase power 230V |
|---|---|---|---|---|---|
| C | 70429 | 4A - 6,3A | 3/4 HP - 1 HP | 3 HP* - 3 HP | 1.5 HP |
| D | 70422 | 6A - 10A | 1.5 HP | 4 HP** 4 HP** 4 HP** 4 HP** 4 HP** 4 HP | 2 HP - 3 HP |
* Also 3,5 hp 400V 3~ plastic (code 08003)
** Also 4,5 and 5,5 HP 400V 3~plastic (codes 08004 and 08005)
Warranty information
Warranty 2 years according to manufacturer's conditions.
