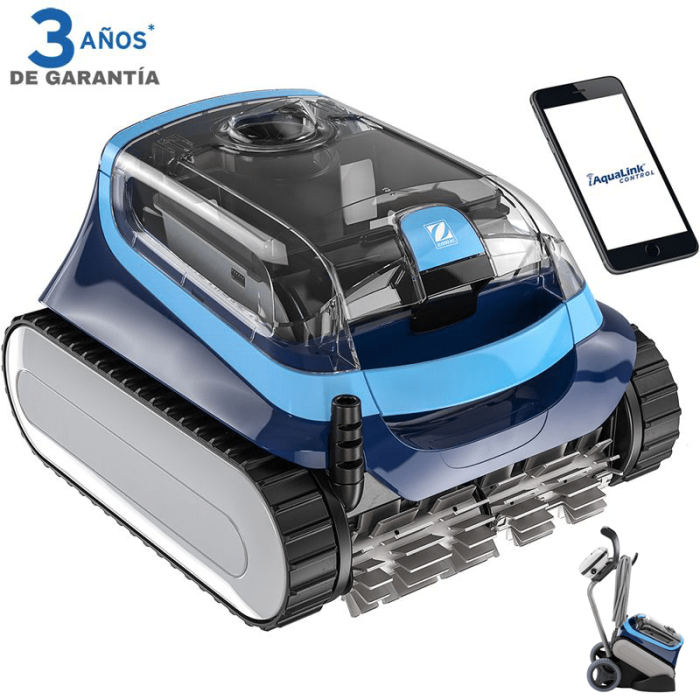

Zodiac XA 4010iQ pool cleaner robot
Thanks to its patented cyclonic suction, the Zodiac XA 4010iQ pool cleaner cleans the bottom, the walls and the water line of your pool in an agile way and with maximum power thanks to its 2 cleaning cycles, its two brushes, 3 motors and the complete iAqualink application that optimizes the whole cleaning process of your pool.
In addition, its dual-level filtration offers a unique cleaning experience, including the transport trolley.
With 3-year warranty.
Manuals
Video Presentation Cleaner Zodiac XA TYPE XA 4010iQ
Video Zodiac XA 4010iQ robotic pool cleaner from the XA Zodiac range
NEW ZODIAC XA 4010iQ EXCLUSIVE ON FERROMAR POOLS !
Agility with maximum power
For what type of pool?
| For non-solo and above solo pools with rigid walls. |  |
| All types of pools |  |
| All covers and linings |  |
| For pools up to 12 x 6 M |  |
| Cleaning of bottom, wall and water line |  |
Cyclonic suction
Your patented cyclonic technology provides a more powerful and durable suction .
Zodiac engineers were the creators of cyclonic suction and the first pool cleaners to include it were created by them.
The Cyclonic Aspiration consists of creating a high-powered filtering system inside the filter, which acts in such a way as to keep the filter in suspension, preventing it from clogging the filter walls and keeping it clogged, maintaining the maximum performance in the cleaning cycle at all times.
Thanks to the propeller-shaped brushes, the progressive double level filtration and its 3 motors allow even the finest debris to be removed more efficiently. With the XA 4010iQ robot, your pool will be impeccable all year long.
Easy handling with the complete application
Thanks to the application iAquaLink application, the start and stop functions can be controlled remotely, and the cleaner can be controlled and programmed. from a smartphone. And you can monitor the progress of the cleaning at any time or select pre-recorded cleaning modes .
Lift system function for assisted water drainage.
In addition, automatic upgrades of its functions allow the XA 4010 iQ to be evolutionary.
Patented lifting system function that facilitates the vacuum cleaner's exit.
Thanks to a powerful rear water jet that is activated when the cleaner comes out of the water.
Progressive duplex level filtration
Allows to vacuum even the finest debris in the most efficient way.
Transparent layer and backlit filter
Allows to visualize the waste collected in the filter. O backlit filter The backlit filter, accessible from the top, and the transparent lid make daily use much easier.
Helical format tweezers
Thanks to its helicoidal brooms, the Zodiac XA 4010iQ removes debris more efficiently, collecting even the best debris.
Fast and agile movement
With its integrated intelligent sensors its exclusive design and its 3 motors, the Zodiac XA 4010iQ offers excellent cleaning coverage and unlimited agility.
The XA 4010iQ works perfectly in any type of pool and on any liner.
Double traction
Optimizes cleaning and performance in the pool glass cleaning task with its double traction.
Large suction capacity
With its suction nozzle of 23 cm
Top access to the filter
O filter, accessible from the top and transparent cover greatly simplify its daily use. The rapid evacuation of the water facilitates the exit of the vacuum cleaner from the pool.
TRANSPARENT SCREEN: Allows to visualize the waste collected in the filter.
TOP ACCESS TO THE FILTER Facilitates daily use.
Zodiac XA 4010iQ Technical Features
| Number of Engines | 3 |
| Line compression / hose compression | 18 m |
| Cleaner dimensions ( Lx W x H) | 43 x 40 x 30 cm |
| Cleaning weight | 8 Kg |
| Weight with packaging | 14 Kg |
| Filtering surface / filtration level | Double level 150/60µ 1066 cm² (1066 sq. cm) |
| Filter capacity | 4 L |
| Cleaning cover | 23 cm |
Included Accessories
Carrying handle
This allows the cleaner to be transported and stored more efficiently.
Control Unit
Allows to start or stop the robot, besides the possibility to select the cleaning cycle.
Dual level filters
Dual level filtration set: 150 / 60μ. Maximum filtration capacity for the finest residues.
Base
This allows to protect and house the control unit from direct contact with the solo.
Optional Accessories
Layer
Made of waterproof nylon and PVC to protect your robô from the sun, cold, snow or rain.
Request information if you are interested.
Comparison of Zodiac XA Range
 |
 |
|
|
| Zodiac XA 2010 | Zodiac XA 3010iQ | Zodiac XA 4010iQ | |
| Reference | WR000334 | WR000330 | WR000326 |
| POOLS | |||
| Types of Swimming Pools | Inground and above ground with rigid walls | Inground and fora do solo with rigid walls | Buried and outside the solo with rigid walls |
| Shapes, Foundations and Coatings | All types of shapes, covers and coatings | All types of shapes, casings and coatings | All types of shapes, casings and coatings |
| Maximum pool size | 10 x 5 m ( 15m cable ) | 12 x 6 m (18m cable) | 12 x 6 m ( 18m cable ) |
| PERFORMANCE | |||
| Patented Cyclonic suction | Sim | Sim | Sim |
| Broom | Helical shaped fronts | Helical shaped fronts | Helical shaped fronts |
| Traction systems | Steiras: 2 traction motors | Steiras: 2 traction motors | Steiras: 2 traction motors |
| Cleaning areas | Bottom / walls / water line | Fund / walls / water line | Fund / walls / water line |
| Filtration | Simple: 100µ | Double level: 150/60µ | Dual level: 150/60µ |
| Transmission | Gears | Gears | Gears |
| Security | Praia system, automatic out-of-water shutdown, electronic motor protection | Beach system, automatic out-of-water shutdown, electronic motor protection | Beach system, automatic out-of-water shutdown, electronic motor protection |
| CLEANING CYCLES | |||
| Cycle Numbers | 2 | 2 | 2 |
| Solo Fundo" Cycle | Sim | Sim | Sim |
| Cycle "Fundo / Paredes / Linha d'água". | Sim | Sim | Sim |
| EASY HANDLING | |||
| App iAqualinkTM | - | Sim | Sim |
| Remote control | No | No | Yes |
| Manual cleaning time setting | No | No | Yes |
| Lift System for easy water drainage | No | No | Yes |
| Transport carriage | No | No | Yes |
| Illuminated Filter | - | Sim | Sim |
| Transparent Tampa / waste viewfinder | Sim | Sim | Sim |
| WARRANTY | |||
| 3 years | 3 years* 3 years | 3 years* 3 years | |
Warranty information
3 years. See conditions in the Warranty Document.
* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.
* It is not possible to guarantee the correct functioning of the equipment both at the bottom and at the top of the walls, if the pH level is not correct, if you find dirt or algae or if the filters are clogged by excess of water, and a total cleaning of the glass has not been previously carried out, as well as any pool with irregular surfaces on the walls such as depressions or ribs *.
