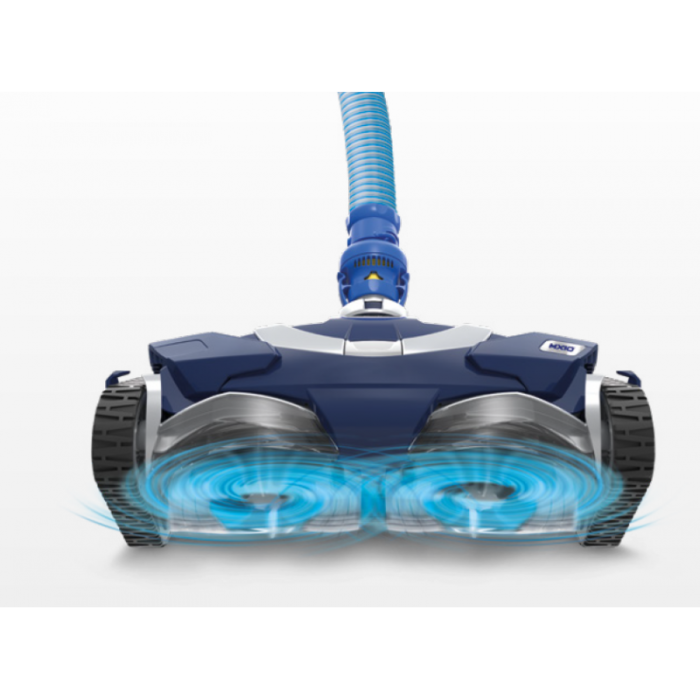

Zodiac MX10
The Zodiac MX10 automatic hydraulic pool cleaner, the latest model in pool cleaners, is the perfect choice for those who have pools up to 12x6 meters maximum.
Manuals
Catalog Zodiac MX10
Zodiac MX10 Installation Manual
Zodiac MX10 Quick Start Guide
Zodiac MX10 Warranties
A pool cleaner that not only keeps the bottom of the pool clean, but also effectively cleans the walls, ensuring crystal clear water and an optimal swimming environment. The Zodiac MX10 features notable improvements over previous models, making it an even more attractive option for pool owners:
- Improved crawler tracks.
- Motor fin support assembly for more efficient suction.
- New ergonomic design.
Features Zodiac MX10
Turbo Vacuum
The Zodiac MX10, our leading pool cleaner, is equipped with an advanced system of turbo suction which incorporates a powerful suction turbine and two propellers with brushes, working together to precisely direct dirt and debris into the mouth of the device. This ensures extremely effective cleaning, even in conditions of reduced water flow.
Cyclonic Brushing
Thanks to the innovative technology of cyclonic brushing technologythe MX10 pool cleaner can dislodge embedded debris before vacuuming it up. The device's active brushes are able to effectively remove any type of debris, including stubborn algae that clings to the bottom and walls of the pool.
X-Drive Pre-programmed Navigation System
With the advanced X-Drive pre-programmed navigation system, the MX10 performs a methodical sweep that covers all areas of your pool, ensuring impeccable coverage, no matter what shape or type of bottom your pool has.
Technical features Zodiac MX10
Hose length: 12 sections of 1 m
Cleaner dimensions (L x W x H): 41 x 19 x 22 cm
Packaging dimensions (L x W x H): 102 x 23 x 37 cm
Weight of cleaner (head): 3.4 kg (Weight with packaging: 9.5 kg
Filtration capacity: Pool filtration circuit
Cleaning coverage: 36 cm
Minimum power requirement of the filtration pump: 3/4 HP
Displacement speed: 8 m/min
Pool types
Types of pools: in-ground pools and above ground pools with rigid walls up to 12 x 6 m (40 x 20 ft).
Shapes: rectangular, oval and free-form shapes.
Backgrounds: flat, gentle slope and compound slope.
Coatings: gresite, liner, polyester shell, reinforced PVC, painted concrete.
Accessories included
- Cyclonic cleaning brushes
- Twist Lock hoses
- 45° elbow
- Conical adapter
- Automatic flow regulator
- 45° extension
- Automatic flow regulator valve (skimmer)
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs, or insufficient pump power depending on the liner * *.
