Zodiac CNX 25 Pool Robot

Catalog Zodiac CNX 25

Video Presentation Zodiac CNX Pool Cleaners

Representative video of the Zodiac CNX 30iQ pool cleaner

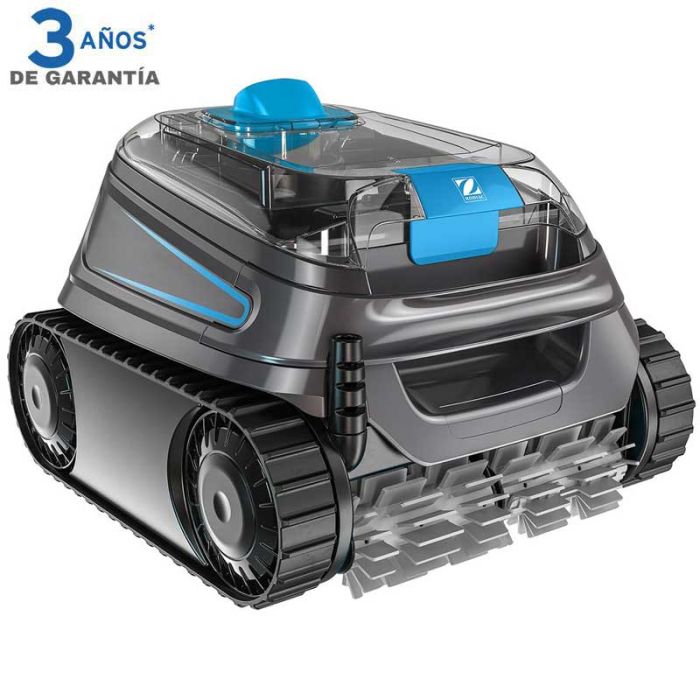

Zodiac CNX 25 pool cleaner

The Zodiac CNX 25 is a robotic pool cleaner using cyclonic suction technology and integrated intelligent sensors that provides excellent pool cleaning coverage.

ZODIAC CNX pool cleaner range !

Agility with maximum power

For what type of pool?

For in-ground and above-ground pools with rigid walls.
All types of pools
All bottoms and liners
For pools up to 10 x 5 M
Cleaning of bottom, walls and waterline

Cyclonic suction and other benefits

Cyclonic suction via patented Zodiac technology technology that provides a powerful and constant suction. In addition, its suction width of 23 cm facilitates a large suction capacity.

The Zodiac CNX 25 Swimming Pool Robot cleans the bottom, walls and water line and adapts to all types of pools, whatever their shape and liner.

This model of pool cleaner is an ideal product of great versatility and is recommended for use in pools not exceeding 10 x 5 m of surface.

Its two cleaning programs make the CNX 25 robot easy to use and makes it an efficient robot cleaner. It has 2 cleaning cycles: bottom only (1h 30 min) and bottom, walls and water line (2h 30 min).

Progressive Double Level Filtration

An effective double filter allows to suck even the finest debris in a more efficient way thanks to its 150 + 60 microns of filtration.

Fast and agile displacement

It has double traction motorcyclonic suction, intelligent sensors and the most modern features to achieve the best mobility on all types of surfaces and provide excellent cleaning coverage in your pool.

It has a beach system, i.e, automatic stop out of the water and electronic protection of the motors, which makes it a very safe robot.

Helical shaped brush

Helical shaped brush

Helix-shaped front brushes for efficient suction of all debris, including fine and light debris, on all parts of the pool.

High suction capacity

With its suction nozzle of 23 cm.

Easy handling

It has a double 150 microns + 60 microns particle retention filter that will make your pool always clear and clean.

Easy top access to the filter with transparent lid allowing for easy cleaning of the filter and viewing of debris collected in the filter without having contact with the dirt.

Large capacity rigid filter: 4 liters.

15 meters of cable and only 8 kg weight which makes it very light.

Easy maintenance of the main parts (motor block, cable, etc.).

Fast water evacuation. For effortless removal of the cleaner from the pool.

TRANSPARENT COVER: Allows to visualize the waste collected in the filter.

TOP ACCESS TO THE FILTER Facilitates daily use.

Included Accessories Zodiac CNX 25 Pool Cleaners

Control Unit

Allows you to start or stop the robot, as well as the possibility to select the cleaning cycle.

Rectangular filter

Double filter ideal for small and large particles such as leaves, soil or pine needles of 150μ/60μ.

Base

To protect and house the control unit from direct contact with the ground.

Optional Accessories

Single filter: 100μ. or 200μ.

Simple filter of 100μ.
Single filter of 200μ.

Transport trolley

The simplest form of transport for moving the robot, cable and power supply.

Holster

Nylon and waterproof pvc to protect your robot from sun, cold, rain or dirt.

Ask for information if you are interested

Comparison of Zodiac CNX Range

	Zodiac CNX 10	Zodiac CNX 20	Zodiac CNX 25	Zodiac CNX 30 iQ	Zodiac CNX 40 iQ	Zodiac CNX 50 iQ
Article number	WR000490	WR000335	WR000450	WR000357	WR000415	WR000500
Pool size up to	9 x 4 m	10 x 5 m	10 x 5 m	12 x 6 m	12 x 6 m	12 x 6 m
Cleaning Zones	Bottom, walls and water line	Bottom, Walls and Waterline	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line
Patented Cyclonic Aspiration	Yes	Yes	Yes	Yes	Yes	Yes
Cleaning Cycles	1 bottom, walls and line	2 bottom only / bottom, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line
Traction Systems	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors
Filtration	Single: 100µ	Single: 100µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Transmission	Gears	Gears	Gears	Gears	Gears	Gears
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Cleaning coverage ( suction nozzle )	23 cm	23 cm	23 cm	23 cm	23 cm	23 cm
Cable length	15 m	15 m	15 m	18 m	18 m	18 m
Swivel	-	-	-	-	-	Yes
Security	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection
Motors	3	3	3	3	3	3
iAqualink AppTM	-	-	-	Yes	Yes	Yes
Remote Control ( Via App )	No	No	No	Yes* ( Start, stop and follow-up of the cleaning cycle Cleaner optimization with updates )	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )	Yes ( Remote control. Starting, stopping and monitoring the cleaning cycle Liftsystem Optimization of the cleaner with updates )
Cleaning time adjustment	No	No	No	No	Yes	Yes
Lift System for easy water drainage	No	No	No	No	Yes	Yes
Transport Trolley	No	No	No	No	Yes	Yes
filter Illuminated	No	No	No	Yes	Yes	Yes
Robot Weight	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg
WARRANTY
	3 years	3 years	3 years	3 years	3 years* 3 years	3 years* 3 years

Information and recommendations for use of CNX 25

• The CNX 25 is a mid-range pool cleaner that has been designed to adapt to all types of flat or gently sloping pools. In those cases in which the filtration equipment of our pool does not provide the necessary power to operate a hydraulic pool cleaner, it will be necessary to use an electric pool cleaner that can perform the maintenance of our pool in a satisfactory way.
• It must be taken into account that it will be the most efficient autonomous cleaning option for our pool, since it is an intelligent robot that will be able, depending on its characteristics, above any other method, to detect which areas remain to be cleaned and which is the best possible cycle to clean our pool.
• To be the most reliable product for the cleaning of our swimming pool also implies of some cares and maintenance superior to other products to lengthen its useful life and that its performance is prolonged in the time. That is why we have to take into account the following points:
• Outside the cleaning cycle, it is essential that the pool cleaner remains out of the water under cover to avoid the humidity factor and direct contact with pool chemicals.
• It is advisable to rinse the pool robot with fresh water and clean its dual-level filter after each cleaning cycle to free it from chemicals and possible clogging. This way you will be able to perform your cleaning task at the highest level every time without any inconvenience.
• The outdoors is the pool cleaner's worst friend. It is important to keep in mind that it is a product with a high cost and therefore susceptible to theft. On the other hand, it is advisable that weather conditions such as humidity, wind and especially the sun do not come into daily contact with the robot to avoid damaging the casing and the rest of its components.
• Although a pool cleaner is designed to keep our pool clean, the disinfection of the pool will still be the most important thing and independently it will be mandatory to maintain the correct water parameters. The chlorine level and the Ph level of the pool must always be at the correct level if we want to submerge the robot.

Warranty information

3 years of the manufacturer according to Royal Decree-law 7/2021, of April 27.

* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.


*The correct operation of the equipment cannot be guaranteed both on the bottom and on the walls as long as the pH level is not correct, it contains slime or algae or the filters are clogged by excess dust, and a total cleaning of the pool has not been previously carried out, as well as any pool with irregular surfaces on the walls such as ribs, including pool steps.
