Safety valve for AstralPool drains

Name: Safety valve for AstralPool drains
Brand: Astralpool
SKU: 41898-41899
Price: 109.9 EUR
Availability: InStock

Be the first to review this product

€109.90

In stock

SKU

41898-41899

¿Quieres recibirlo del Monday 9 de February al Thursday 12 de February?. Más información. Cómpralo antes de

Best Price Online

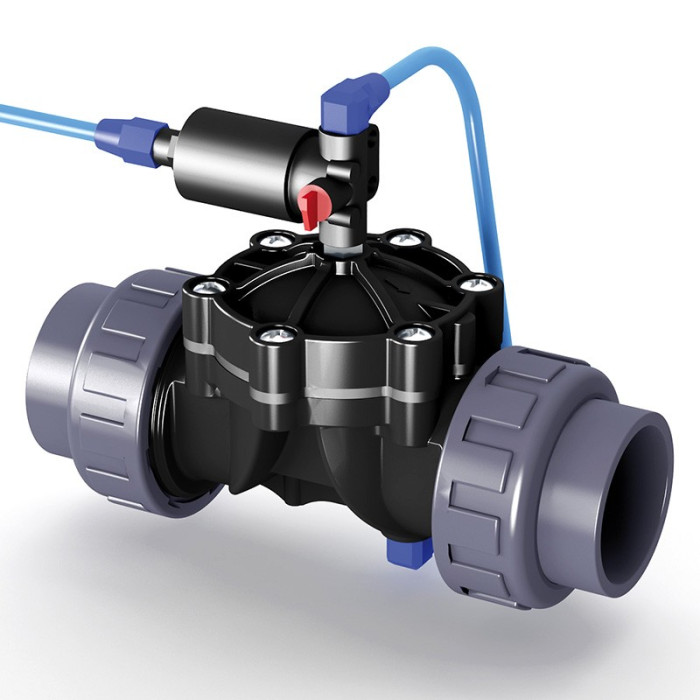

AstralPool drain safety valve is indicated for installation in the drain outlet of an automatic selector valve of a sand filter. It is recommended for use in installations with SYSTEM VRAC automatic selector valves.

Manuals

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Manuals

AstralPool Drain Safety Valve Technical Data Sheet

The AstralPool safety drain valve prevents water loss when the valve changes its working position and in the event of a power failure and the valve is in a position where it could empty the pool.

General characteristics

Available with Ø50 smooth double sleeve connection or with 1½" BSP double sleeve connection.
Solenoid electrical characteristics: voltage: 24 VAC / consumption: 0.125 A.
Working pressure range: 0.2 to 3 kg/cm2 (2.9 - 43.5 psi).
Flow rate range: 0.5 m³/h to 14 m³/h (0.5 m³/h to 14 m³/h).
