AstralPool Skimmer dimensions square cover extension mouth

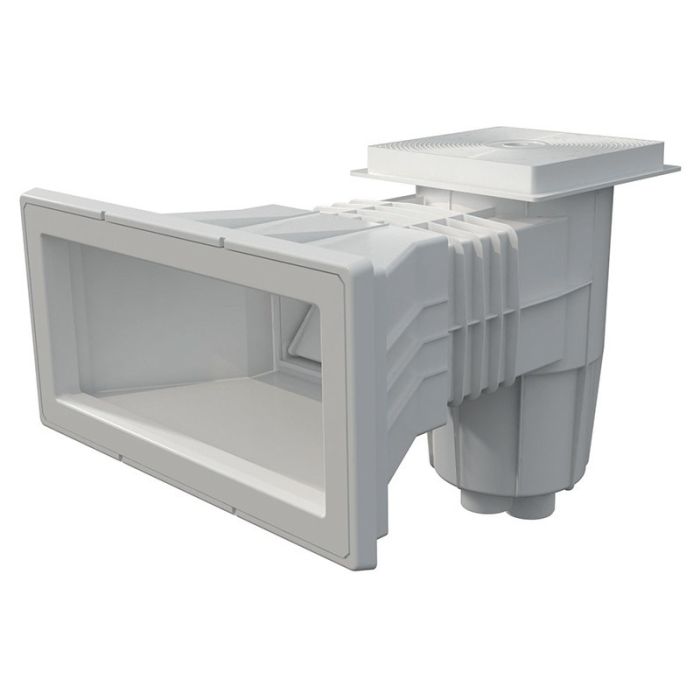

AstralPool skimmer square cover enlargement mouth for liner and prefabricated pools

• Skimmer of 15 liters with enlargement mouth and square pressure cover for liner and prefabricated pools.
• The enlarged mouth provides a greater capacity to capture dirt from the water surface.
• Available in white, beige, light gray and anthracite gray for easy adaptation to the color of your pool liner.
• Supplied with adhesive gaskets, flange and screws.
• Skimmer with UV treatment in the parts that are not buried.
• Made of white ABS, with float gate and flap for flow regulation.
• Lower suction connection: internal thread 1½", external thread 2".
• Simultaneous connection to the sump: inner Ø 50 mm.
• Upper connection for excess water evacuation Ø 40 mm.
• Includes leaf catcher basket.
• Recommended flow rate: 5 m³/h
• It is recommended to install one skimmer for every 25 m² of water surface.
• Complies with EN 16582-1 standards.

Warranty information

3 years from the manufacturer according to Royal Decree-Law 7/2021 of 27 April.
