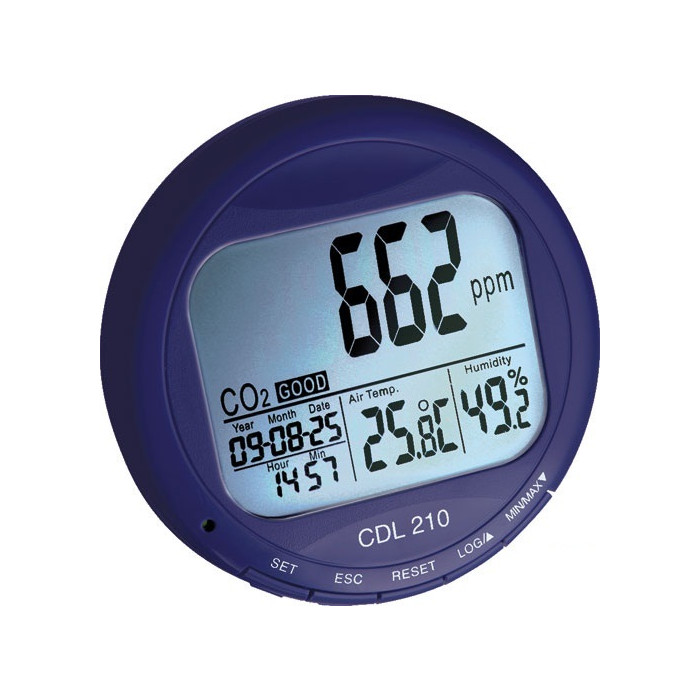

CO2 Meter CDL 210

CO2 meter with temperature and humidity display / recording of 5300 series of values / compact design / large measuring range up to 2000 ppm

This CO2 meter is the new standard for measuring CO2 concentration.

The compact CO2 meter CDL 210 assesses the air quality by measuring the CO2 content by means of infrared measurement, temperature and humidity of the air.

All recorded data are shown on the large display. You can record in different time periods and then analyze the data on your PC.

The CO2 meter is especially suitable for air assessment in conference rooms and general rooms in the industrial and public sector (e.g. schools). A high concentration of carbon dioxide can occur quickly, especially when several people are in closed rooms that lack good ventilation.

Carbon dioxide reduces general well-being (e.g. symptoms of tiredness, loss of concentration and headache), and thus also the ability to perform.

Characteristics

• A person's well-being decreases from a concentration of more than 800 ppm.
• Acoustic warning when the preset limit value of the CO2 value is exceeded.
• Simultaneous display of CO2 concentration, temperature and air humidity on the screen
• Logging function for 5300 measurement series
• Compact design
• CO2 concentration measurement
• Large display
• Large measuring range up to 2000 ppm

Technical Specifications of the Wireless CO2 Meter:

• CO2 measuring range - 0 ... 2000 ppm CO2 (2.001 - 9.999 ppm outside the specified range)
• CO2 accuracy - 50 ppm ±5 %.
• Resolution - 1 ppm (0-100 ppm)
• Measuring principle - NDIR procedure (non-dispersive infrared absorption analyzer)
• Temperature -10 ... +60 ºC
• Temperature accuracy - ±0.6 ºC
• Resolution - 0.1 ºC
• Air humidity - 5 ... 95 %
• Accuracy - 10 ... 90 %, 25 ºC ±3 % or ±5 %.
• Resolution - 0.1 %.
• Display - simultaneous indication of CO2 concentration, temperature and relative humidity
• Evaluation of climatic conditions:
• Good (optimum)
• Normal (normal)
• Poor (critical)
• Memory - 5300 series of values
• Data - up to 16000
• Measurement quota:
• 3 /10 / 30 seconds
• 1 / 3 /10 / 30 minutes
• 1 / 3 /4 hours
• Power supply AC mains component 5 V / 0.5 A
• PC connection USB port
• Dimensions 120 x 100 x 110 mm
• Delivery contents
• 1 x CO2 meter CDL 210, 1 x network component, 1 x data cables and software, operating instructions

Warranty information

3 years manufacturer's warranty according to Royal Decree Law 7/2021 of 27 April.
