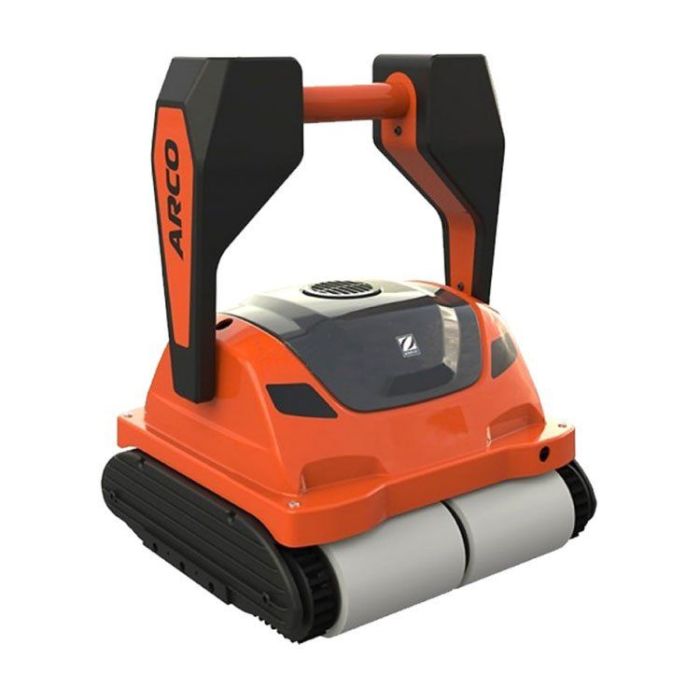

Zodiac Arco Cleaner
Pool cleaner for medium sized public swimming pools in sports centers, community pools, hotels, etc. with rigid walls and up to 30 m long with high suction power.
It has
infrared sensor to detect walls and obstacles.
Zodiac Arco Pool Cleaners
The Zodiac Arco pool cleaner has been carefully designed for professional use in medium sized public pools up to 30 meters in swimming and sports centers, as well as in community pools, hotels and campsites.
Equipped with an advanced infrared sensor, the Arco pool cleaner has the ability to detect walls and obstacles in its path. This allows for precise navigation and avoids collisions, ensuring that the cleaner can effectively maneuver around your pool.
Thanks to its gyroscope and intelligent navigation system with compass, this model can plan optimal cleaning routes. It avoids unnecessary repetition and ensures complete coverage of your pool, saving time and energy.
The Arco cleaner has been designed with intensive use in professional and commercial environments in mind. Its bearing-reinforced drive system ensures exceptional durability and consistent performance over time.
This model is equipped with a powerful suction that is capable of effectively removing debris, dirt and sediment from all surfaces of your pool. It leaves your water crystal clear in no time.
In addition to its automatic mode, the Arco Pool Cleaner includes a remote control for manual control. This allows you to direct the cleaner to specific areas that require special attention or perform spot cleaning according to your needs.
Pool types: Medium sized public pools (sports centers, community pools, hotels, etc.) with rigid walls and up to 30 m in length.
Pool shapes: Rectangular, oval, free-form
Backdrops: Flat, gentle slope, compound slope, diamond shape.
Pool surfaces: Gresite, liner, polyester shell, reinforced PVC, painted concrete.
Features Zodiac Arco
*Scroll horizontally to view full table
| Cleaning zones | Bottom / walls / water line |
|---|---|
| Number / Duration of cleaning cycles | Multiple with preset cycles: - Floor mode: floor - Wall and floor mode: floor, walls and waterline - Delayed start: the start of both cleaning modes can be postponed for up to 3 h |
| Delayed start | Yes, up to 3 years |
| Power supply | Autonomous, connected to 230V |
| Displacement | Preprogrammed |
| Traction system | Bearing mechanism - 2 motors |
| Transmission | Belt drive with reinforced components |
| Pressure sensor | Yes |
| Brushes | PVA |
| Complete filter indicator | Yes |
| Remote control | Yes (Bluetooth) |
| Filter type / access | Dual bag filter with access under the cleaner |
Technical Specifications Zodiac Arco Pool Cleaner
*Scroll horizontally to view the complete table.
| Number of engines | 3 |
|---|---|
| Control box supply | 110-240 VAC ; 50 / 60 Hz |
| Power supply | 24 VDC |
| Power consumption | 150 W |
| Cable length / Hose length | 30 m |
| Dimensions of the cleaner (L x W x H) | 43 x 43 x 54 cm |
| Weight of the cleaner | 9 kg |
| Filter capacity | 3.1 kg |
| Max. depth | 5 m |
| Suction inlet size/cleaning width | 40 cm |
Included accessories
- Trolley
- Control unit
- Capacitive control box
- Double bag filter
- Free Bluetooth application
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27th. See conditions in the Warranty Document.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls as nerves, including steps of the pool.
