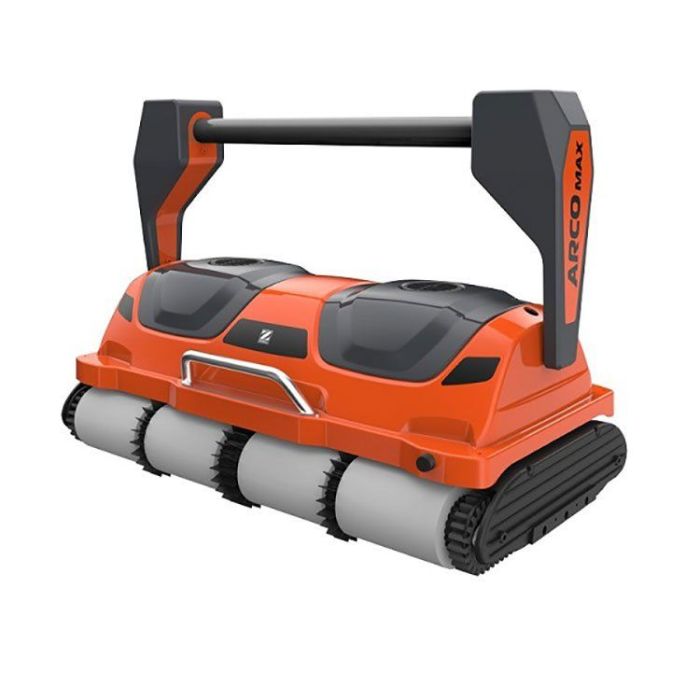

Zodiac Arcomax public swimming pool cleaner
Pool cleaner for medium and large public pools in sports centers, community pools, hotels, etc. with rigid walls and up to 50 m length with an ultra-powerful suction level.
It has
infrared sensor to detect walls and obstacles and traction system reinforced with bearings for intensive use.
Zodiac Arcomax Public Pool Cleaner
This pool cleaner has been specifically designed for public pools, which means it can handle large volumes of water and large surface areas without losing efficiency.
The pool cleaner for professional use in medium to large public pools up to 50 meters found in swimming and sports centers, as well as in community pools, hotels and campgrounds.
Equipped with an advanced infrared sensor, the Arcomax pool cleaner has the ability to detect walls and obstacles in its path. This allows for precise navigation and avoids collisions, ensuring that the cleaner can effectively maneuver around your pool.
Thanks to its gyroscope and intelligent navigation system with compass, this model can plan optimal cleaning routes. It avoids unnecessary repetition and ensures complete coverage of your pool, saving time and energy.
The Zodiac ArcoMax Pool Cleaner for public pools is a powerful cleaning solution that stands out for its ultra-powerful suction. This device has been specially designed to meet the demanding cleaning needs of large public pools.
In addition to its automatic mode, the Arcomax Pool Cleaner includes a remote control for manual control. This allows you to direct the cleaner to specific areas that require special attention or to perform spot cleaning according to your needs.
Types of pools: Medium sized public pools (sports centers, community pools, hotels, etc.) with rigid walls and up to 50 m in length.
Pool shapes: Rectangular
Bottoms: Flat, gentle slope, compound slope, diamond shape.
Pool surfaces: Gresite, liner, polyester shell,reinforced PVC, painted concrete.
Features Zodiac Arcomax
*Scroll horizontally to view the full table
| Cleaning zones | Bottom / walls / water line |
|---|---|
| Number / Duration of cleaning cycles | Multiple with preset cycles: - Floor mode: floor - Wall and floor mode: floor, walls and waterline - Delayed start: the start of both cleaning modes can be postponed for up to 3 h |
| Delayed start | Yes, up to 3 years |
| Power supply | Autonomous, connected to 230V |
| Displacement | Preprogrammed |
| Traction system | Bearing mechanism - 2 motors |
| Transmission | Belt drive with reinforced components |
| Pressure sensor | Yes |
| Brushes | PVA |
| Complete filter indicator | Yes |
| Remote control | Yes (Bluetooth) |
| Filter type / access | Double bag filter with access under the cleaner |
Technical Specifications Zodiac Arco Pool Cleaners
*Scroll horizontally to view the complete table.
| Number of engines | 3 |
|---|---|
| Control box supply | 110-240 VAC ; 50 / 60 Hz |
| Power supply | 24 VDC |
| Power consumption | 150 W |
| Cable length / Hose length | 40 m |
| Dimensions of the cleaner (L x W x H) | 80 x 43 x 54 cm |
| Weight of the cleaner | 18 kg |
| Filter capacity | 5.1 kg |
| Max. depth | 5 m |
| Suction inlet size/cleaning width | 80 m |
Included accessories
- Trolley
- Control unit
- Capacitive control box
- Double bag filter
- Free Bluetooth application
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27th. See conditions in the Warranty Document.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls as nerves, including steps of the pool.
