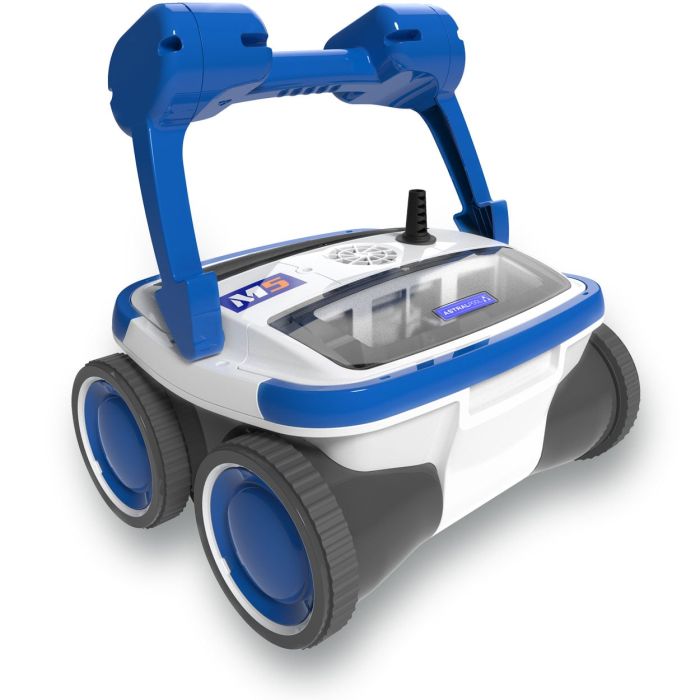

AstralPool M5 Pool Cleaner
- Astralpool M5 robotic pool cleaner with 4-wheel drive for thefor cleaning the bottom and walls of swimming pools up to 10 X 5 meters.
RECONDITIONED EQUIPMENT
Brand new and unused equipment.
The reason for classifying it as "reconditioned" is that during transport or exhibition it has suffered some small scratches on the casing. Serial No.: 1802000089
- Cleaning cycle of 2 hours.
- It incorporates 16 meters of cable with electronic Swivel anti-tangle system.
Manuals
AstralPool M5 Pool Cleaners Catalogue
M Series User Manual
Video
Comparison of Astralpool Pool Cleaner Range
*Scroll horizontally to view the full table
R3 | R5 | |||
Code | 70652 | 66666 | 70650 | 67981 |
Depth/Half-round | Yes | Yes | Yes | Yes |
Walls | No | No | Yes | Yes |
Waterline | No | No | Yes | Yes |
Cleaning cycle (h) | 1,5/h | 1,5/h | 2/h | 2/h |
Aquasmart | Yes | Yes | Yes | Yes |
Gyro navigation system | Yes | Yes | Yes | Yes |
Possibility of external programmer | Yes | Yes | Yes | Yes |
Pool length (m) | 8 | 8 | 10 | 10 |
Obstacle detection | Yes | Yes | Yes | Yes |
Floating cable length | 16m | 16m | 16m | 16m |
Swivel | Yes (electronic) | Yes (mechanical) | Yes (electronic) | Yes (mechanical) |
Transport Trolley | No | No | No | No |
Suction flow rate | 22 m3/h | 22 m3/h | 22 m3/h | 22 m3/h |
Filter Type | Top access - easy view 3D | Top access - easy view 3D | Top access - easy view 3D | Top access - easy view 3D |
Rotary brushes | Lower central | Lower central | Lower central | Lower central |
Adjustable suction nozzle | Yes | Yes | Yes | Yes |
Robot weight without filters (kg) | 6.4 kg | 6.4 kg | 6.4 kg | 6.4 kg |
Motor block | Dual Platform 1+1 | Dual Platform 1+1 | Dual Platform 1+1 | Dual Platform 1+1 |
Traction motor | 24V DC | 24V DC | 24V DC | 24V DC |
Suction motor | 24V DC | 24V DC | 24V DC | 24V DC |
Four-wheel drive 4WD | Yes | Yes | Yes | Yes |
Wheels | Yes (PVA) | Yes (PVA) | Yes (PVA) | Yes (PVA) |
Power supply | Basic SPS | Basic SPS | Basic SPS | Basic SPS |
Electrical specifications | 100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
100-250 V/ 50-60 Hz 210 W |
Warranty | 2 years | 2 years | 3 years | 2 years |
Price | 599 € | 699 € | 749 € | 799 € |
Cleaner M5 AstralPool
The new 4 x 4 pool robot
It is supplied with an AquaSmart guided system that ensures that it covers most of the pool's surface on the floor and walls, maximizing cleaning efficiency with an ACTIVE brush.
It includes the Gyro electronic system to prevent the 16 meters of floating cable from deteriorating due to possible knots that may be caused during cleaning cycles and to further optimize the performance of this robot model.
The Astralpool M5 pool cleaner with 4×4 traction for residential pools. Elegant and with an exceptional design, the M5 robot removes dirt from both the bottom and the walls of the pool thanks to GYRO intelligence and its effective active brushing system that scrubs dirt from any surface.
It is characterized by its excellent design, light weight and easy removal of its 3D Ultrafine filters with top access. Thanks to the transparent filter covers you can easily see when the filters need to be washed. You can clean them in a much easier way without coming into contact with dirt.
It operates in a 2-hour cycle and incorporates 16 m of self-floating cable, electronic swivel thanks to the GYRO system and height-adjustable suction nozzles to ensure perfect adaptation to any environment.
Features
- 3D ultrafine filter. It incorporates 3D ultrafine filters as standard for greater particle retention.
- Easy view. With transparent windows that allow easy viewing of accumulated dirt.
- Bottom rotating brush. Extra brushing for more active cleaning of the pool surface.
- Easy open. Easy access to the filters from the top of the robot.
- Clean hands. No need to come into contact with dirt to clean the filter.
- PVA wheels. Maximum quality and optimum adherence for your 4WD traction.
- Height adjustable suction nozzles. Maximum suction in all types of coatings.
- Electronic swivel, thanks to the Gyro system that avoids twisting and tangling of the cable.
- Gyro technology. New intelligent navigation system that guarantees the best displacement for pool cleaning.
4WD all-terrain pool cleaner robot.
Thanks to its 4 driving wheels, the Astralpool M5 pool cleaner robot has a great adherence to the floor and walls of the pool.
It adapts to all types of liners and overcomes obstacles more easily.
Navigation and scanning system
What is the AquaSmart System
Traditional pool cleaners clean the pool by scanning the surface randomly and without any working pattern.
With the introduction of the Aquasmart cleaning system, the cleaners are able to parameterize and memorize the pool surface through a mathematical algorithm, optimizing the operation and guaranteeing the brushing of the pool surface.
What is the Gyro System
Gyro is an intelligent algorithm created by Aquatron to improve the robot's navigation and maximize its efficiency.
New intelligent navigation system that guarantees the cleaning of the pool. It avoids all kinds of obstacles and cable winding.
Main benefits:
- Efficiency in the surface to be cleaned.
- Programmed turning patterns to avoid cable entanglement.
- Created to improve the robot's navigation and maximize its efficiency, Aquatron has launched Gyro System the new intelligent algorithm.
- Located in the Gyro robot's management circuitry it has the functions similar to an electrical gyroscope like the latest mobile devices.
- Electric Robot Equipped with DUAL PLATFORM + power + efficiency + reliability.
Motor block
The Dual Platform is an innovative system that unifies in the same block a suction motor and a traction motor, to replace the classic traction system with belts, thus extending the life of the robot and facilitating the care and maintenance tasks of the equipment.
Advantages
- More efficient cleaning.
- Improved power transmission.
- More effective active brush.
- More durability: no drive belts and improved motor seals.
- Improved capabilities: suction motor, traction motor + Gyro system.
- Facilitates maintenance tasks.
- Extends the life of your robot.
SKU Referenced:
- 70650
Warranty information
Manufacturer's warranty of 2 years + 1 additional Ferromar warranty for motors, transformer and cable according to your conditions.
*We cannot guarantee the correct operation of the equipment both in the bottom and in the wall rise as long as the pH level is not the correct one, and a total cleaning of the tank has not been previously carried out*.
-
