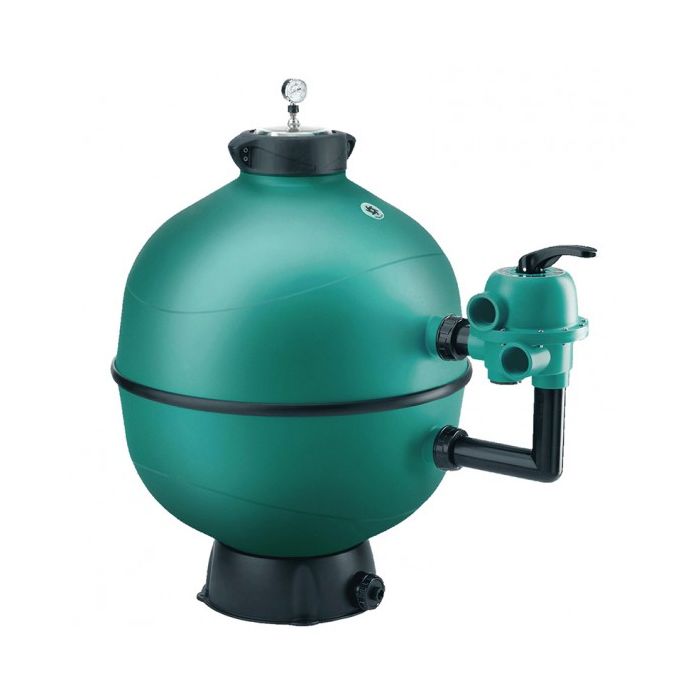

ESPA Filterkit Plus Sand Filter
€229.00
Out of stock
SKU
Filtro de arena ESPA Filterkit Plus
Filterkit Plus is the new ESPA sand filter for in-ground pool water purification.
Injected in high-strength PP with the two halves thermally welded together.
Available from Ø 520 to 760 mm for pools with a water volume up to 176 m3.
ESPA Filterkit Plus Sand Filter
Equipped with 6-way selector valve in lateral position, pressure gauge and air purge.
Transparent cover for easy visual inspection of the filter interior.
Features and benefits
- Operating pressure 2.5 bar; maximum pressure 3.5 bar.
- Connection with 6-way valve 1½" for models Ø 520 and 620 mm; 2" for models Ø 760 mm.
- Equipped with pressure gauge and air vent.
- Double drainage at the bottom of the filter: 1½" for total emptying of the filter; 1/2" for emptying the water without loss of sand.
- Transparent cover for easy inspection of the filter in side version.
- Maximum working pressure 5 bar.
| Filterkit Plus | Model | Filter | |||
|---|---|---|---|---|---|
| Code | Filter Ø [mm] [mm |
QL nom. [m3/h] [m3/h |
* Vol. pool [m3] |
Flint load [kg] [kg] |
|
| 130906 | FKP 520 6LT | 520 | 10 | 80 | 75 |
| 130907 | FKP 620 6LT | 620 | 15 | 120 | 150 |
| 130908 | FKP 760 6LT | 760 | 22 | 176 | 300 |
(*) Pool volume (m3): calculated from the ideal flow rate for 8 hours of recirculation.
