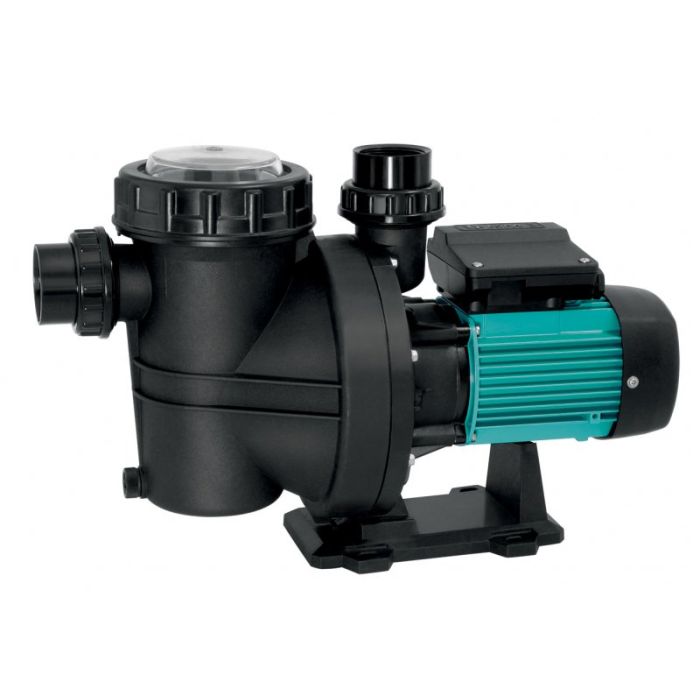

Espa Iris Pump
ESPA's Iris pump is a self-priming single-stage centrifugal pump with built-in pre-filter, characterized by its silent operation. Its application is the recirculation and filtration of water in small and medium size pools. Suction and discharge Ø connections: Ø 50 mm glue fittings.
Manuals
User manual Espa Bomba Iris
Dimension sheet Espa Bomba Iris
Espa Bomba Iris exploded view sheet
Range comparison
| Iris 500 | Iris 750 | Iris 1000 | |
|---|---|---|---|
| Power | ⅓ HP | ½ HP | 1 HP |
| Code | 96855 | 96859 | 96849 |
| Power supply | Single phase | Single-phase | Single phase |
| Protection index | IP 55 | IP 55 | IP 55 |
Espa Iris Pump
ESPA's Iris pump is a self-priming single-cell centrifugal pump with built-in pre-filter, which is characterized by its silent operation. Its application is the recirculation and filtration of water in small and medium size pools.
Suction and discharge Ø connections: Ø 50 mm glue fittings.
Available in 3 models:
- Iris 500 (code 96855)
- Iris 750 (code 96859)
- Iris 1000 (code 96849)
Materials
- Pump body, pump foot, impeller, seal support and diffuser in technopolymer.
- Motor shaft in stainless steel AISI 420
- Mechanical seal in graphite and aluminum oxide
- Aluminum motor housing
Motor
- Totally enclosed, IP 55 protection, with external ventilation
- Single-phase 1 x 230 V, with built-in thermoamperimetric protector and corresponding condenser.
Warranty information
2 years warranty according to manufacturer's conditions.
-
