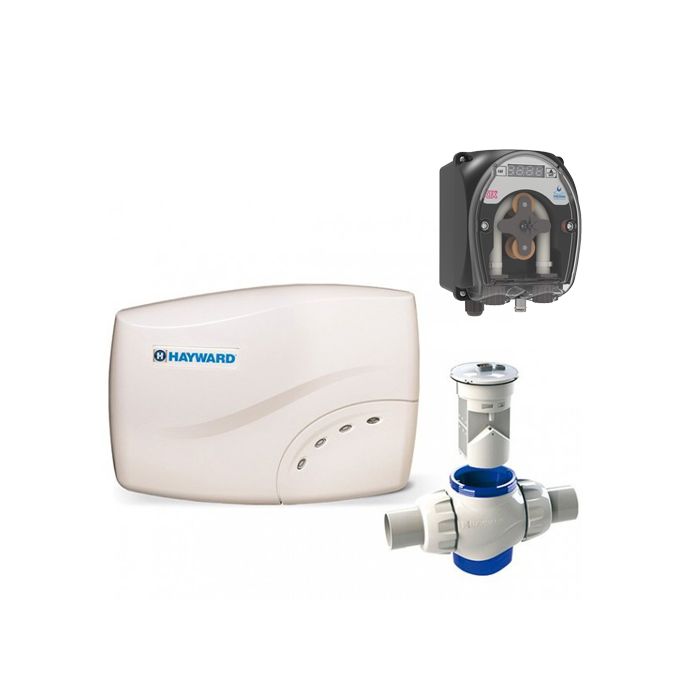

Hayward Salt & Swim Salt Chlorinator + pH Pump
Video
Manuals
User manual Hayward Salt & Swim
Hayward Salt & Swim Catalog
Hayward Salt & Swim salt water chlorinator for pools up to 90 m (200 ft)3
Salt & Swim is a new salt chlorinator system from Hayward, for pool owners who want to put an end to complicated maintenance. Developed specifically for private family pools, Salt & Swim satisfies pool owners who spend a lot of time and energy treating and maintaining their pool. Salt & Swim is the easiest and most effective for healthy and soft pool water. Salt & Swim, a chlorinator for comfort.
No chloramine production for guaranteed bathing comfort, no itchy eyes, no skin irritation and limited allergies. Stand-alone installation in 20 minutes with no tools, no chemical handling.
Easy maintenance, a simple element to change, at a cost equal to that of conventional treatment and a peace of mind.
- Easy to use control box, Salt & Swim has a very precise chlorine production capacity, the box supports the conversion of salt into chlorine to provide unmatched water quality. Using Salt & Swim represents a cost of use similar to using traditional chemicals, while providing convenience and unmatched ease of use.
- Cell All-in-one cell for an integrated temperature sensor and flow sensor installation. Ultra-easy replacement, minimal maintenance
- Connection Easy to install and space-saving, suitable for any type of configuration.Installation possible in horizontal, vertical, or inclined position to suit smaller environments.
Technical features
*Scroll horizontally to view the complete table.
| Maximum vessel volume | 50/90 m3 | Versatile, a single reference for all pools |
|---|---|---|
| Chlorine production | 15/22g/h | Excellent production |
| Salinity | Minimum 3g/l | Low salinity required |
| Accessories | 50 or 63 mm section 25cm mini | Easy installation in a few minutes |
| Minimum flow rate | 5 m3/h | Operation possible with low speeds or variable speed pumps |
| Flow sensor | Magnetic system integrated into the cell | No additional installation required |
| Cell position | Horizontal, vertical or inclined | Can be adapted to any location Self-cleaning cell, by polarity inversion every 3 hours. Limited cell maintenance |
| Superchlorination | Yes | For a thorough disinfection during hot periods or during the highest pool attendance. |
| Low temperature protection | Yes | Reduction of production below 15° and 10° Active cell protection and prevents overchlorination in cold water |
| Production regulation | From 0% to 100% in 10% increments | Precise treatment management |
Ctx pHpro pH Regulator and Membrane pH Dosing Pump
The pHpro is an easy-to-use instrument, consisting of a peristaltic pump and electronics, capable of measuring and regulating the chemical-physical values of a swimming pool, such as pH and oxide-reduction potential (mV).
The pump is able to operate in ON/OFF mode, i.e. it doses for the period of time necessary to reach the Setpoint, or in Proportional mode. The peristaltic pump, whether in ON/OFF or proportional mode, always doses if the measured value remains more than 0.4pH (MyPOOL pH) or 30mV (MyPOOL RX) from the programmed Setpoint, or switches to time-pause mode if the difference is less, provided that the proportional mode has been programmed.
pHpro factory settings
*Scroll horizontally to display the complete table.
| Setpoint | 7.2pH |
|---|---|
| Mode | On/Off |
| Intervention | ACID |
Factory settings pHpro: Setpoint= 700mV; mode = ON/OFF; intervention: OXIDATION OVERDOSAGE ALARMS: In addition to monitoring the Acidity/Alkalinity and Oxide-reduction parameters, the PHPRO range of instruments is able to control the maximum operating time of the peristaltic.
The electronics internally have been designed to handle a peristaltic activation time that can vary from 0 to 240 minutes maximum (a value equal to zero is equivalent to disabling the overdose alarms). If the programmed threshold is exceeded, the control electronics will block the peristaltic if it is operating.
This will prevent overdoses caused by problems such as electrode breakage, electrode malfunction, tube fracture or setpoint calibration errors.
The instrument is also equipped with an LED to signal overdose alarms.
Warranty information
Warranty: 2 years from the manufacturer for the chlorinator and ph pump except ph probe according to its conditions.
