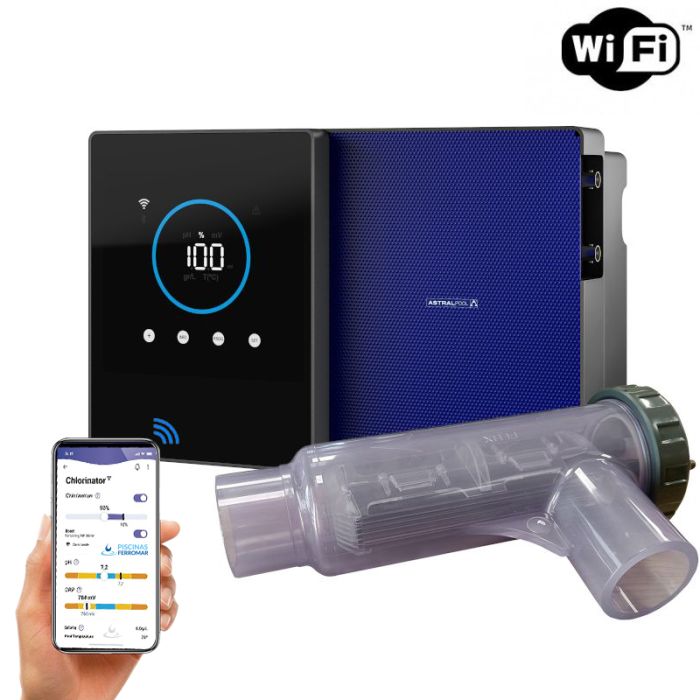

Salt chlorinator Clear Connect Scalable AstralPool
AstralPool's innovative Clear Connect Scalable salt chlorinator for the natural disinfection of water in pools up to 160 m3, equipped with Bluetooth and WiFi connectivity for remote control with the Fluidra Pool app.
Chlorine production 7, 12, 21, 21, 30, 40 gr/h
Possibility to complement the equipment with the pH Kit and ORP Kit.
Manuals
Clear Connect AstralPool Salt Chlorinator Technical Data Sheet
Salt chlorinator Clear Connect Scalable AstralPool
AstralPool's innovative Clear Connect Scalable salt chlorinator is an advanced solution for natural water disinfection in pools up to 160 m3.
A salt chlorinator is a device used in pools to automatically generate chlorine from the salt dissolved in the water. This process eliminates the need to add chlorine directly to the pool, as the salt chlorinator produces the disinfectant continuously.
Designed with the latest technology, the Clear Connect Scalable salt chlorinator stands out for its Bluetooth and WiFi connectivity, allowing unprecedented remote control through the Fluidra Pool app.
Kit pH, includes products intended to measure and adjust the pH level in a pool treated with salt chlorinator. Maintaining a proper pH level is crucial to ensure optimal operation of the chlorinator and to guarantee the quality of the water in the pool.
The ORP kit is essential for those looking to maintain proper sanitizer levels in their pool or spa water. By monitoring the ORP, the amount of sanitizer, such as chlorine or bromine, can be adjusted to ensure a safe and comfortable environment.
Technical Features Saline Chlorinator
| Water salinity/temperature analysis | Yes / Yes |
|---|---|
| Polarity reversal | Yes (adjustable + test mode) |
| Boost mode / Cover mode | Yes (100 % for 24 h) / Yes (adjustable from 20 to 80 %) |
| Flow controller | Yes (gas sensor, optional flow switch, code 76780) |
| Production rate | IPX4 |
| Connectivity / Application | Bluetooth and wifi: remote control with the Fluidra Pool app. |
| Electrode durability | 8-10 000 h |
| pH dosing (optional) | Integrated peristaltic pump, 1.5 L/h, with overdosing safety feature |
| pH, reduction and oxidation sensors (optional) | Plastic body, 12 mm diameter, pH sensor in platinum / ORP sensor in gold |
Clear Connect AstralPool Scalable Salt Water Chlorinator Models
Chlorinator available in 5 different models adapting to the needs of your pool.
| Name | Clear Connect 7 Scalable | Clear Connect 12 Scalable | Clear Connect 21 Scalable | Clear Connect 30 Scalable | Clear Connect 40 Scalable |
|---|---|---|---|---|---|
| Code | 76775 | 76776 | 76777 | 77019 | 77020 |
| Chlorine production | 7 gr/h | 12 gr/h | 21 gr/h | 30 gr/h | 40 gr/h |
| Pool volume | 30 m3 | 50 m3 | 90 m3 | 120 m3 | 160 m3 |
Dimensions Clear Connect Scalable Chlorinator
Clear Connect Chlorinator Installation
Warranty Information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
