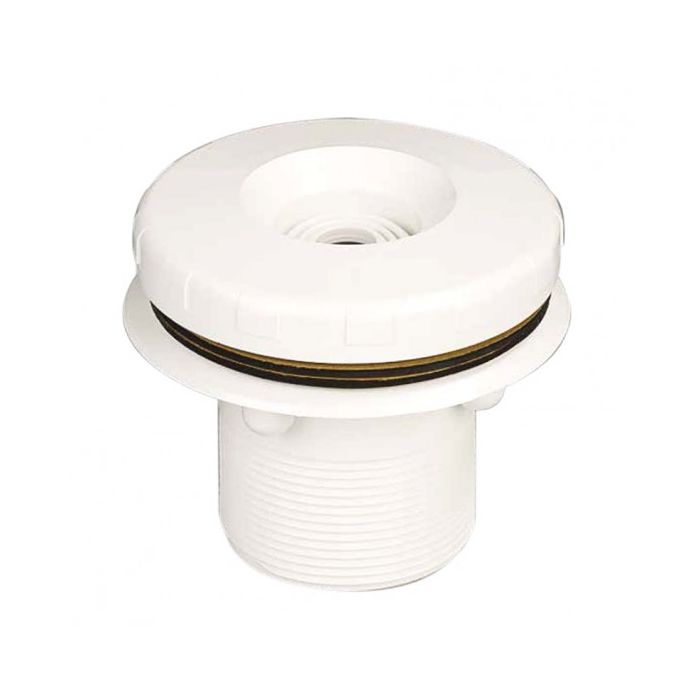

AstralPool Parker Parker Multiflow liner discharge nozzle

• Outer thread 2", inner Ø 50 mm.
• Recommended installation with wall bushing 15664.
• ABS white color.
• Multiflow System. The nozzle ball is supplied pre-marked with a series of diameters (14-20 and 25). With the help of a punch, one of the diameters can be selected at the time of installation.
• Maximum recommended flow rate for a maximum flow velocity of 4 m/s, according to EN 13451-1:
• Ø 14 mm = 3 m3/h
• Ø 20 mm = 5 m3/h
• Ø 25 mm = 7 m3/h

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
