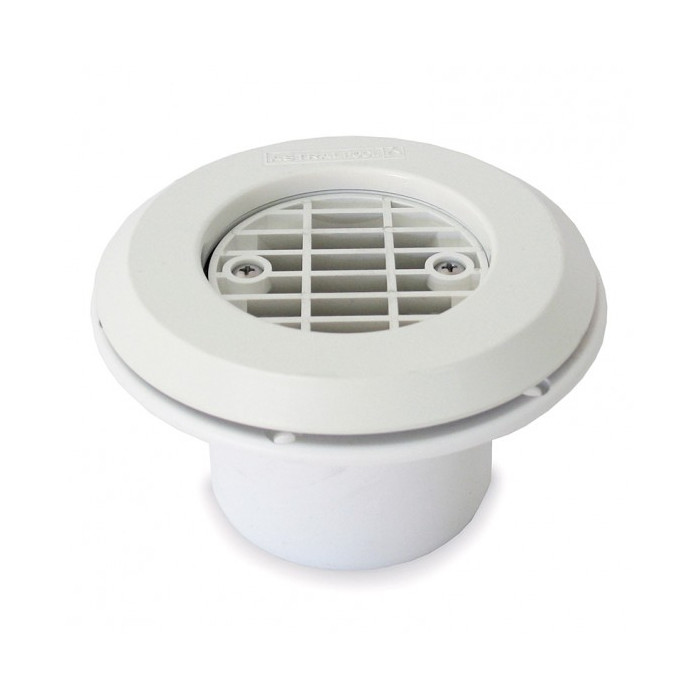

High flow rate suction/discharge nozzle for liner and prefabricated pools

• High flow rate nozzle specially designed for liner or prefabricated pools.
• Can also be used as a suction nozzle.
• Maximum flow rate 30 m3/h for a maximum flow velocity of 4 m/s according to EN 13451-1.
• Maximum suction flow rate 5 m3/h for a maximum flow velocity of 0.5 m/s according to EN 13451-1.
• PVC body.
• Connection for pipe Ø 75 or Ø 90 mm.
• The nozzles can be installed on the wall bushing pipe 43590.
• The grille can be swiveled in any direction.

Available in the following models:

• 41518 - Panel pool.
• 41521 - Prefabricated pool.

Warranty information

3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th.
