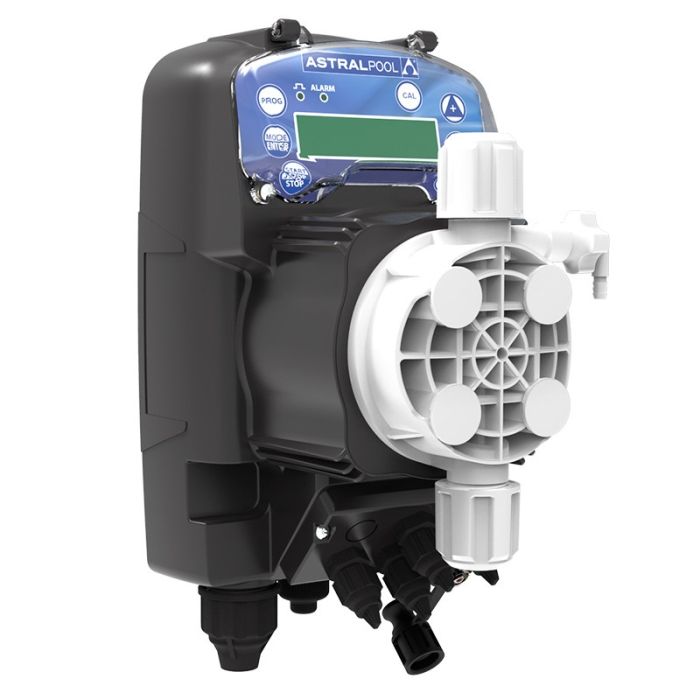

AstralPool Acqua Dos digital pH/ORP control dosing pump
€790.00
In stock
Only %1 left
SKU
C-75078
Free Shipping
Best Price Online
The Acqua Dos series digital dosing pump with built-in pH/Redox meter adds to its functions, the ability to interface with a PLC using the Modbus protocol.
The pump is supplied without metering probes.
Available in 3 models with different flow rates.
Manuals
Instruction manual AstralPool Acqua Dos digital dosing pump pH/ORP control
AstralPool Acqua Dos digital dosing pump pH/ORP control data sheet
AstralPool Acqua Dos digital dosing pump pH/ORP control
Digital dosing pump with pH/ORP control meter of the AstralPool Acqua Dos series.
Constant or proportional dosing according to the pH or ORP value measured (probes not included).
Other functions of the dosing pump Acqua Dos:
- Constant or proportional dosing according to the measured pH or ORP value.
- PT100 probe input for thermal compensation
- Repeat alarm relay
- On/off input for remote control
- 4 ÷ 20 mA output for measurement transmission
Technical Characteristics AstralPool Acqua Dos digital dosing pump
- Flow rates: from 4 to 110 l/h (depending on the model).
- Maximum back pressure: up to 16 bar
- Power supply: 100÷240 Vac - 50/60 Hz
- Displacement rate: from 160 to 300 strokes / minute (depending on the model).
- Pump head in PVDF for high chemical compatibility.
- Diaphragm: PTFE
- Outer casing: glass fiber reinforced PP
- Degree of protection: IP65
- Manual priming valve for start-up.
- Installation kit included:
- PVDF foot filter.
- PVDF injection valve.
- PVC suction pipe (4 meters).
- PE delivery pipe (2 meters).
- Wall mounting bracket.
*Scroll horizontally to view the complete table.
| Code | Pump type | Pressure (bar) |
Flow rate (l/h) |
Imp/min | cc/imp | Connection | Power supply | Consumption | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Aspiration | Impulsion | Min. | Max. | |||||||
| 75078 | Type B NN | 12 | 4,0 | 160 | 0,42 | 4/6 | 4/6 | 100÷240 Vac | 17,0 | 22,0 |
| 10 | 5,0 | 0,52 | ||||||||
| 8 | 6,0 | 0,63 | ||||||||
| 2 | 8,0 | 0,83 | ||||||||
| 75080 | Type C NN | 16 | 7,0 | 300 | 0,39 | 4/6 | 4/6 | 100÷240 Vac | 22,0 | 33,0 |
| 10 | 10,0 | 0,56 | ||||||||
| 5 | 15,0 | 0,83 | ||||||||
| 1 | 18,0 | 1,00 | ||||||||
| 75082 | Type D NN | 5 | 20,0 | 300 | 1,11 | 8/12 | 8/12 | 100÷240 Vac | 29,0 | 37,0 |
| 4 | 32,0 | 1,78 | ||||||||
| 2 | 62,0 | 3,44 | ||||||||
| 0 | 110,0 | 6,11 | ||||||||
Dimensions of AstralPool Acqua Dos dosing pump
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th. See conditions in the Warranty Document.
