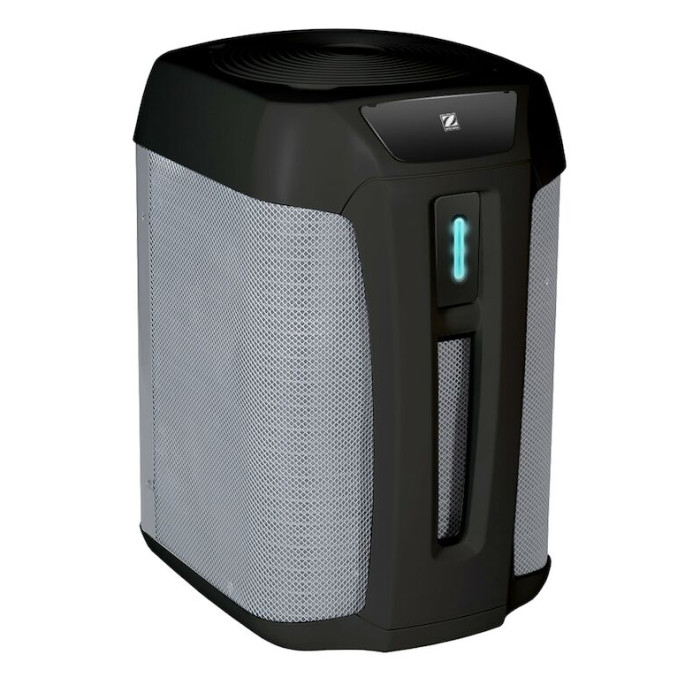

Zodiac Z550iQ Heat Pump
The Zodiac Z550iq heat pump is an excellent choice for pool heating, and its compact design makes it especially versatile in terms of installation. This heat pump can be installed next to virtually any pool, regardless of its size or shape.
Thanks to the Fluidra Pool app for mobile devices, you have the ability to remotely configure and monitor the various operating modes of the heat pump.
Manuals
Zodiac Z550iQ heat pump catalog
Quick Guide Zodiac Z550iQ Heat Pump
Zodiac Z550iQ Heat Pump Installation Manual
Zodiac Z550iQ heat pump warranty
Zodiac Z550iQ
heat pumpThe Z550iQ heat pump is an exceptional choice for heating your pool. One of its highlights is its ability to operate effectively in all seasons, especially in models with a defrost function. This means that regardless of weather conditions, the Z550iQ can keep your pool water temperature at a comfortable and comfortable level
.In addition, the Z550iQ offers an extra feature that makes it even more versatile: the ability to switch between heating and cooling modes for your pool. This means you can enjoy warm water in the cooler months and refreshing water in the warmer months. The reversible heating/cooling function gives you total control over the temperature of your pool, ensuring that it is always at the desired temperature, no matter the season
.
For what type of pools?
| For inground, semi-inground and above ground pools. |  |
| For both outdoor and indoor pools up to 110 m3 (110 m3) |  |
| Compatible with any type of water treatment |  |
Inverter technology
The operating speed is adapted according to the required power and the selected mode:
- Boost: maximum power for fast heating
- Smart: automatic power adjustment according to the temperature
- Eco-quiet: greater energy savings and lower noise levels
Adaptable to small spaces
One of the key advantages of the Zodiac Z550iq is its small size compared to standard heat pump sizes. This makes it ideal for placement in tight spaces, which can be especially beneficial if you have space limitations in your pool area. Its compact and versatile design allows for convenient and hassle-free installation.
Built-in connectivity
Through your mobile device, you can configure and monitor the Z550iQ heat pump's various modes of operation from anywhere. Plus, once connected, the Z550iQ can receive continuous upgrades through automatic remote updates.
Zodiac Z550iQ Features
- Automatic cooling mode.
- Vertical air outlet.
- Anti-corrosion polypropylene housing.
- Quick and easy installation.
- Direct power supply (220V).
- Digital display (LED).
- Built-in WiFi with App i Aqualink.
- Silent and economical.
- Conditions of use Air 28ºC / Water 28ºC / Humidity 80%.
- Includes protective cover.
*Scroll horizontally to view the complete table.
| Model | MD4 | MD5 | TD5 | MD8 | TD8 |
|---|---|---|---|---|---|
| Reference | WH000365 | WH000366 | WH000367 | WH000368 | WH000369 |
| Operating conditions: Air 28°C / Water 28°C / Humidity 80%. | |||||
| Maximum power input (kW) | 12.5 - 7.9 | 15 - 7.6 | 15.5 - 7.1 | 20 - 10.8 | 20 - 11.2 |
| Power consumption (kW) | 2 - 1.05 | 2.5 - 1.05 | 2.4 - 0.65 | 3.6 - 1.55 | 3.5 - 1.55 |
| Average COP | 6.1 - 7.6 | 5.9 - 7.4 | 6.6 - 10.9 | 5.5 - 7 | 5.8 - 7.7 |
| Operating conditions: Air 15°C / Water 26°C / Humidity 70% - NF FOC Certification | |||||
| Maximum power input (kW) | 9.5 - 5.5 | 11.5 - 5.8 | 15 - 7.8 | 15 - 8.2 | |
| Power absorbed (kW) | 1.9 - 0.95 | 2.5 - 1.1 | 2.4 - 0.8 | 3.7 - 1.65 | 3.1 - 1.4 |
| Average COP | 4.9 - 5.7 | 4.6 - 5.4 | 4.9 - 7.2 | 4.1 - 4.9 | 4.9 - 6 |
| Technical specifications | |||||
| Power supply | 230V/1/50Hz | 400V/3/50Hz | |||
| Hydraulic connection | 1/2 50 Ø PVC adhesive couplings | ||||
| Quantity of refrigerant (kg) | 1,30 | 1,50 | 1,50 | 2,40 | 2,60 |
| Weight(kg) | 54 | 60 | 60 | 70 | 70 |
| Dimensions L x W x H (mm) | 610 x 670 x 980 | ||||
| Average COP/ speed mx-min | 6,1 - 7,6 | 5,9 -7,4 | 6,6 - 10,9 | 5,5 - 7 | 5,8 - 7,7 |
Warranty information
3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th. See conditions in the Warranty Document.
