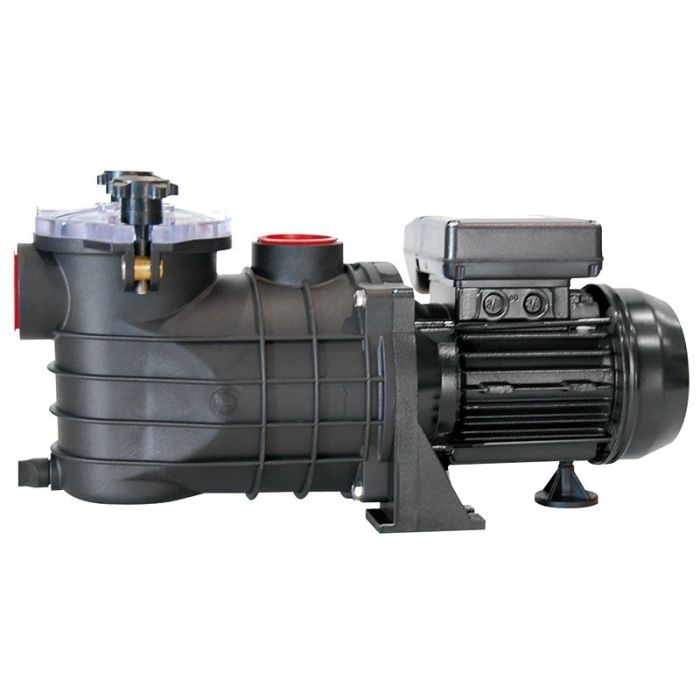

PSH Micro self-priming pump
€159.00
In stock
SKU
Bomba autoaspirante PSH Micro
Best Price Online
The PSH Micro model is a self-priming centrifugal pump suitable for installation in small or removable pool filtration systems.
Available in several models according to power.
Manuals
PSH Micro Self-Priming Pump Technical Data Sheet
PSH Micro self-priming pump
Self-priming centrifugal pump of the manufacturer PSH for swimming pool filtration equipment.
Features PSH Micro self-priming pump
- It is available in powers from 0.25 HP to 0.5 HP with single-phase motors.
- Suitable for operation with salt chlorinators or seawater.
- Thermal protection included for maximum safety.
- Includes 1 meter long cable.
- High quality mechanical seal and bearings for durability.
- Transparent cover of simple handling that facilitates the maintenance of the pump.
- Pre-filter basket incorporated in the pump body.
- Insulation class: F
- Protection: IP55
- Motor: 50 Hz / 2900 rpm
Materials Micro Pump
- Pump body: polypropylene 30% fiberglass
- Impeller and diffuser: noryl reinforced with 30% glass fiber
- Pre-filter basket: polypropylene
- Shaft: stainless steel AISI 420
- Mechanical seal: carbon+resin-ceramic
Part numbers: 1MIC0020M2V, 1MIC0030M2V, 1MIC0050M2V
*Scroll horizontally to view the complete table.
| Model | Power | Capacitor | II | Flow rate (m³/h) according to manometric head (m) | Nozzles | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CV | kW | μF | 230V A | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | Input | Output | kg | |
| MICRO-25 | 1/4 | 0,20 | 10 | 1,1 | 5,5 | 4,9 | 4,4 | 3,6 | 2,6 | 1,6 | - | - | - | 1½" | 1½" | 6,4 | MICRO-33 | 1/3 | 0,25 | 10 | 1,7 | 9,3 | 8,6 | 8,0 | 7,0 | 6,1 | 5,5 | 4,2 | 2,8 | - | 1½" | 1½" | 7,4 |
| MICRO-50 | 1/2 | 0,37 | 12,5 | 2,4 | 12,1 | 11,0 | 10,0 | 9,2 | 8,2 | 7,2 | 6,2 | 4,6 | 2,8 | 1½" | 1½" | 8,0 |
Warranty information
Warranty 2 years according to manufacturer's conditions.
