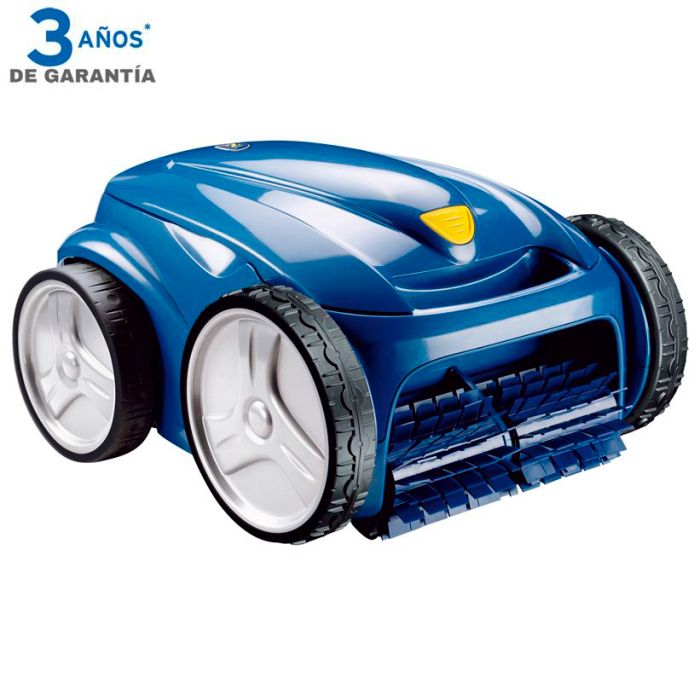

RV 4200 Zodiac RV 4200 Cleaner
The RV 4200 pool cleaner guarantees perfect cleaning on a large scale. Thanks to its extra wide suction mouth and its filter with a capacity of 5 liters, the cleaner can vacuum and store all types of debris with maximum comfort of use. In addition, it maintains suction power throughout the entire cycle.
RV 4200 Zodiac RV 4200 Cleaner Instructions Manual
RV 4200 Zodiac RV 4200 Cleaner
Ultra-powerful and constant cyclonic suction
Thanks to the inclined position of the suction motor and the hydraulic flow generated, Zoaidac engineers have created the first cyclonic suction pool cleaners.
Vortex™ technology creates a high-powered vortex inside the filter that keeps dirt in suspension, preventing it from sticking to the filter walls and clogging.
- Pool type: Private inground or above ground pools with rigid walls, up to 10 x 5 m.
- Shapes: rectangular, oval,round and free-form.
- Backgrounds: flat, gentle slope, compact slope, diamond point.
- Coatings: liner, polyester hull, reinforced PVC, painted concrete.
Description RV 4200 Zodiac
- Cleaning area: Bottom / walls / water line
- Number / Duration of cleaning cycles: 1 cycle (Bottom / Walls / Water line) / 2h30.
- Power source: Autonomous connected to 230 V
- Displacement: Preprogrammed
- Drive system: 2 wheel drive
- Transmission: Gears
- Brushes: Yes
- Lift System: No
- Filter full indicator: No
- Remote control: No
- Transport trolley: Optional
- Ultra-fine filter 60μ: Optional
- Safety: Beach system, automatic out-of-water shutdown, diagnostics, electronic motor protection.
- Large capacity XXL rigid filter (5L) accessible from the top of the cleaner.
Technical Data RV 4200 Zodiac
| Number of motors | 3 |
|---|---|
| Dimensions of the cleaner ( L x W x H ) | 43x48x27 cm |
| Weight of the cleaner | 9,5 kg |
| Filtering surface | 1280 cm². |
| Cleaning coverage | 27 cm |
| Cable length | 15 m |
| Pump flow rate | 16 m3/h |
| Control system | Yes |
| Control system supply voltage 200-240 VAC | 50 Hz |
| Cleaner supply voltage | 30 VDC |
| Power consumption | 150 W |
Accessories included:
- Control unit
- Fine debris filter 100μ
- Support for control unit
Optional accessories:
- Very fine debris filter 60μ
- Fine debris filter 100μ
- Coarse residue filter 200μ
- Protective sleeve
- Transport trolley
Comparison of Zodiac OV cleaner range
*Scroll horizontally to view full table
 |
 |
 |
 |
|
| Zodiac OV 3400 | Zodiac OV 3480 | Zodiac OV 3505 | Zodiac RV 4200 | |
|---|---|---|---|---|
| Code | WR000024 | WR000166 | WR000152 | WR000003 |
| Swimming Pools Measurement | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 10 x 5m |
| Cleaning Area | Background, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
| Cleaning Cycles | 1 | 2 | 6 | 1 |
| Drive Wheels | 2 | 2 | 2 | 2 |
| Filter Full Indicator | No | Yes | No | No |
| Remote Control | No | No | Yes | No |
| Cable length | 18 m | 18 m | 18 m | 15 m |
| Transport trolley | Yes | Yes | Yes | Optional |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years |
Warranty Information
3-year manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.
