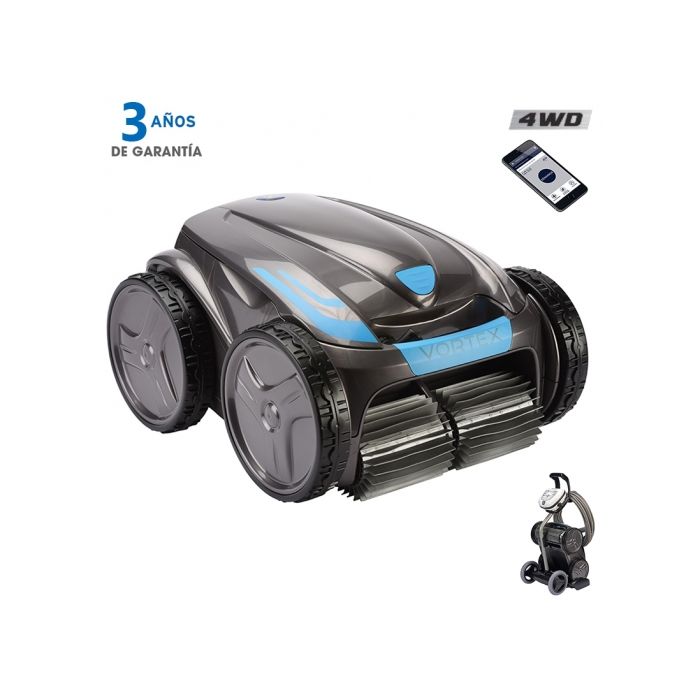

Zodiac OV 5480 iQ
Manuals
For what type of pools?
- Types of pools: private in-ground or above-ground pools with rigid walls.
- Shapes: rectangular, oval and free-form shapes.
- Backgrounds: flat, gentle slope, compound slope, diamond point.
- Pool size: 12 x 6 m
- Cleaning areas: Bottom / walls / water line.
- Number / Duration of cleaning cycles:
- Multiple cycles (from 0h30 to 3h30).
- Deep cleaning" background
- Bottom/walls/waterline - Waterline - Power source Stand-alone, connected to 230V
- Displacement: Preprogrammed
- Brushes: Yes (contact + brushes)
- Lift System: Yes
- Filter complete indicator: Yes
- Remote control mode : By Application
- Swivel device: Prevents cable tangling
The Connected Pool Cleaner, iAqualink AppTM
Maximum performance with ultra-powerful and constant cyclonic suction
Zodiac® has patented the cyclonic suction and have been the first to create the first pool cleaners on the market with this type of suction.
Thanks to the creation of a high-powered whirlpool that originates inside the robot's filter.The dirt is kept in suspension, thus preventing it from sticking to the walls of the filter's filter. OV5480iq avoiding clogging and potentially improving the performance of the cleaning cycle.
All-terrain cleaner thanks to its 4-wheel drive.
The Robot OV5480iq is equipped with 4 wheel drive that allow the cleaner a perfect adherence to the walls of the pool, and thanks to this feature it is able to clean the walls of the pool.to adapt to any type of lining and to overcome obstacles more easily..
Integrated Contecnivity thanks to iAqualink application
On Ov5480iq robot is fully controllable via the iAqualinkTMmakes everyday life easier. In addition, thanks to the Zodiac's patented Lift System makes it easier to remove the cleaner. thanks to a powerful rear water jet that is activated as soon as the cleaner comes out of the water.
Lift System
18M cable with Swivel
Included Accessories
Filter Full Indicator
Indicates when the filter needs to be emptied.
Control Unit
Filter
100μ fine debris filter.
Trolley
Technical Characteristics OV5480iq
| Number of motors | 3 |
| Dimensions of the cleaner | (L x W x H) 48 x 43 x 43 x 27 cm |
| Filter Capacity | 5 L |
| Weight of cleaner | 9,5 kg |
| Cable length | 18 m with Swivel |
| Filtering Surface / Filtration Level | 1180 cm² / 100μ |
| Cleaning coverage | 24,5 cm |
| Control system supply voltage | 30 VDC |
| Supply voltage of the box | 200-240 V AC; 50 Hz |
| Drive System | 4-wheel drive |
| Transmission | Gears |
| Security | Beach system, automatic out-of-water shutdown, electronic motor protection. |
Comparison of the Zodiac OV pool cleaner range
*Scroll horizontally to view the complete table.
 |
 |
 |
 |
 |
 |
|
| Zodiac OV3400 | Zodiac OV3480 | Zodiac OV3505 | Zodiac OV5200 | Zodiac OV5300 | Zodiac OV5480iq | |
| Code | WR000024 | WR000166 | WR000152 | WR000223 | WR000162 | WR000264 |
| Swimming Pools Measurement | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m |
| Cleaning Area | Background, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
| Cleaning Chilos | 1 | 2 | 6 | 2 | 2 | Multiple Cycles |
| Drive Wheels | 2 | 2 | 2 | 4 | 4 | 4 |
| Filter Full Indicator | No | Yes | No | No | Yes | Yes |
| Remote Control | No | No | Yes | No | No | Yes, via App |
| Cable length | 18 m | 18 m | 18 m | 18 m | 18 m, with swivel | 18 m, with swivel |
| Warranty | 2 years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years |
*The correct functioning of the equipment cannot be guaranteed both at the bottom and on the walls if the pH level is not correct, if there is slime or algae, or if the filters are clogged by excess dust, and if the tank has not been previously completely cleaned, or if there are irregular surfaces on the walls such as steps or ribs*.
Warranty information
3-year warranty on motors, transformer and cable depending on their condition.
