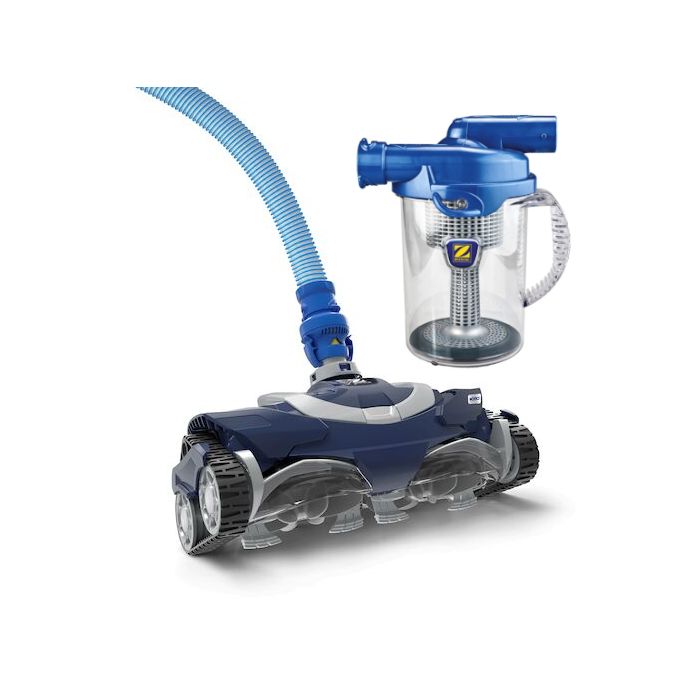

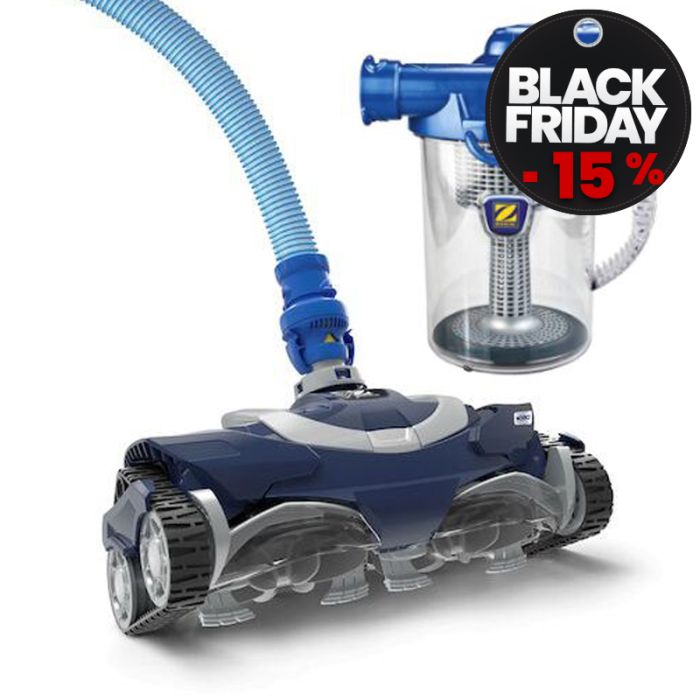

Zodiac MX10 with leaf prefilter
The Zodiac MX10 Automatic Hydraulic Pool Cleaner with Leaf Prefilter, the latest model in pool cleaners, is the perfect choice for those with pools measuring up to 12x6 meters.
Manuals
Zodiac MX10 Catalog
Zodiac MX10 Installation Manual
Zodiac MX10 Quick Start Guide
Zodiac MX10 Warranties
This pool cleaner includes a leaf pre-filter and not only keeps the pool floor clean but also effectively cleans the walls, ensuring crystal-clear water and an optimal swimming environment. The Zodiac MX10 features notable improvements compared to previous models, making it an even more attractive option for pool owners:
- Improved tracks.
- Motor fin support assembly for more efficient suction.
- New ergonomic design.
Zodiac MX10 features a leaf pre-filter
Turbo Suction
The Zodiac MX10, our flagship pool cleaner, is equipped with an advanced turbo suction system that incorporates a powerful suction turbine and two propellers with brushes, working together to precisely direct dirt and debris toward the device’s intake. This ensures extremely effective cleaning, even under conditions of reduced water flow.
Cyclonic Brushing
Thanks to the innovative cyclonic brushing technology, the MX10 pool cleaner can loosen embedded debris before vacuuming it up. The device’s active brushes are capable of effectively removing any type of debris, including stubborn algae that clings to the bottom and walls of the pool.
X-Drive Preprogrammed Navigation System
With the advanced X-Drive preprogrammed navigation system, the MX10 follows a methodical path that covers every area of your pool, ensuring flawless coverage, regardless of your pool’s shape or bottom type.
Zodiac MX10 Technical Specifications
Hose length: 12 sections of 1 m
Pool Cleaner Dimensions (L x W x H): 41 x 19 x 22 cm
Package Dimensions (L x W x H): 102 x 23 x 37 cm
Pool cleaner weight (head): 3.4 kg (Weight with packaging: 9.5 kg
Filtration capacity: Pool filtration circuit
Cleaning coverage: 36 cm
Minimum required filtration pump power: 3/4 HP
Travel speed: 8 m/min
Pool types
Pool types: in-ground and above-ground pools with rigid walls up to 12 x 6 m
Shapes: rectangular, oval, and free-form
Bottoms: flat, gently sloped, and compound slope
Finishes: mosaic tile, liner, polyester shell, reinforced PVC, painted concrete
Included accessories
- Leaf pre-filter
- Cyclonic cleaning brushes
- Twist Lock hoses
- 45° elbow
- Tapered adapter
- Automatic flow regulator
- 45° extension
- Automatic flow control valve (skimmer)
Warranty information
3-year manufacturer’s warranty in accordance with Royal Decree-Law 7/2021, dated April 27.
*Proper operation of the equipment cannot be guaranteed—either at the bottom or along the pool walls—if the pH level is incorrect, if the pool contains slime or algae, or if the filters become clogged due to excessive dust, and a thorough cleaning of the pool has not been performed beforehand, in addition to any pool with irregular wall surfaces such as steps or ridges, or insufficient pump power depending on the lining *
