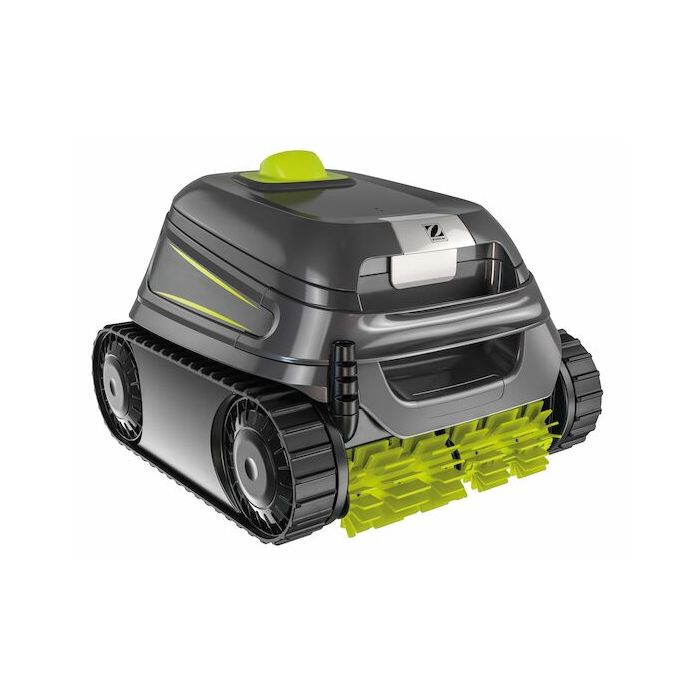

Zodiac CNX 1020 Electric Pool Cleaner

Zodiac CNX 1020 Electric Pool Cleaner

These state-of-the-art electric pool cleaners are designed to provide thorough and efficient cleaning of the pool floor, walls, and waterline. Thanks to Zodiac technology, they can collect everything from large debris, such as leaves, to finer particles, such as sand, ensuring that the water remains crystal clear at all times.

Its advanced, patented cyclonic suction system provides powerful, long-lasting suction, maintaining consistent performance even under demanding conditions. In addition, the helical-shaped brushes, combined with a wide suction area and a 4-liter filter, allow for highly effective capture of debris of all sizes.

The pool cleaner’s agile movement is ensured by integrated smart sensors and a unique design that optimizes its movement in the water. It adapts perfectly to all types of in-ground pools as well as above-ground pools with rigid walls, pools up to 9x4 m regardless of their shape or the material of the pool bottom and linings—whether mosaic tile, liner, polyester shell, reinforced PVC, or painted concrete.

In addition to their extraordinary suction power, these devices stand out for their easy access to the filter, which simplifies cleaning and maintenance, ensuring optimal performance at all times.

For what type of pool is it recommended?

For in-ground and above-ground (elevated) pools with rigid walls
Any type of pool
All Pool Bottoms and Linings
For use in pools up to 9 x 4 M
Cleaning the bottom, walls, and waterline

Features and Technical Specifications:

• Cyclonic suction
• Helical-shaped green brushes
• For pools up to 9x4 m
• Cleaning area: Bottom / walls / waterline
• Number / Cleaning cycle duration: 1 cleaning cycle (bottom / walls / waterline) lasting 2 hours
• Power source: self-contained, connected to 230 V via a transformer
• Caterpillar drive system: 2-wheel drive
• Brush cleaning coverage: 23 cm
• Lift System: no
• Filter full indicator: no
• Remote control: no
• Safety: beach system, with automatic shut-off when out of the water and electronic motor protection
• Filter access from the top of the pool cleaner
• Number of motors: 3
• Control system supply voltage: 200–240 V - 50/60 Hz
• Power supply voltage for the pool cleaner: 30 VDC
• Power consumption: 150 W
• Cable length: 15 m
• Filter surface area: 1066 cm2
• Filter capacity: 4 liters

Accessories Included with the Pool Cleaner

Control Unit

For starting or stopping the robot.

Rectangular filter

100μ filter ideal for both small and large particles: leaves, dirt, or pine needle debris.

Base

Protects and houses the control unit, preventing direct contact with the ground.

Warranty Information

3-year manufacturer’s warranty in accordance with Royal Decree-Law 7/2021, dated April 27.
