Zodiac RV 5470 4WD Electric Pool Cleaner
For what type of pools?
- Types of pools: private in-ground or above-ground pools with rigid walls.
- Shapes: rectangular, oval and free-form shapes.
- Backgrounds: flat, gentle slope, compound slope, diamond point.
- Pool size: 12 x 6 m
- Cleaning areas: Bottom / walls / water line.
- 2 cleaning cycles:
- Bottom only (1h 30 min).
- Bottom, walls and water line (2h 30 min) - Energy source Stand-alone, connected to 230V Mains supply from transformer
- Displacement: Preprogrammed
- Brushes: Yes (Contact + brushes)
- Lift System: Yes
- Filter complete indicator: Yes
- Remote control mode : No
- Swivel device: Yes. Prevents cable tangling
RV 5470 4WD Robot Filter, top access, easy to clean.
Maximum performance with its ultra-powerful and constant cyclonic aspiration
Zodiac® has patented the cyclonic suction and have been the first to create the first pool cleaners on the market with this type of suction.
Thanks to the creation of a high-powered whirlpool that originates inside the robot's filter.The dirt is kept in suspension, thus preventing it from sticking to the walls of the filter. Zodiac RV 5470 avoiding clogging and potentially improving the performance of the cleaning cycle.

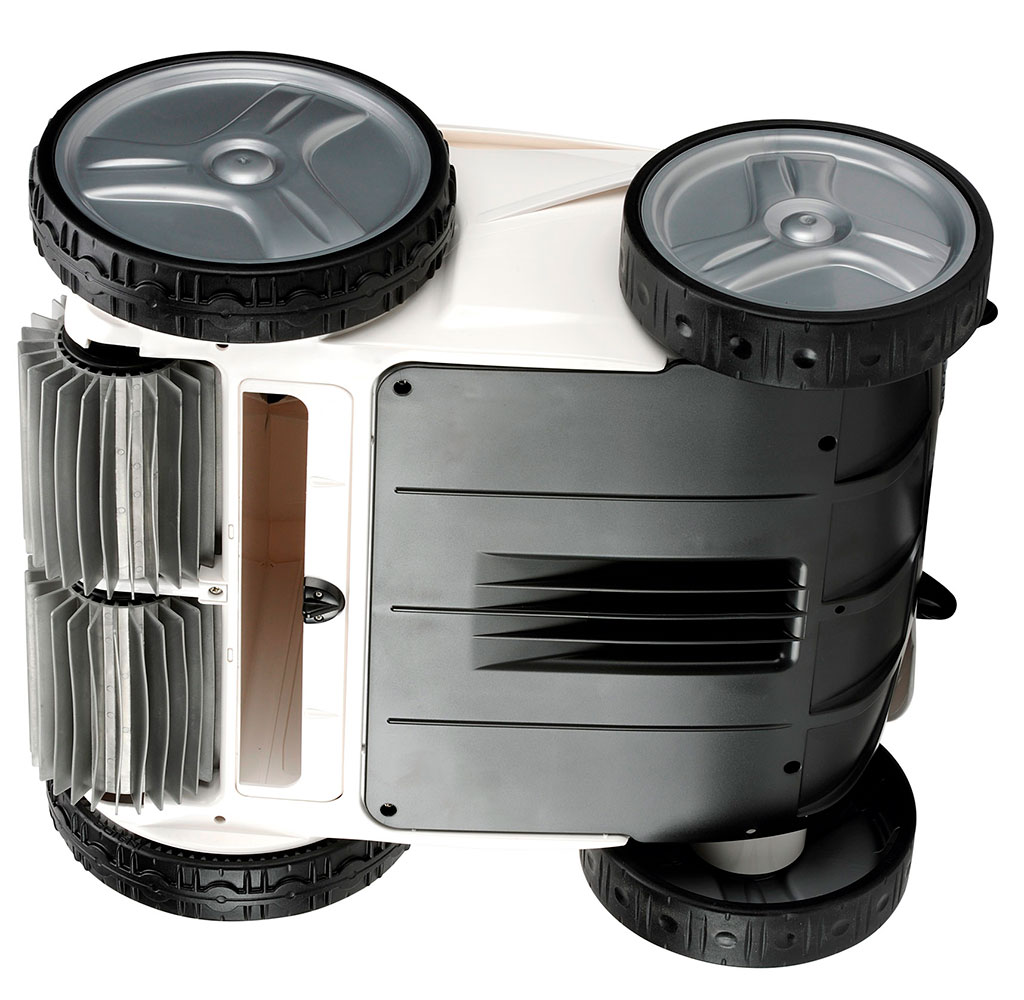

All-terrain cleaner thanks to its 4-wheel drive.
The Zodiac RV 5470 is equipped with 4 wheel drive that allow the pool cleaner to perfectly adhere to the pool walls, and thanks to this feature it is able to to adapt to any type of lining and to overcome obstacles more easily..
High suction capacity
The RV 5470 can guarantee a perfect cleaning on a large scale.. Thanks to its extra wide suction mouth and its filter with a capacity of 5 liters, the cleaner can vacuum and store all types of debris with maximum comfort of use. In addition, it maintains suction power throughout the entire cycle.
Included Accessories
Filter Full Indicator
Indicates when the filter needs to be emptied.
Control Unit
Filter
100μ fine debris filter.
Trolley
Optional Accessories for the RV 5470 Zodiac RV 5470 cleaner
Request information if you are interested:
Very fine debris filter 60μ, Fine debris filter 100μ, Coarse debris filter 200μ and Protective cover.
Technical features
| Number of motors | 3 |
| Dimensions of the cleaner | (L x W x H) 43 x 48 x 48 x 27 cm |
| Filter Capacity | 5 L |
| Weight of cleaner | 9,5 kg |
| Filtering Surface / Filtration Level | 1180 cm² / 100μ |
| Cleaning coverage | 24,5 cm |
| Cable length | 18 m with Swivel |
| Cleaning Cycles |
1h30 (bottom only) 2h30 (bottom, walls and waterline ) |
| Traction System | 4 driving wheels |
| Transmission | Gears |
| Security | Beach system, automatic out-of-water shutdown, electronic motor protection. |
Comparison of the Zodiac OV pool cleaner range
*Scroll horizontally to view the complete table.
 |
 |
 |
 |
 |
 |
|
| Zodiac OV 3480 | Zodiac OV 3505 | Zodiac OV 5200 | Zodiac RV 5470 | Zodiac OV 5300 SW | Zodiac OV 5480 iQ | |
| Code | WR000166 | WR000152 | WR000223 | WR000108 | WR000162 | WR000264 |
| Swimming Pools Measurement | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m |
| Cleaning Area | Background, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
| Cleaning Chilos | 2 | 6 | 2 | 2 | 2 | Multiple Cycles |
| Drive Wheels | 2 | 2 | 4 | 4 | 4 | 4 |
| Filter Full Indicator | Yes | No | No | Yes | Yes | Yes |
| Remote Control | No | Yes | No | No | No | Yes, via App |
| Cable length | 18 m | 18 m | 18 m | 18 m, with swivel | 18 m, with swivel | 18 m, with swivel |
| Swivel | No | No | No | Yes | Yes | Yes |
| Lift System | No | No | No | Yes | No | Yes |
| Warranty | 3 years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
Warranty Information
3-year manufacturer's warranty according to Royal Decree Law 7/2021, April 27th.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the glass, in addition to any pool with irregular surfaces on the walls as nerves, including steps of the pool.
