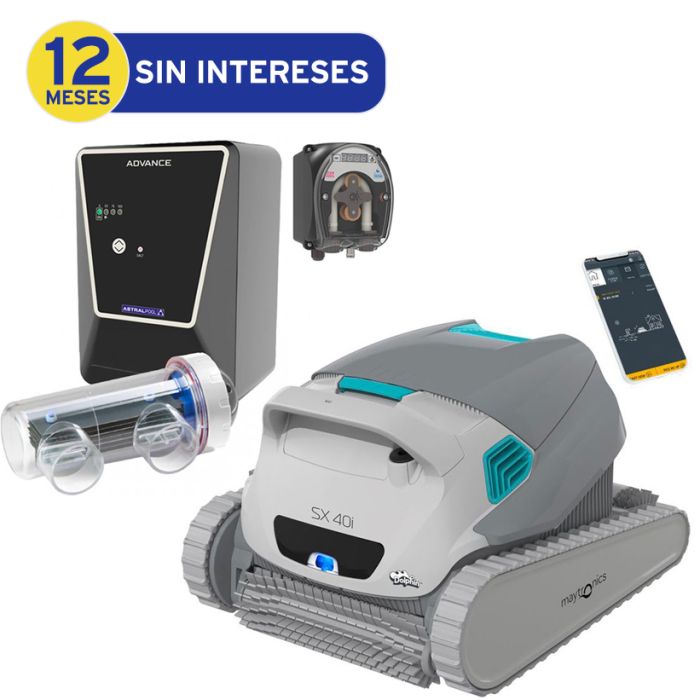

Dolphin SX 40i pool cleaner + advance salt water chlorinator + pH pump
Kit including Dolphin SX 40i robot pool cleaner + advance salt water chlorinator + pH pump.
The Advance chlorinator is available in 3 different models 12gr, 21gr, 30gr and 40gr adapting to the needs of your pool.
Dolphin SX 40i Specifications
| Pool Length | Ideal for pools up to 12 m (40 ft.) in length. |
| Cleaning Coverage | Floors, Walls and Waterline |
| Brushing | Brush + Active Brushing |
| Cleaning Cycle | 1 / 1,5 / 2 / 2,5 hours |
| Filtration | Multi-layer filtration system with integrated fine and ultrafine filters that separates and filters coarse, fine and ultrafine dirt. |
| Trolley | Including |
| Swivel | Yes |
| Weight | 7,5 Kg |
| Cable length | 18 m |
| Negagecation and maneuverability | PowerStream multidirectional system |
| MyDolphinTM Plus app | Control your robot from anywhere |
| Warranty | 3 years |
Warranty Information
3-year manufacturer's warranty on motors, transformer and cable according to your conditions.
*The correct functioning of the equipment cannot be guaranteed both in the bottom and in the wall rise as long as the pH level is not correct, and a total cleaning of the tank has not been previously carried out*.
Salt Electrolysis Installation
Astralpool E-Next Salt Chlorinator and Cell Dimensions
Warranty information
* 3 years from the manufacturer according to Royal Decree Law 7/2021, April 27, except ph probe, according to its conditions.
Video Presentation Dolphin SX Cleaners
This video refers to the Dolphin SX 30 model.
Manuals
Advance Salt Chlorinator and pH Pump Manuals
Comparison of Dolphin SX Range
*Scroll horizontally to view full table
 |
 |
 |
 |
 |
|
| SX10 | SX20 | SX30 | SX35 | SX40i | |
| Ideal Pool Length | 8 m | 10 m | 12 m | 12 m | 12 m |
| Cable length | 12 m | 15 m | 18 m | 18 m | 18 m |
| Swivel | No | No | No | Yes | Yes |
| Cycle Time | 1.5 hours | 2 hours | 2 hours | 2 hours | 1.5 / 2 / 2.5 hours |
| Cleaning Coverage | Floor and half cane | Floor and Walls | Floor, Walls and Float Line | Floor, Walls and Waterline | Floor, Walls and Float Line |
| Cleaning Options | Standard | Standard | Standard | Standard | Floor only, floor and walls and walls only |
| Power supply | ON/OFF | ON/OFF | ON/OFF | ON/OFF | IOT + Weekly programmer, Fast cycle selector, Time delay |
| Filtration | 90 micron basket | Basket with filter 90 microns | Combined spring and ultra fine basket + 2 ultra fine baskets | Combined basket spring and ultra fine + 2 ultra fine | Multilayer filtration |
| Trolley | No | No | No | Yes | Yes |
| MyDolphin AppTM Plus | No | No | No | No | Yes, complete (WIFI & BL) |
| Warranty | 2 years | 2 Years | 2 Years | 2 Years | 3 Years |
Comparison of Astralpool Advance Chlorinators Range
*Scroll horizontally to view the complete table.
 |
|
|
|
|
| Advance 12 | Advance 21 | Advance 30 | Advance 40 | |
| Reference | 74540 | 74541 | 74542 | 74543 |
| Maximum Chlorine Production | 12 g/h | 21 g/h | 30 g/h | 40 g/h |
| Number of Plates | 5 | 7 | 11 | 13 |
| Volume of water | 50 m³ | 90 m³ | 140 m³ | 180 m³ |
| Cell life span (under optimal conditions) |
Tech grade: 8000 to 10,000 hours | |||
| Electrical voltage | 230 V / 50 / 60 Hz | |||
| Fuse | 2 A | |||
| Amperage | 0,4 A | 0,4 A | 0,8 A | 0,9 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | |||
| Water Temperature | Max. 40 ºC | |||
| Polarity inversion | Yes (2-3h) | |||
| Production Control | 0 / 50 / 75 / 100% | |||
| Flow detection (gas) | Yes | |||
| Cover Production Control | Yes (Decrease of production to 10%) | |||
| Salt Level Alarm | Yes | |||
| Pipe connection | PVC adhesive Ø 63 mm | |||
| Maximum authorized pressure in the cell | 2,75 bar (KPa) | |||
| Protection index | IP45 | |||
