Dolphin SX 30 pool cleaner + advance salt water chlorinator + pH pump

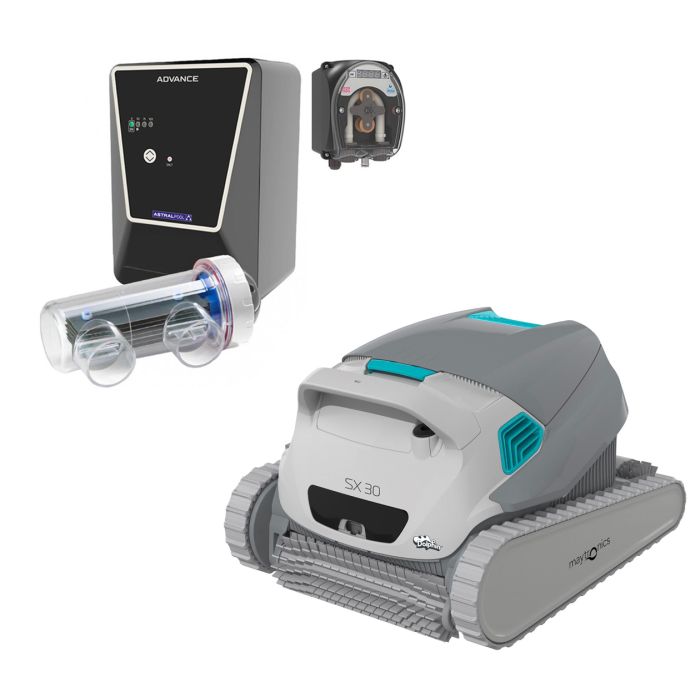

Kit including Dolphin SX 30 robot pool cleaner + advance salt water chlorinator + pH pump.
The Advance chlorinator is available in 3 different models 12gr, 21gr and 30gr adapting to the needs of your pool.
Dolphin SX 30 Specifications
| Pool Length | Ideal for pools up to 12 m (40 ft.) in length. |
| Cleaning Coverage | Floors, Walls and Waterline |
| Brushing | Brush + Active Brushing |
| Cleaning Cycle | 2 hours |
| Filtration | Interchangeable fine and ultrafine filters, remove dirt, debris and algae |
| Weight | 7,5 Kg |
| Cable length | 18 m |
| Negagecation and maneuverability | PowerStream scanning system |
| Warranty | 2 Years |
Warranty Information
2-year manufacturer's warranty for motors, transformer and cable according to your conditions.
*The correct functioning of the equipment cannot be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, and a total cleaning of the tank has not been previously carried out*.
Salt Electrolysis Installation
Astralpool E-Next Salt Chlorinator and Cell Dimensions
Warranty information
*3 years from the manufacturer according to Royal Decree Law 7/2021, April 27, except ph probe, according to its conditions.
Video Presentation Dolphin SX Cleaners
Manuals
Advance Salt Chlorinator and pH Pump Manuals
Comparison of Dolphin SX Range
*Scroll horizontally to view complete table
 |
 |
 |
 |
 |
|
| SX10 | SX20 | SX30 | SX35 | SX40i | |
| Ideal Pool Length | 8 m | 10 m | 12 m | 12 m | 12 m |
| Cable length | 12 m | 15 m | 18 m | 18 m | 18 m |
| Swivel | No | No | No | Yes | Yes |
| Cycle Time | 1.5 hours | 2 hours | 2 hours | 2 hours | 1.5 / 2 / 2.5 hours |
| Cleaning Coverage | Floor and half cane | Floor and Walls | Floor, Walls and Float Line | Floor, Walls and Waterline | Floor, Walls and Float Line |
| Cleaning Options | Standard | Standard | Standard | Standard | Floor only, floor and walls and walls only |
| Power supply | ON/OFF | ON/OFF | ON/OFF | ON/OFF | IOT + Weekly programmer, Fast cycle selector, Time delay |
| Filtration | 90 micron basket | Basket with filter 90 microns | Combined spring and ultra fine basket + 2 ultra fine baskets | Combined basket spring and ultra fine + 2 ultra fine | Multilayer filtration |
| Trolley | No | No | No | Yes | Yes |
| MyDolphin AppTM Plus | No | No | No | No | Yes, complete (WIFI & BL) |
| Warranty | 2 years | 2 Years | 2 Years | 2 Years | 3 Years |
Comparison of Astralpool Advance Chlorinators Range
*Scroll horizontally to view the complete table.
 |
|
|
|
| Advance 12 | Advance 21 | Advance 30 | |
| Reference | 74540 | 74541 | 74542 |
| Maximum Chlorine Production | 12 g/h | 21 g/h | 30 g/h |
| Number of Plates | 5 | 7 | 11 |
| Volume of water | 50 m³ | 90 m³ | 140 m³ |
| Cell life span (under optimal conditions) |
Tech grade: 8000 to 10,000 hours | ||
| Electrical voltage | 230 V / 50 / 60 Hz | ||
| Fuse | 2 A | ||
| Amperage | 0,4 A | 0,4 A | 0,8 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||
| Water Temperature | Max. 40 ºC | ||
| Polarity inversion | Yes (2-3h) | ||
| Production Control | 0 / 50 / 75 / 100% | ||
| Flow detection (gas) | Yes | ||
| Cover Production Control | Yes (Decrease of production to 10%) | ||
| Salt Level Alarm | Yes | ||
| Pipe connection | PVC adhesive Ø 63 mm | ||
| Maximum authorized pressure in the cell | 2,75 bar (KPa) | ||
| Protection index | IP45 | ||
