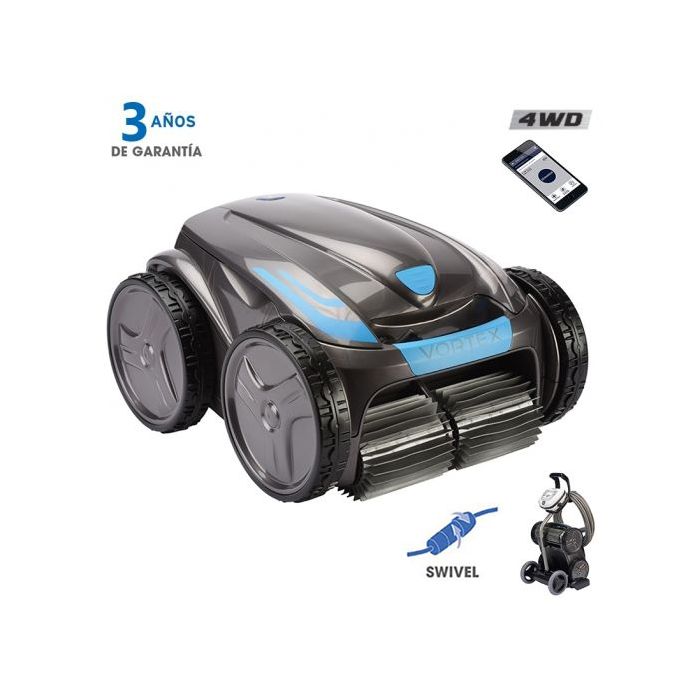

Pool cleaners Zodiac 5480 IQ
The Zodiac OV5480iq also called Connected Pool Cleaner, connects to your Wi-Fi network and is controlled from your smartphone, for total control of your pool cleaning, even remotely.
For cleaning the bottom, walls and water line of all types of pools up to 12 x 6 meters and with 18 meters of line. and with anti-flooding swivel.
Manuals
What type of pool?
- Types of pools: private inground pools or above ground pools with rigid walls
- Shapes: rectangular, oval and free-form shapes
- Fundos: flat, gentle slope, compound slope, diamond point.
- Pool size: 12 x 6 m
- Cleaning areas: Fundo / paredes / linha de água.
- Number / duration of cleaning cycles:
- Multiple cycles (from 0h30 to 3h30).
- Fundo "Deep cleaning".
- Fundo / paredes / linha de água - Linha de água - Power supply autonomous, connected to 230 V
- Location: pre-programmed
- Pincéis: Sim (contato + pincéis)
- Lift System: Sim
- Complete filter indicator: Yes
- Remote control mode: by application
- Rotating device: avoid emaranhados de cabos
Pool cleaner connected, iAqualink applicationTM
Maximum performance with its constant and ultra-powerful cyclonic suction
Zodiac® patented cyclonic suction and were the first to create the first cleaning products on the market with this type of suction.
Thanks to the creation of a of a high-powered suction system that originates from inside the filter of the robot. the fastener is kept in suspension, preventing it from adhering to the walls of the OV5480iq < / strong> avoiding clogging and potentially improving the performance of the cleaning cycle.
All-terrain cleaner thanks to its traction on 4 wheels
O Robot OV5480iq has 4 driving wheels that allow the vacuum cleaner a perfect adherence to the walls of the pool, also thanks to this feature it is capable of adapt to any type of coating and pass over obstacles more easily.
Integrated connectivity thanks to iAqualink application
O robô Ov5480iq is fully controllable through the application iAqualink TM makes day-to-day life easier. In addition, thanks to the patented function Lift System of the Zodiac, it facilitates the exit of the cleaner. thanks to a powerful rear water jet that is activated when the cleaner comes out of the water.
Lift System
18M rope with Swivel
Accessories included
Complete filter indicator
Tells us when it is necessary to empty the filter.
Control unit
Filter
fine residue 100μ.
Carrinho
Technical characteristics OV5480iq
| Number of motors | 3 |
| Cleaner dimensions | (L x W x H) 48 x 43 x 43 x 27 cm |
| Filter capacity | 5 L |
| Cleaning weight | 9,5 kg |
| Cable compression | 18 m with Swivel |
| Filtration surface / filtration level | 1180 cm² / 100μ |
| Cleaning coverage | 24,5 cm |
| Control system power supply voltage | 30 VDC |
| Power supply voltage of the box | 200-240 V AC; 50 Hz |
| Traction system | 4 driving wheels |
| Transmission | Gears |
| Security | Praia system, automatic out-of-water shutdown, electronic engine protection. |
Comparison of the Zodiac OV pool cleaner box
*Role horizontally to see the complete table
 |
 |
 |
 |
 |
 |
|
| Zodiac OV3400 | Zodiac OV3480 | Zodiac OV3505 | Zodiac OV5200 | Zodiac OV5300 | Zodiac OV5480iq | |
| Code | WR000024 | WR000166 | WR000152 | WR000223 | WR000162 | WR000264 |
| Pool measurement | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m |
| Cleaning Area | Grounds, walls and water line |
Land, walls and water line |
Land, walls and water line |
Land, walls and water line |
Land, walls and water line |
Land, walls and water line |
| Cleaning cycles | 1 | 2 | 6 | 2 | 2 | Multiple Cycles |
| Traction rollers | 2 | 2 | 2 | 4 | 4 | 4 |
| Complete filter indicator | No | Yes | No | No | Yes | Yes |
| Remote control | No | No | Yes | No | No | Yes, Through App |
| Cable Compression | 18 m | 18 m | 18 m | 18 m | 18 m, with swivel | 18 m, with swivel |
| Warranty | 2 years | 2 Years | 2 Years | 3 Years | 3 Years | 3 Years |
*The correct functioning of the equipment cannot be guaranteed in the lower part as well as in the top of the walls, if the pH level is not correct, if you find dirt or algae, or if the filters are clogged by an excess of dust, and a total cleaning of the glass has not been previously carried out, as well as of irregular surfaces on the walls, such as degrains or ribs.
Warranty information
3 years warranty for motors, transformer and cable according to their conditions.
